Perlick Corporation

Perlick Top Shelf TS Series 96-Inch Four-Compartment Underbar Sink with Dual Drainboards

SKU: TS96M4-DB
$3,198.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

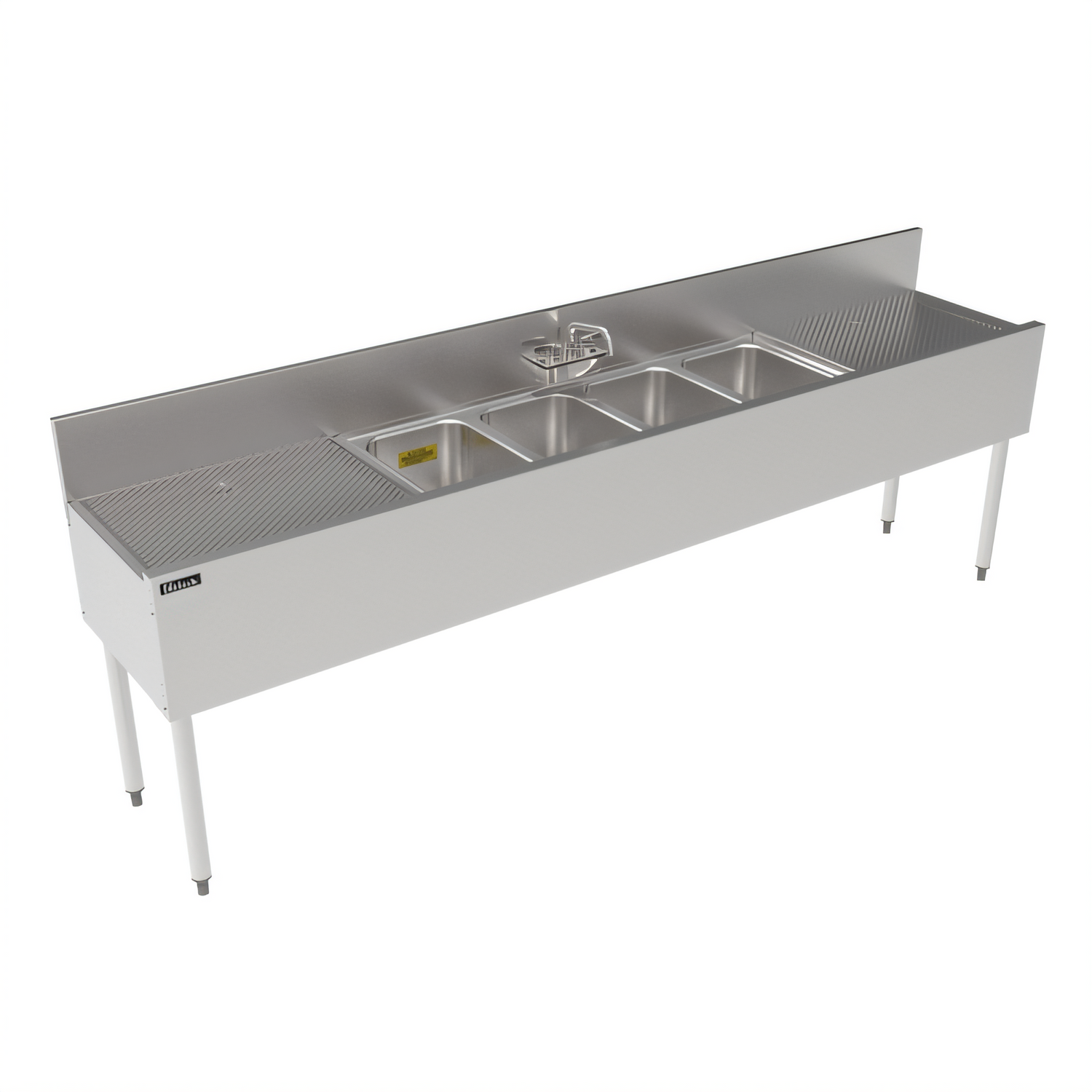

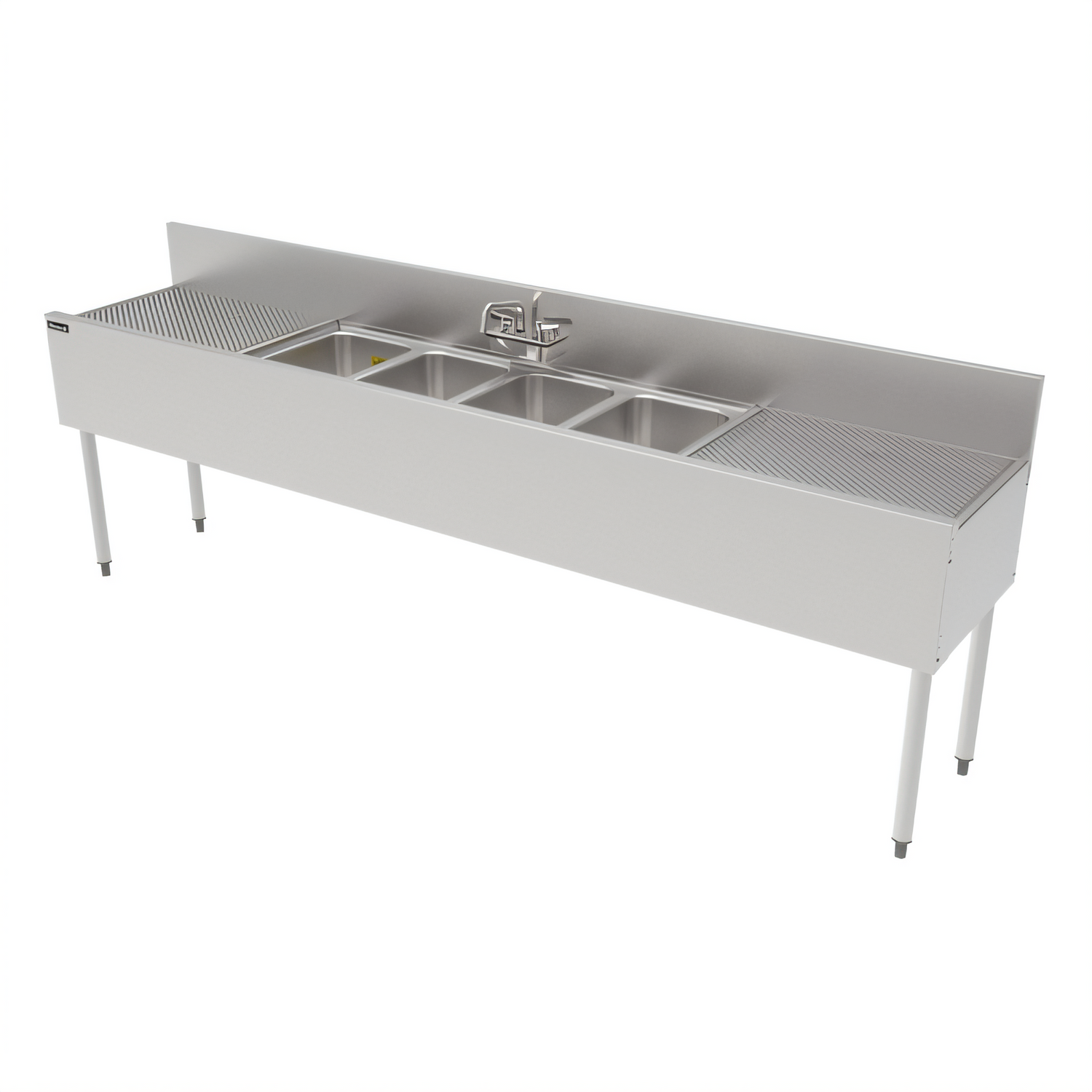

Perlick Top Shelf TS Series 96-Inch Four-Compartment Underbar Sink with Dual Drainboards

18-9/16-Inch Deep, Stainless Steel, 6-Inch Backsplash

Built for busy bars and beverage stations, this all-stainless sink combines four compartments with pitched drainboards for fast drainage and efficient workflow.

  • 96-inch-wide underbar sink with four 10" x 14" x 9-1/4" deep compartments.
  • Left and right pitched drainboards speed drainage and create staging space for glassware.
  • All-stainless construction with 18-gauge bowls and a seamless front apron for durability.
  • 6-inch stainless backsplash helps contain splashes behind the unit.
  • Includes 1-1/2" drains and 8-1/2" removable overflow standpipes.
  • Quick Clamp tool-less leg attachment and adjustable thermoplastic feet simplify installation and leveling.

Overall Dimensions:

96.0"W x 18.56"D x 36.5"H

Product Weight:

200.0 lb

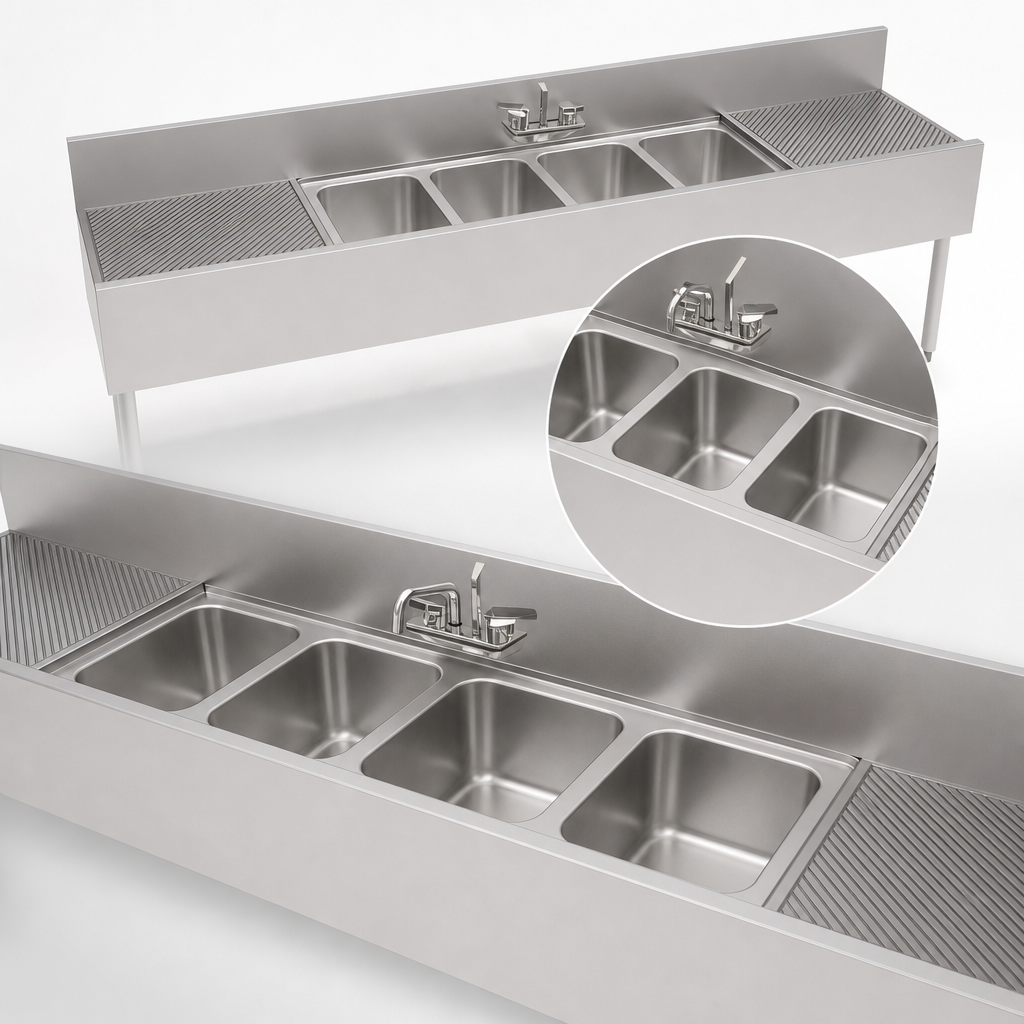

Four Sink Compartments

Four stainless compartments provide separate stations for multi-step bar and beverage service.

Four Sink Compartments

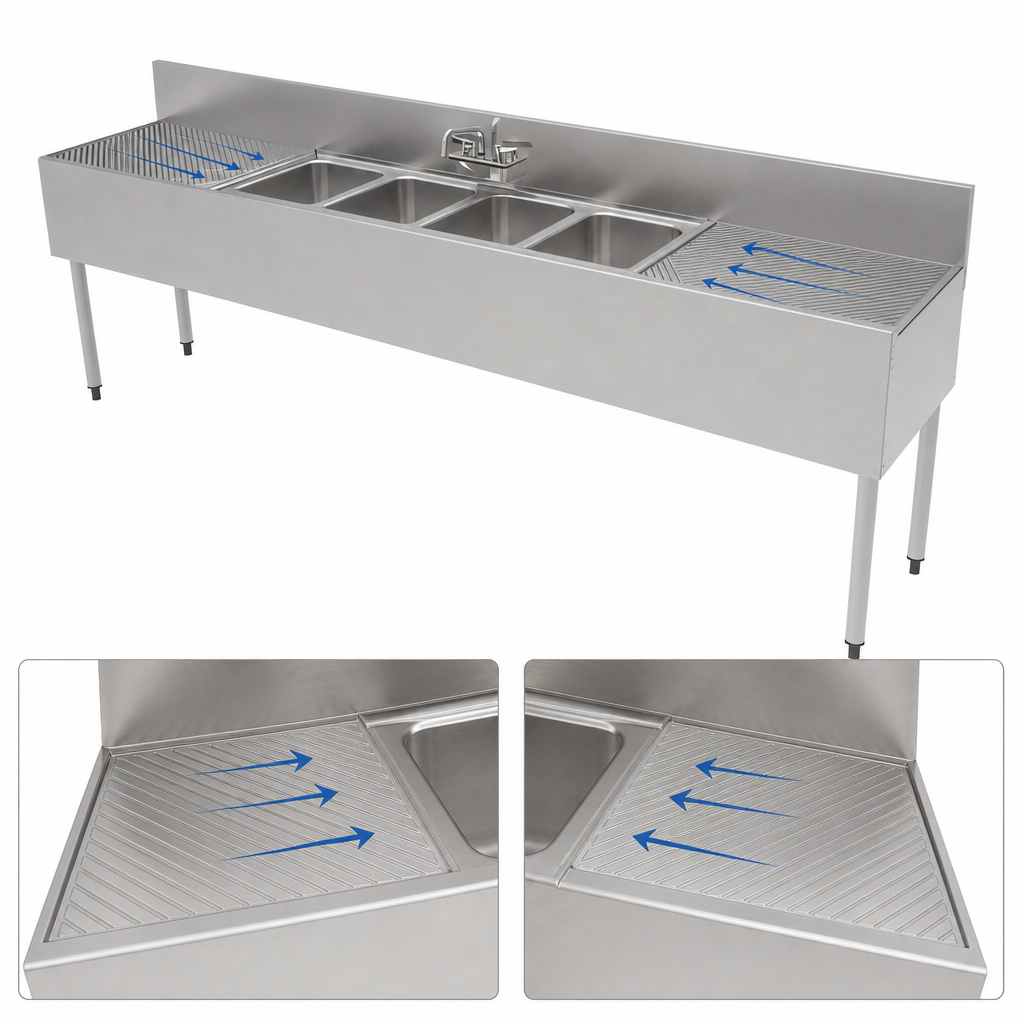

Dual Pitched Drainboards

24-inch drainboards on both sides are pitched to the drain for rapid water evacuation.

Dual Pitched Drainboards

18-Gauge Stainless Construction

Drawn stainless bowls, top, deck, front, and back are built for long service life and heavy use.

Seamless Front Apron

The seamless stainless apron improves durability and makes cleaning easier.

6-Inch Stainless Backsplash

The backsplash helps contain splashes and protects the wall behind the sink.

Quick Clamp Leg Attachment

Tool-less Perlick Quick Clamp leg mounting speeds setup when legs are used.

Adjustable Thermoplastic Feet

Stainless steel legs with adjustable feet help level the sink on uneven floors.

Included Drain Hardware

Includes 1-1/2" drain sockets and 8-1/2" removable overflow standpipes.

Faucet Hole Options

4" on-center TS splash or TSF deck-mount faucet holes support optional faucet installation.

Type Underbar Sink
Style Four Compartment
Installation Type Freestanding
Material Stainless Steel
Compartments 4
Drainboards Left and Right
Backsplash 6 Inches High
Bowl Size 10 Inches Wide x 14 Inches Front-to-Back x 9-1/4 Inches Deep
Drain Connection Size 1-1/2 Inches NPS Male
Drain Connection Required
Shipping Width 96 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 200 Pounds
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

No. The hot and cold faucet is optional and must be ordered separately.
Each of the four compartments measures 10" wide x 14" front-to-back x 9-1/4" deep.
Yes. This model includes pitched drainboards on the left and right sides.
It includes 1-1/2" drain sockets and 8-1/2" removable overflow standpipes.
It has 4" on-center TS splash or TSF deck-mount faucet holes for optional faucet setups.
