Perlick Corporation

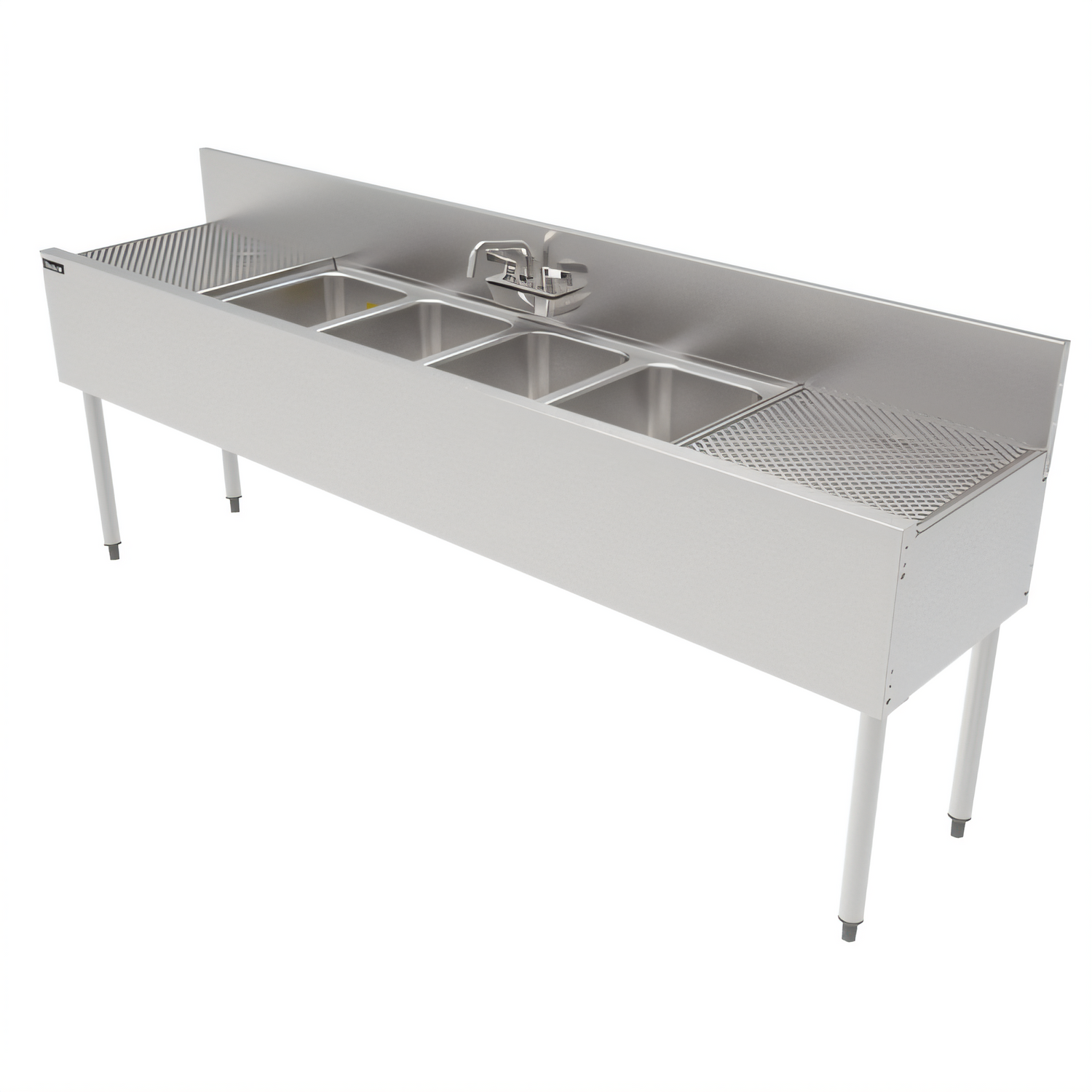

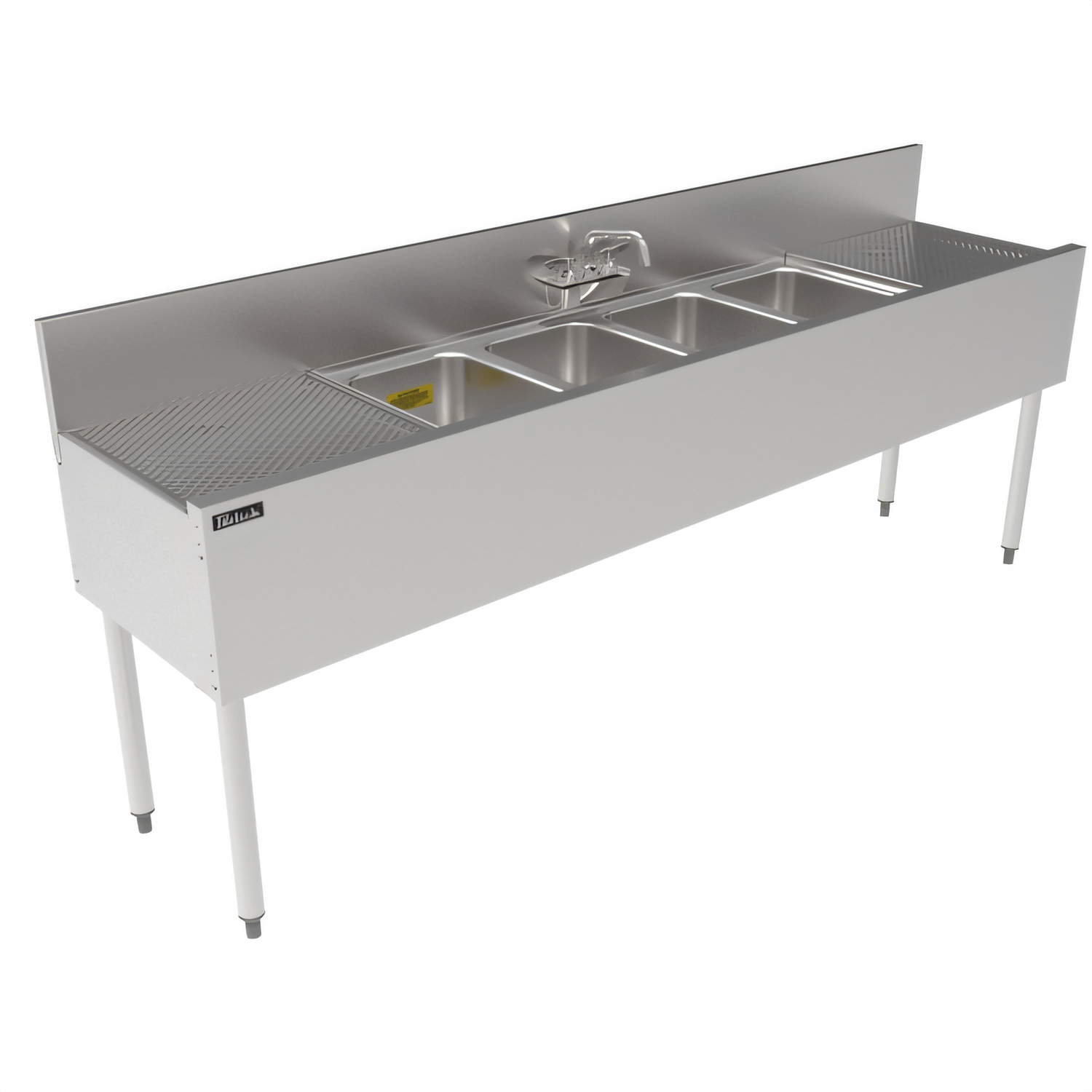

Top Shelf TS Series 84-Inch 4-Compartment Stainless Steel Underbar Multi-Tank Sink Unit with Left and Right Drainboards

SKU: TS84M4-DB
$3,062.95
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Beverage Equipment Beverage Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

Top Shelf TS Series 84-Inch 4-Compartment Stainless Steel Underbar Multi-Tank Sink Unit with Left and Right Drainboards

18-Gauge Stainless Steel, 6-Inch Backsplash, 4-Inch OC TS/TSF Faucet Hole Options

This 84-inch underbar sink gives busy beverage stations four compartments, twin drainboards, and durable stainless construction in one efficient package.

  • Four sink compartments create dedicated stations for washing, rinsing, and prep in high-volume bar areas.
  • Left and right 18-inch pitched drainboards help stage glassware and move water away from the sink area.
  • Stainless steel construction and a seamless front apron support durability and easier cleaning.
  • 6-inch backsplash and 4-inch on-center faucet hole options make installation more flexible.
  • Includes 1-1/2-inch drains and removable overflow standpipes for a complete working setup.
  • Stainless steel legs with adjustable thermoplastic feet help simplify leveling and installation.

Overall Dimensions:

84.0"W x 18.56"D x 36.5"H

Product Weight:

165.0 lb

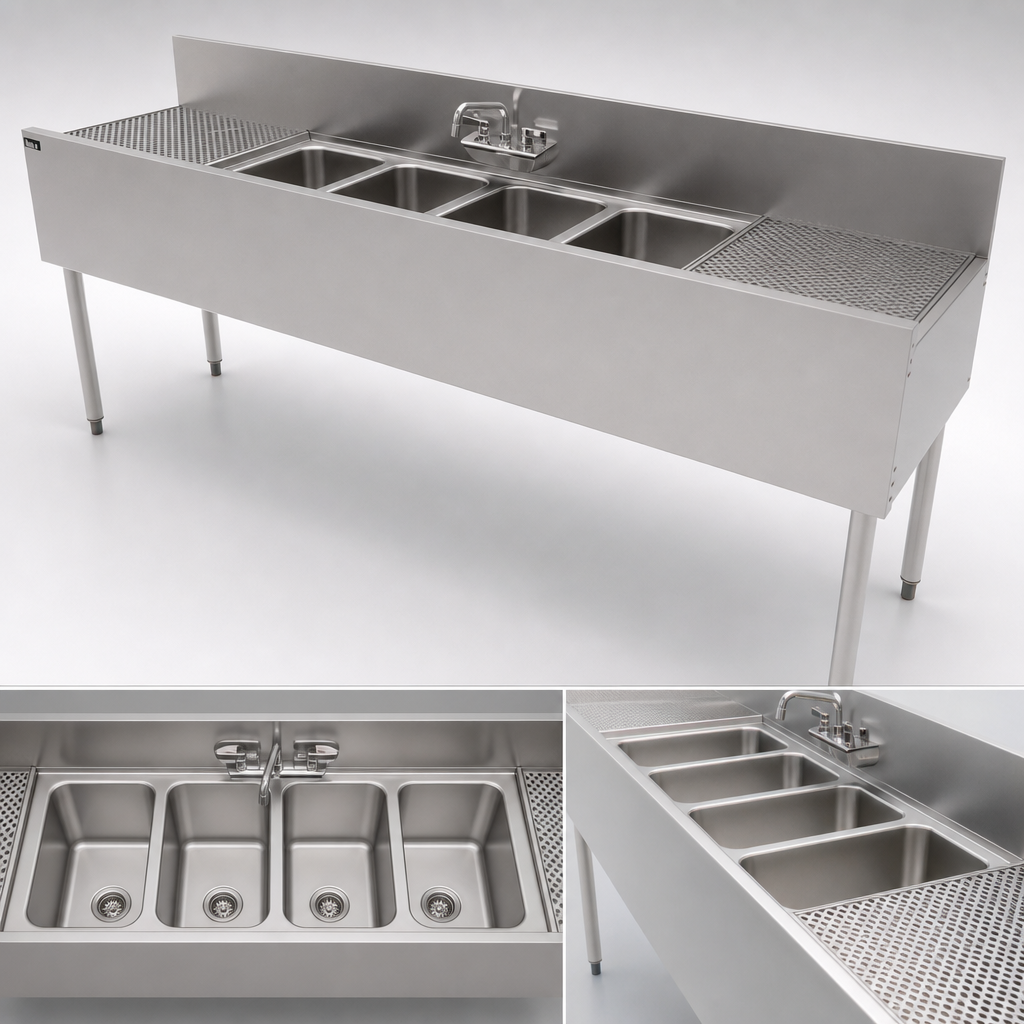

Four-Compartment Layout

Provides four separate sink compartments for multitasking in beverage and underbar service areas.

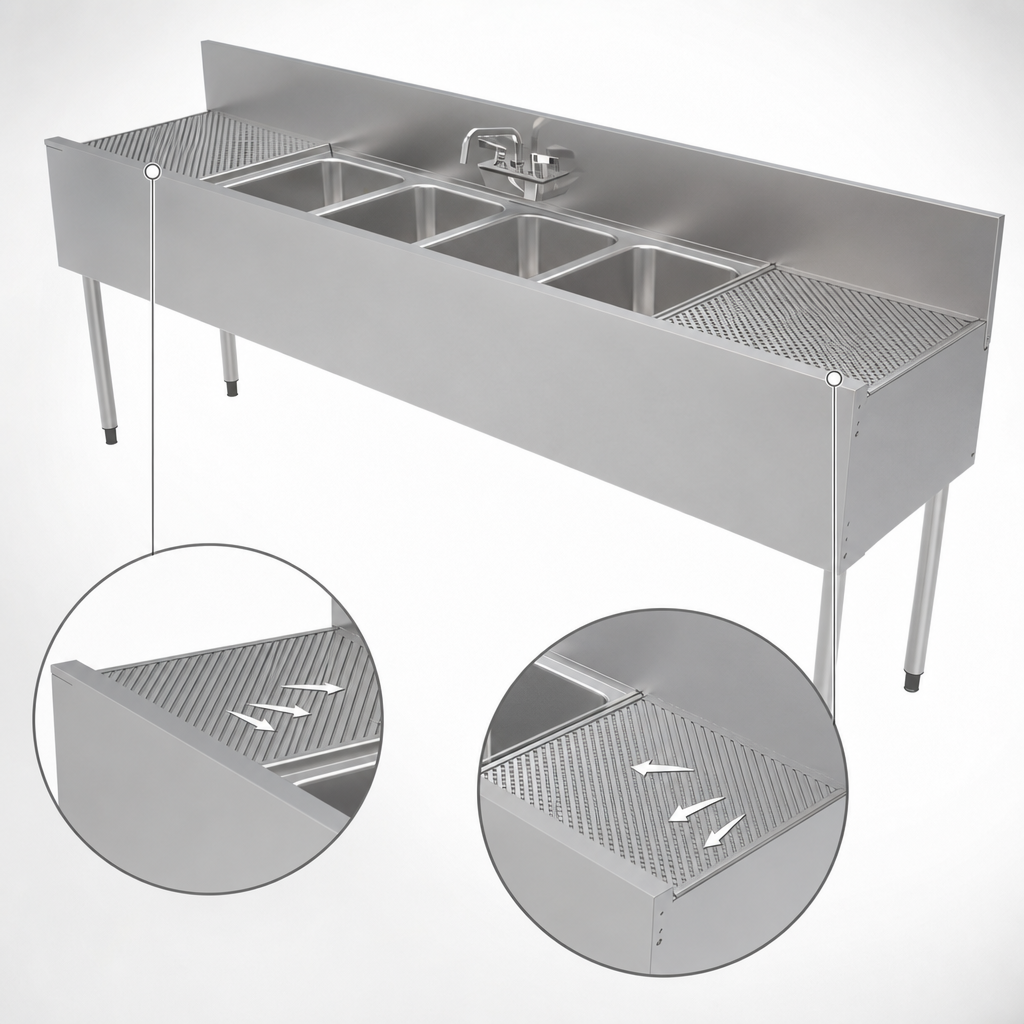

Dual Pitched Drainboards

18-inch drainboards on both the left and right sides offer additional staging space and help direct water away from the sink.

Stainless Steel Construction

Built with stainless steel top, front, ends, and legs for commercial durability.

Seamless Front Apron

A seamless front apron helps create a cleaner appearance and simplifies wipe-downs.

Faucet Hole Options

Configured for 4-inch on-center TS splash or TSF deck-mount faucet holes.

Included Drain Components

Ships with 1-1/2-inch drains and 8-1/2-inch removable overflow standpipes.

Quick Clamp Leg Attachment

Perlick Quick Clamp tool-less leg attachment helps speed up assembly.

Adjustable Thermoplastic Feet

Stainless steel legs with adjustable thermoplastic feet help level the unit on uneven floors.

Type Multi-Tank Sink Unit
Style Underbar
Installation Type Floor Model
Material Stainless Steel
Compartments 4
Bowl Size 10 Inches x 14 Inches Front-to-Back
Bowl Depth 9-1/4 Inches
Backsplash 6 Inches
Drainboards Left and Right, 18 Inches Each
Faucet Hole Spacing 4 Inches On Center
Drain Connection Size 1-1/2 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 84 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 165 lb.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has four stainless steel compartments.
Each compartment measures 10 inches wide x 14 inches front-to-back x 9-1/4 inches deep.
Yes, it includes 18-inch pitched drainboards on the left and right sides.
It can be configured with 4-inch on-center TS splash or TSF deck-mount faucet holes.
This model replaces TS74C.
It includes 1-1/2-inch drains and 8-1/2-inch removable overflow standpipes.
