Perlick Corporation

Top Shelf TS Series 30-Inch Freestanding Stainless Steel Underbar Drainboard with Backsplash

SKU: TS30DB
$891.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Best Sellers Commercial Plumbing Supplies Commercial Sinks New Arrivals Perlick Corporation Restaurant Equipment

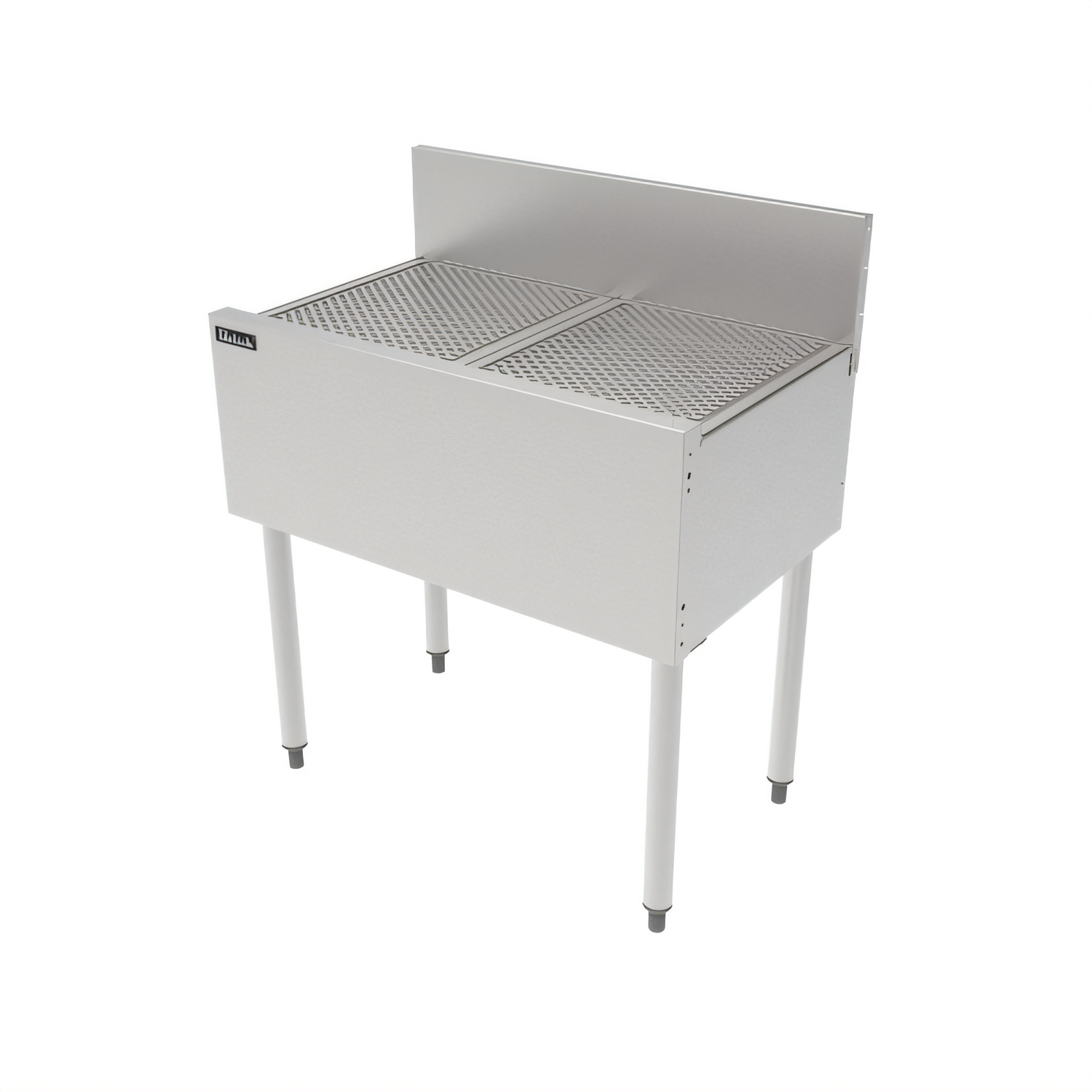

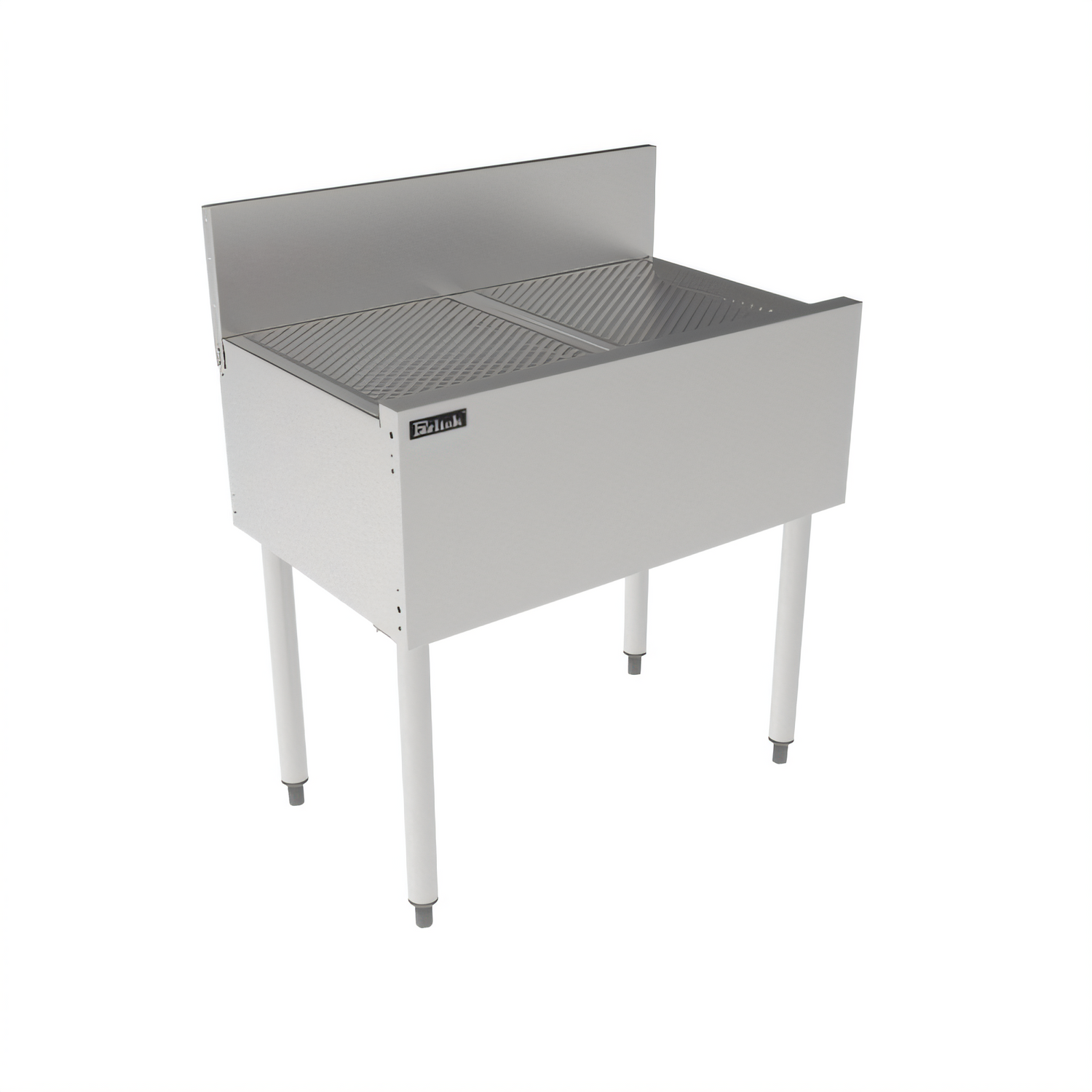

Top Shelf TS Series 30-Inch Freestanding Stainless Steel Underbar Drainboard with Backsplash

Pitched drainboard top, open-base design, and Quick Clamp tool-less legs; replaces TS30.

This durable stainless steel drainboard quickly sheds water, simplifies setup, and keeps bar service areas organized.

  • 30-inch-wide underbar drainboard provides a dedicated surface for glassware drying and staging.
  • Pitched top moves water to the drain quickly and efficiently.
  • All stainless steel construction with a seamless 18-gauge front apron supports durability and easy cleaning.
  • Quick Clamp leg attachment installs without tools, and adjustable thermoplastic feet help level the unit.
  • Freestanding open-base design with backsplash works well in busy bar and service areas.
  • NSF-certified construction helps support health-code compliance.

Overall Dimensions:

30.0"W x 18.56"D x 36.5"H

Product Weight:

50.0 lb

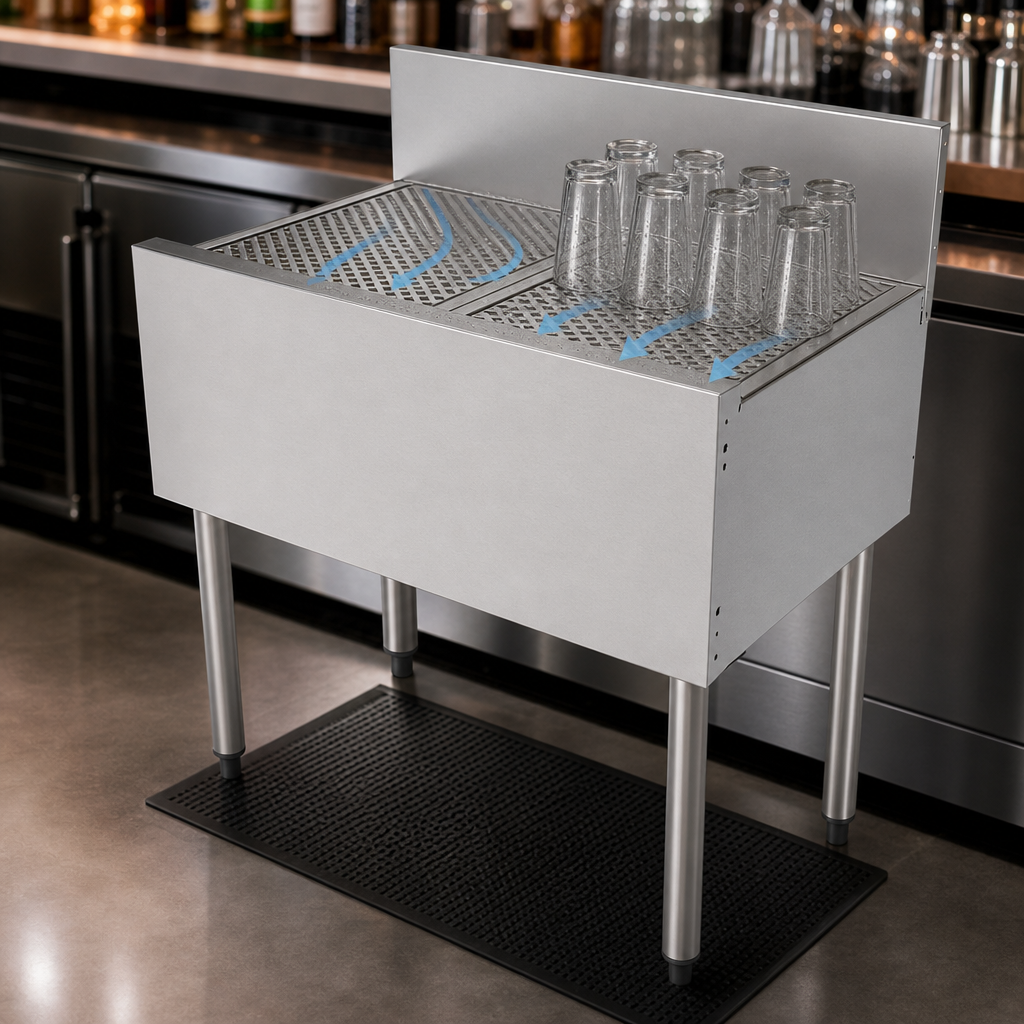

Pitched Drainboard Top

Sloped stainless top evacuates water quickly while still offering a usable surface for staging glassware.

All Stainless Steel Construction

Durable, easy-to-clean build with a seamless 18-gauge stainless steel front apron.

Quick Clamp Tool-Less Legs

Perlick leg attachment system speeds installation without tools.

Adjustable Stainless Steel Legs

1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet help stabilize the unit.

6-Inch Backsplash

Stainless steel backsplash helps contain splash and protect adjacent surfaces.

NSF-Certified Design

Built to meet health-code standards for commercial environments.

Freestanding Open Base

Open underside keeps the area accessible beneath the drainboard.

Type Drainboard
Style Underbar
Installation Type Freestanding
Material Stainless Steel
Drain Connection Required
Drain Connection Size 1-1/2 Inch NPS Male
Backsplash Height 6 Inches
Shipping Width 30 Inches
Shipping Depth 19 Inches
Shipping Height 37 Inches
Shipping Weight 50 lb.
Selling Unit Each
Units Per Case 1

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The unit measures 30" W x 18-9/16" D x 36-1/2" H and weighs 50 lb.
It features all stainless steel construction with a seamless 18-gauge stainless steel front apron and stainless steel legs.
The top is pitched to move water to the drain quickly, and the drain socket is located at the back center with a 1-1/2" NPS male connection.
Yes. The Perlick Quick Clamp leg attachment allows tool-less leg installation.
Yes, the drainboard is NSF-certified.
Optional perforated inserts, flat top inserts, speed rails, a bottle opener, end splashes, and a backsplash cutout are available.
