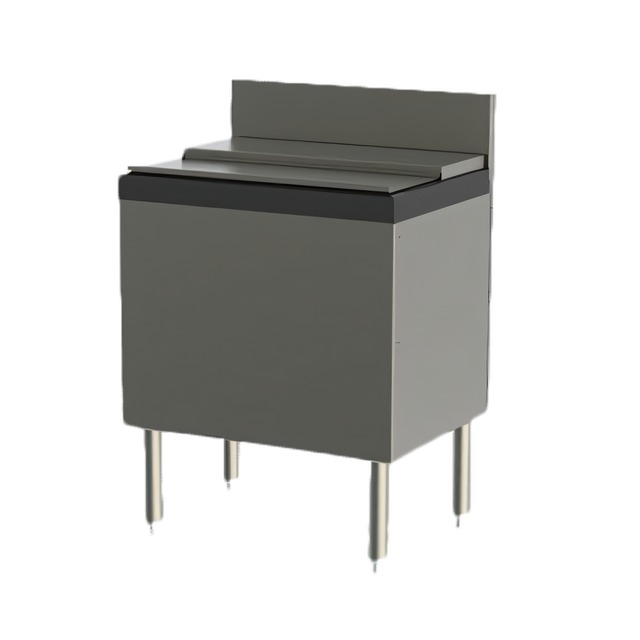

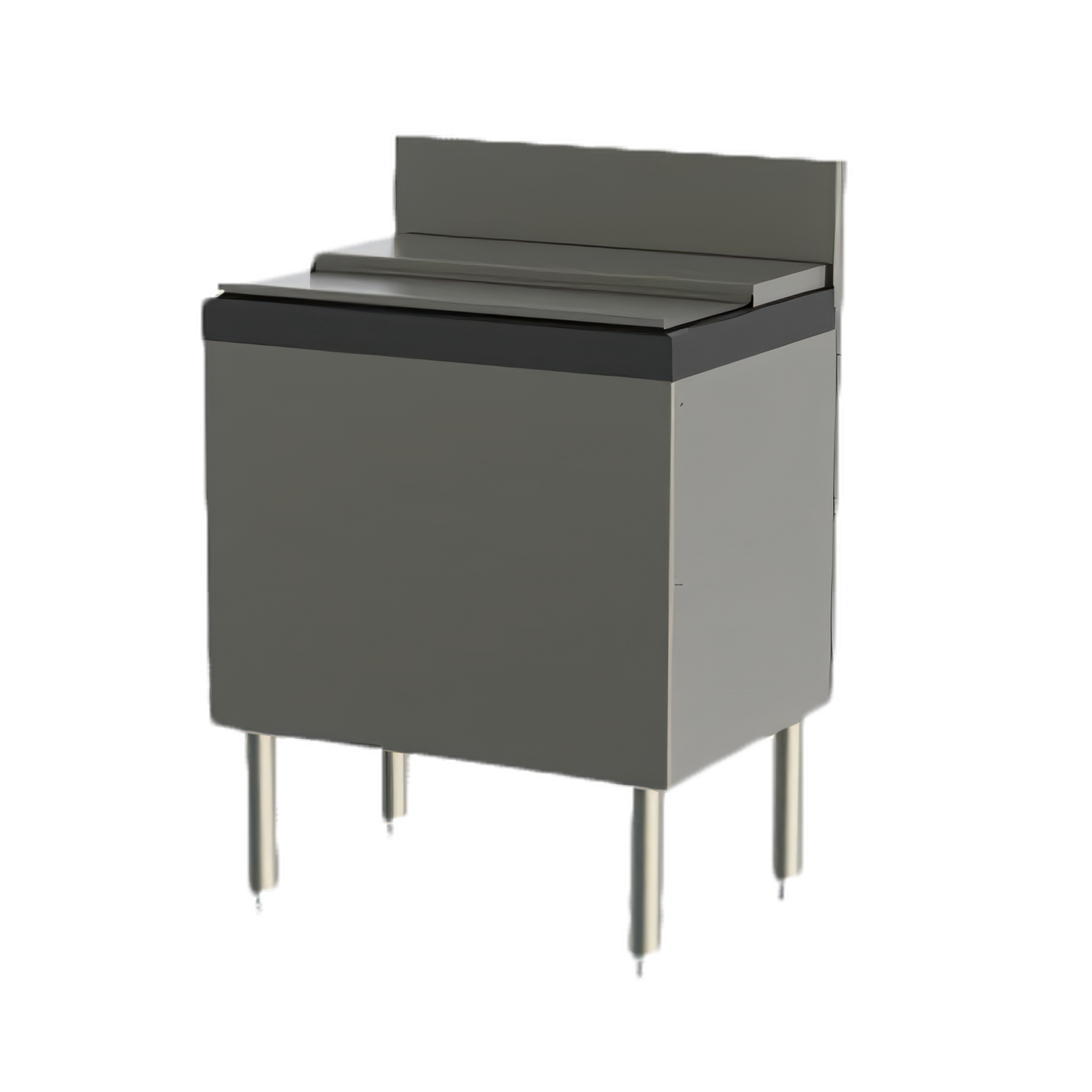

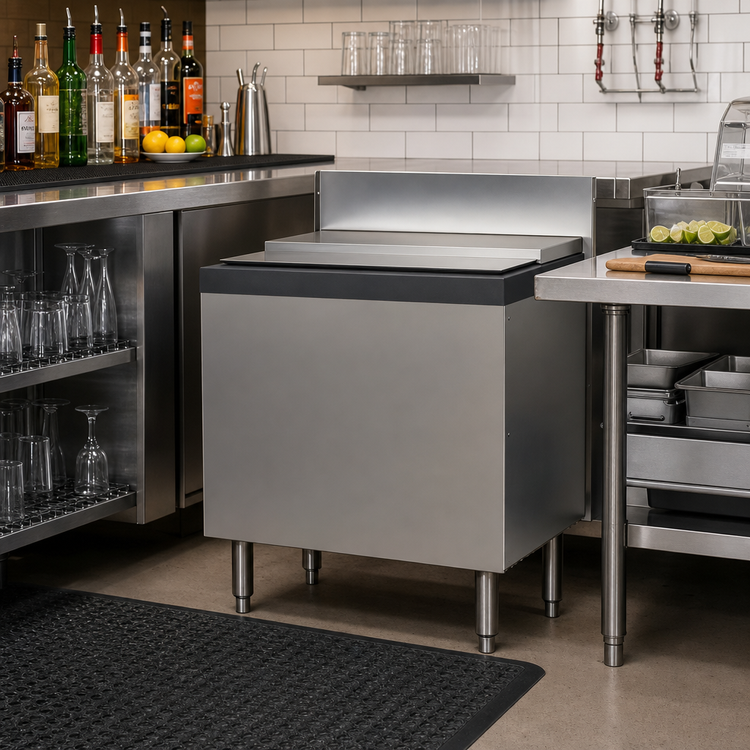

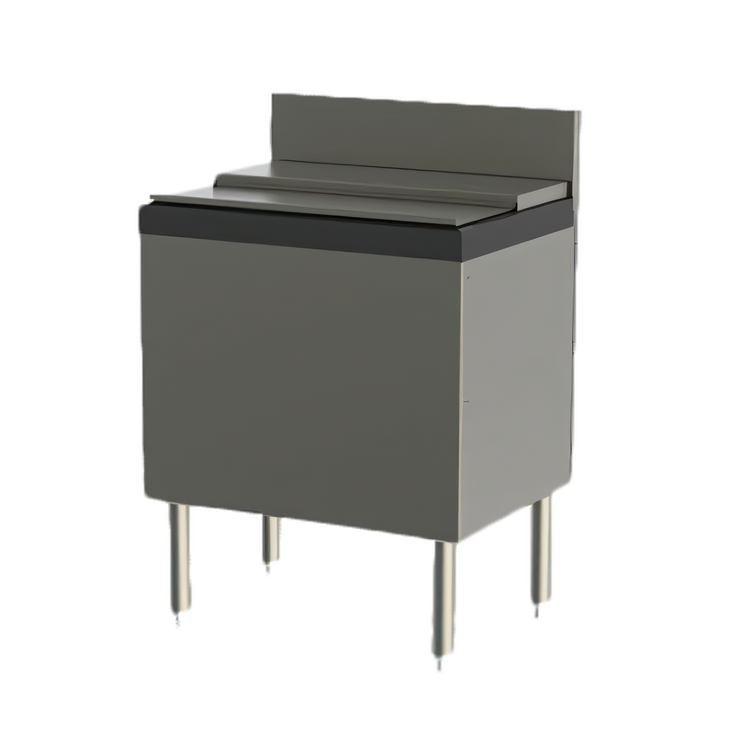

Top Shelf TS Series Extra Capacity 24-Inch Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
Top Shelf TS Series Extra Capacity 24-Inch Underbar Ice Bin/Cocktail Unit with 10-Circuit Cold Plate
15-Inch Deep Bin, 6-Inch Backsplash, Stainless Steel Construction
Built for fast-moving bar service, this extra-capacity 24-inch ice bin combines a concealed 10-circuit cold plate with durable stainless steel construction to keep ice and beverages cold.
- Extra-capacity design holds approximately 75 lb. of ice for busy cocktail stations.
- Concealed 10-circuit aluminum cold plate helps chill beverages using the ice supply.
- 6-inch backsplash with a 1-inch top return helps contain splashes and spills.
- 15-inch deep stainless steel ice bin provides ample storage and easy access.
- Stainless steel front and sides pair with a galvanized steel back and bottom for durability.
- Tubular stainless steel legs with adjustable thermoplastic feet help level the unit on site.
Overall Dimensions:
24.0"W x 18.56"D x 36.5"HProduct Weight:

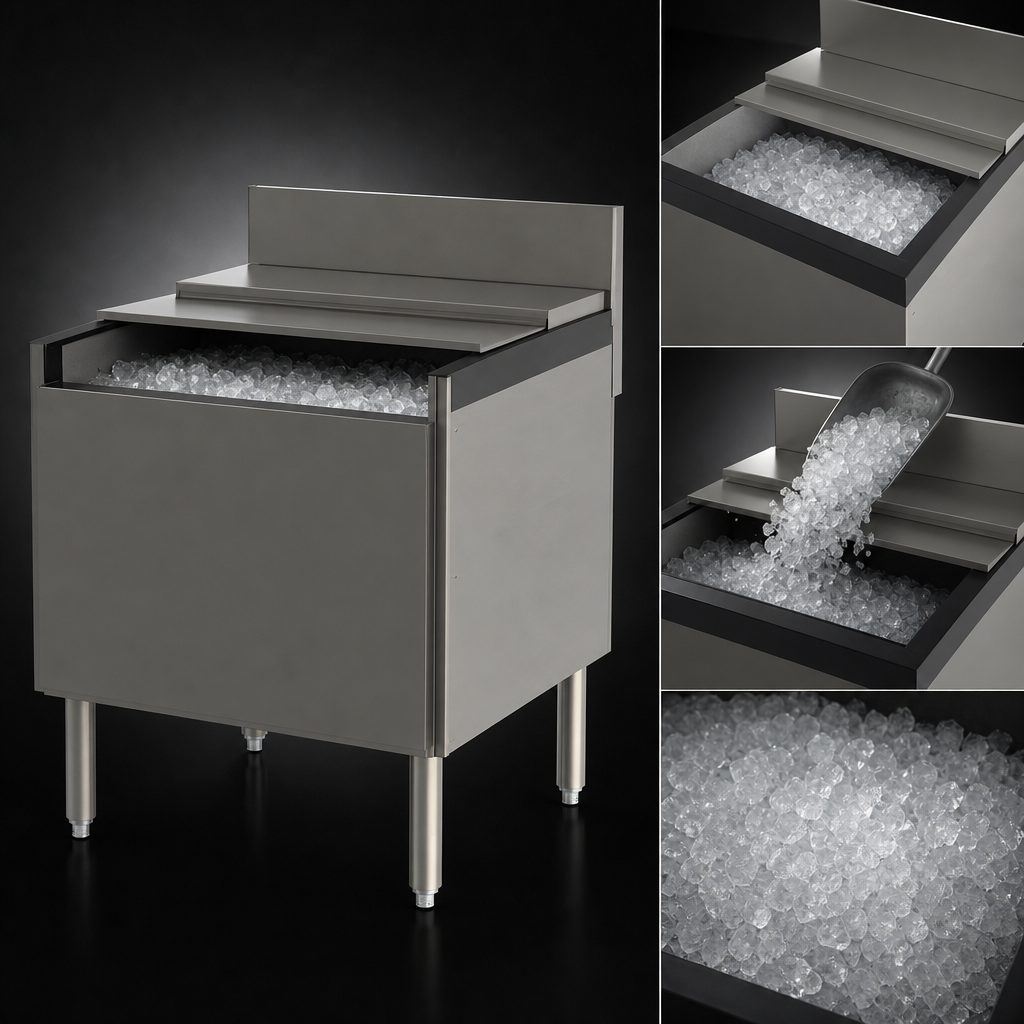

170.0 lbExtra Capacity Ice Bin
The bin is 4-1/4 inches deeper than a standard ice chest and provides approximately 75 lb. of ice capacity.

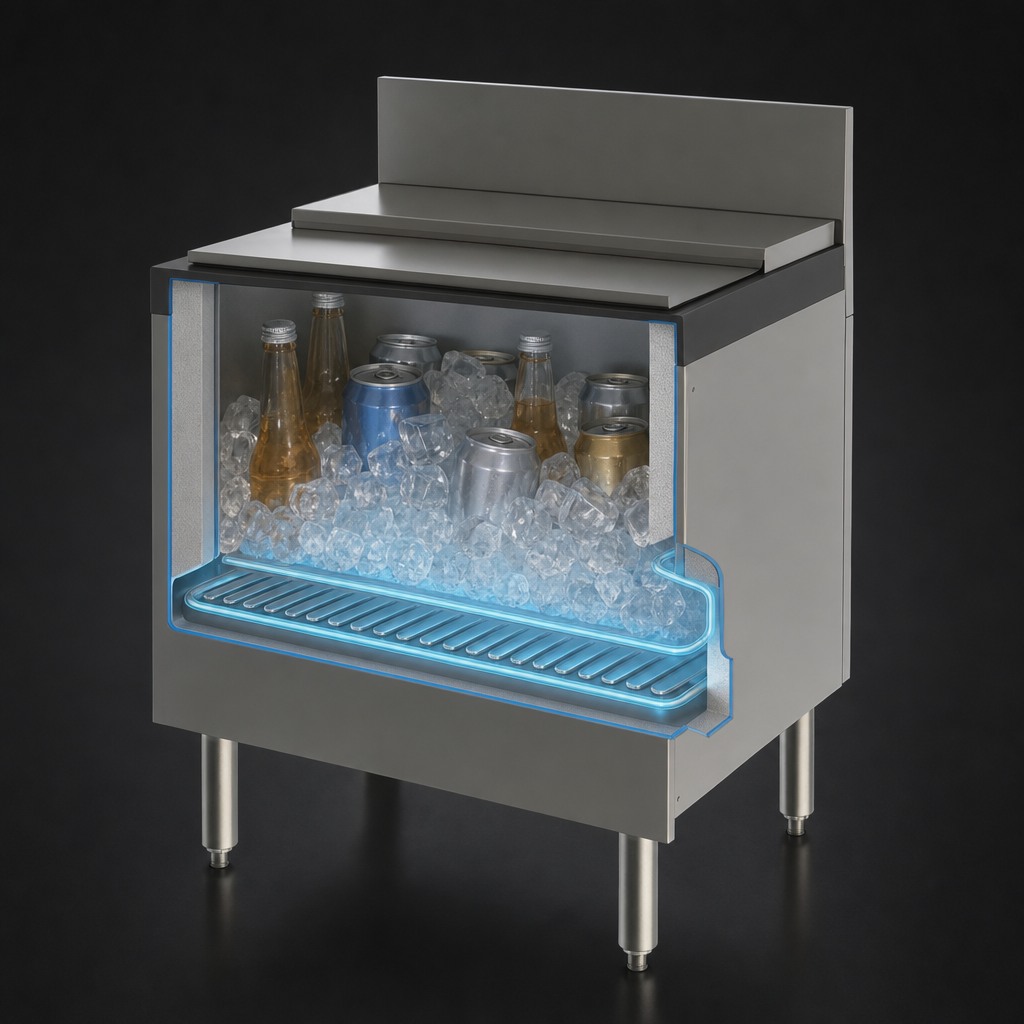

Concealed 10-Circuit Cold Plate
An aluminum cold plate is concealed beneath the bin liner to chill beverages as ice sits in the chest.
6-Inch Backsplash
The integrated backsplash includes a 1-inch return at the top to help reduce splash-over.
Mixed-Material Construction
Stainless steel front, sides, and ice bin are paired with a galvanized steel back and bottom for long-term durability.
ABS Plastic Top Ledge
The top ledge is made from ABS plastic for a durable, easy-to-use working edge.
Drain Connection
A 1/2-inch NPS male drain connection is included for drainage.
Adjustable Stainless Steel Legs
The unit is supported by 1-5/8-inch tubular stainless steel legs with 1-inch adjustable thermoplastic feet.
