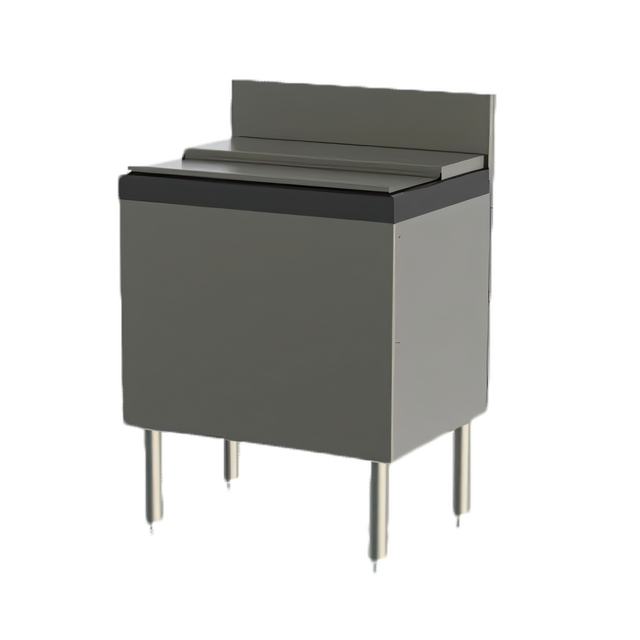

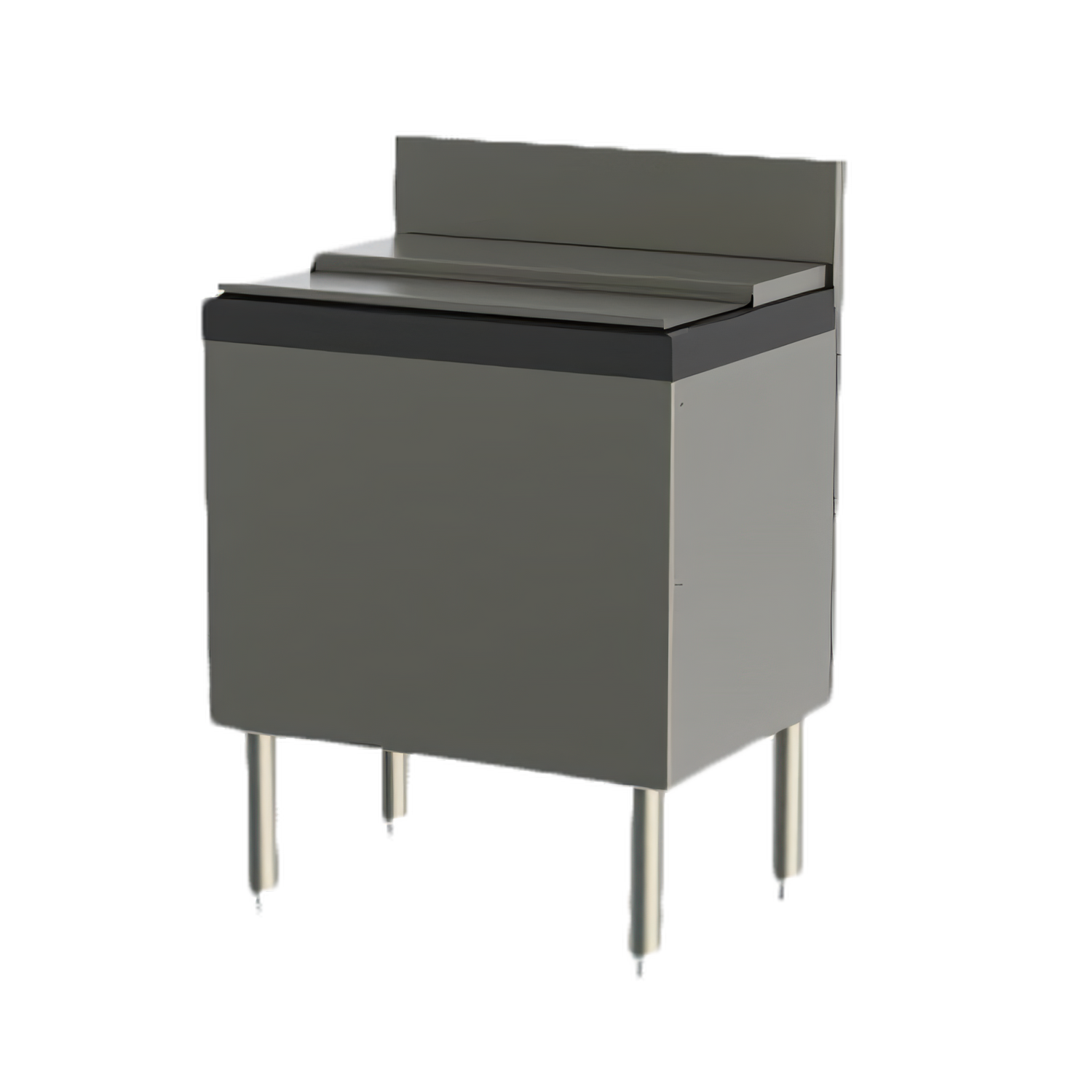

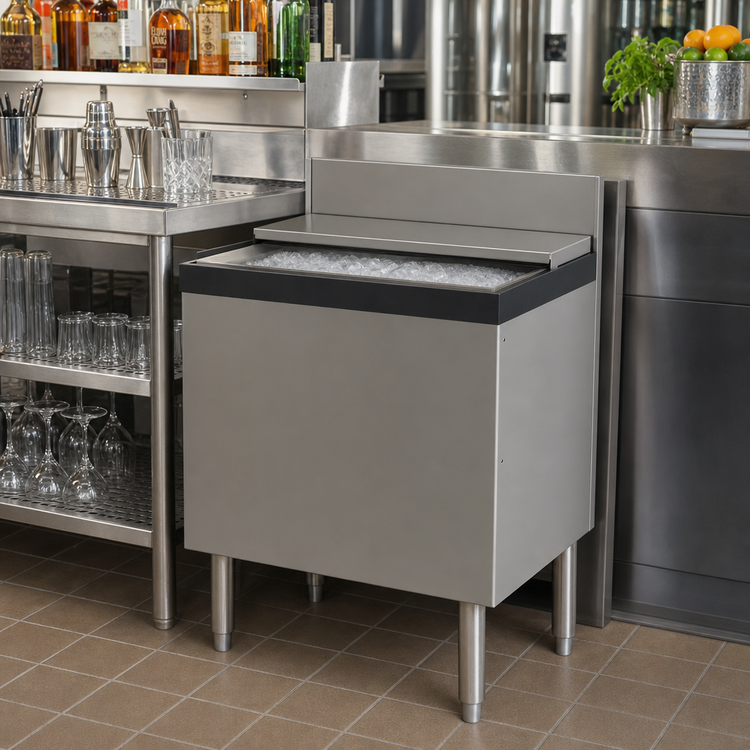

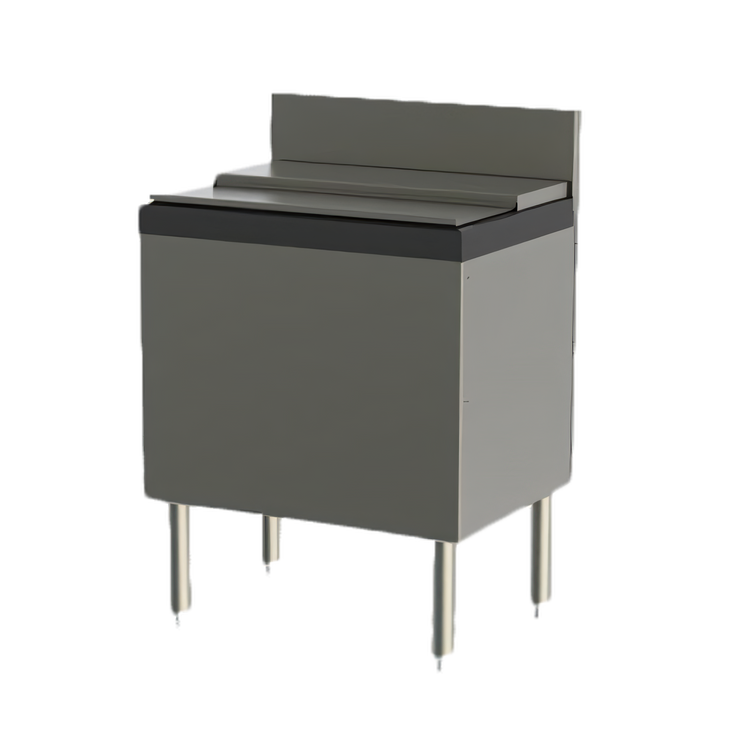

Top Shelf TS Series Extra Capacity Underbar Ice Bin/Cocktail Unit, 24 Inch Wide, 75-Lb Capacity
Top Shelf TS Series Extra Capacity Underbar Ice Bin/Cocktail Unit, 24 Inch Wide, 75-Lb Capacity
Modular, 18-9/16 Inch Deep, 6 Inch Backsplash, No Cold Plate
This compact 24-inch modular ice bin gives bartenders generous ice storage and fast drainage in a durable underbar footprint.
- Extra-capacity TS Series ice bin/cocktail unit with approximately 75 lb. of ice storage.
- 24-inch-wide modular footprint is designed for efficient underbar bar layouts.
- 15-inch-deep stainless steel ice bin with a 6-inch backsplash and 1-inch top return.
- Durable mixed construction includes stainless steel front and sides with galvanized steel back and bottom.
- Includes a 1/2" NPS male drain for straightforward drainage.
- Built on stainless steel legs with adjustable thermoplastic feet for stable installation.
- Specified without a cold plate.
Overall Dimensions:
24.0"W x 18.56"D x 36.5"HProduct Weight:

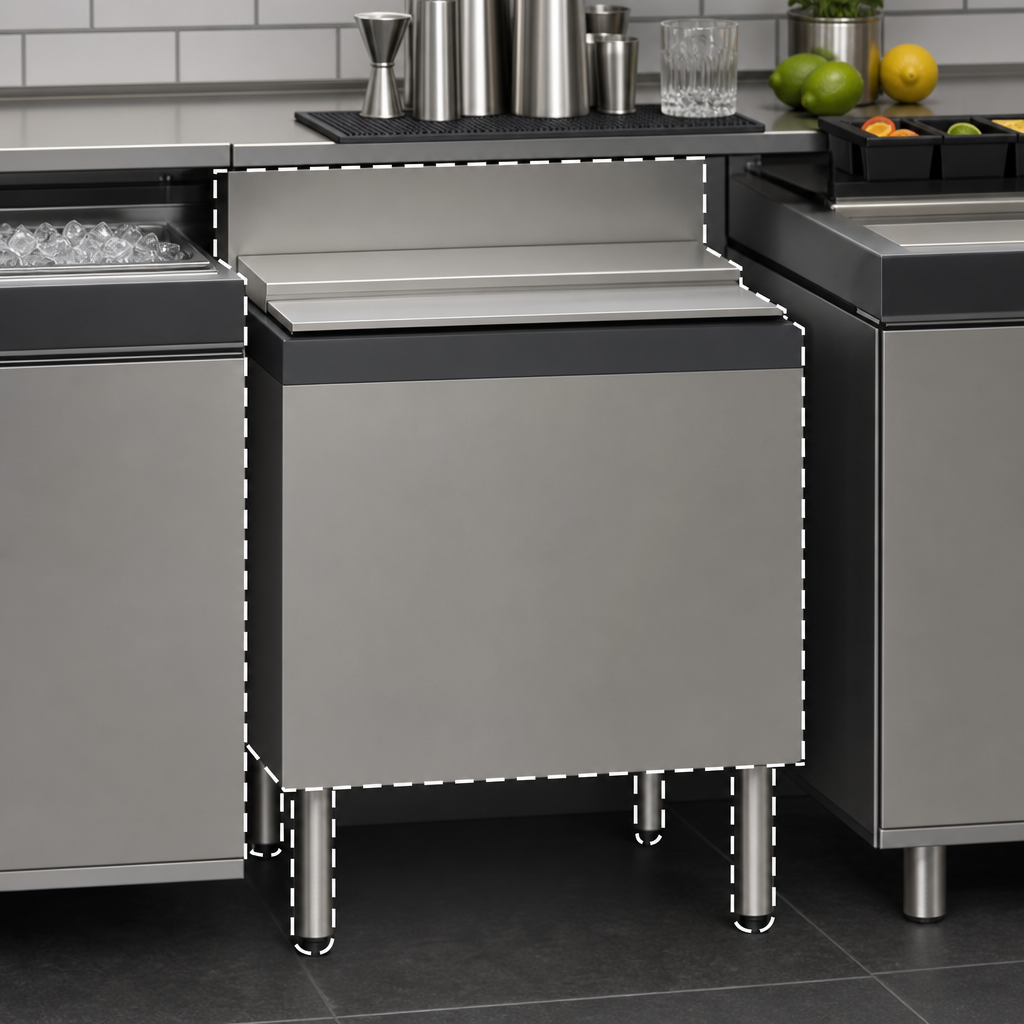

100.0 lbModular TS Series Construction
Designed as a modular underbar unit for flexible cocktail station layouts.

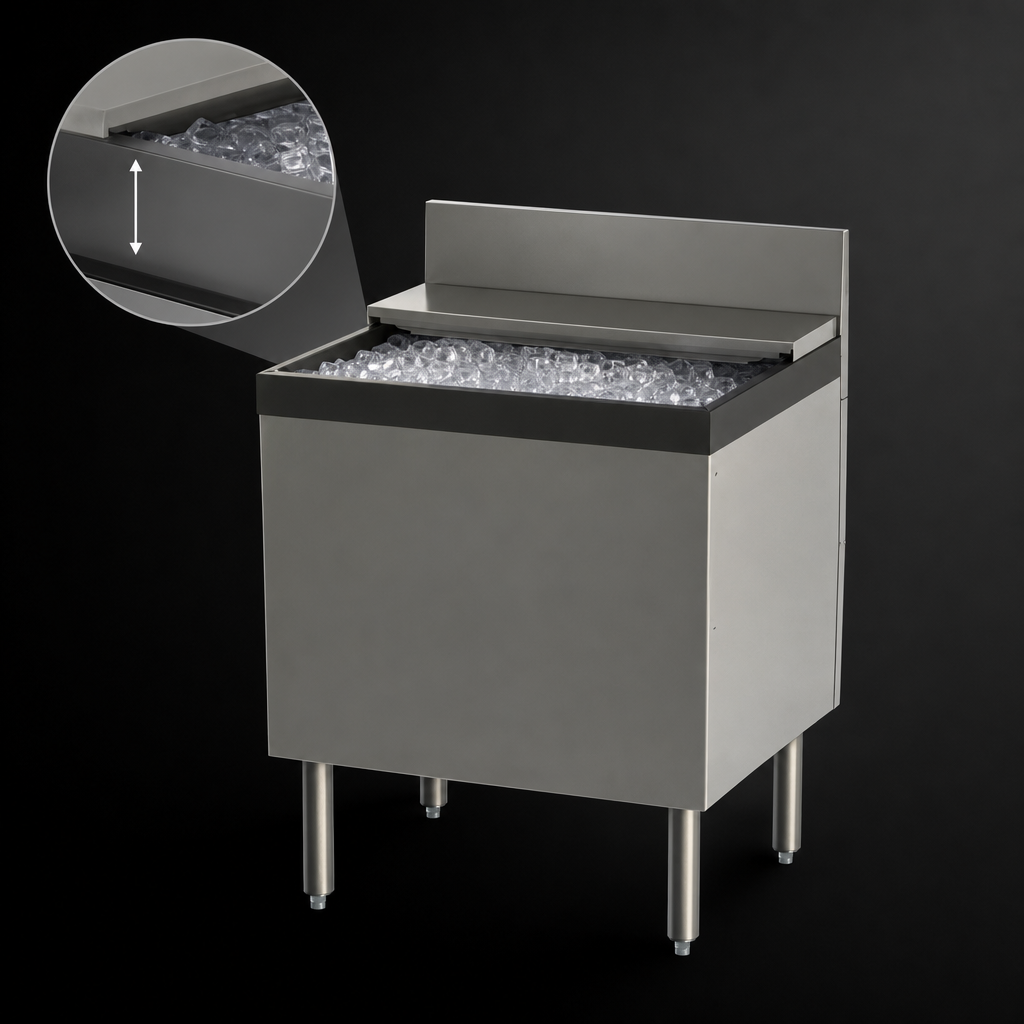

Extra Capacity Ice Bin
The bin is 4-1/4 inches deeper than a standard ice chest, increasing storage volume.
Approximate 75-Lb Ice Capacity
Holds approximately 75 pounds of ice for bar service.
6-Inch Backsplash
Includes a 6-inch backsplash with a 1-inch return at the top to help contain splashes.
15-Inch Deep Stainless Steel Ice Bin
The ice bin is 15 inches deep and built from stainless steel for durability.
ABS Plastic Top Ledge
Durable ABS plastic top ledge provides a practical work surface edge.
Stainless Steel Front And Sides
High-contact exterior surfaces are stainless steel for corrosion resistance and easy cleaning.
Galvanized Steel Back And Bottom
Galvanized steel rear and base add strength to the unit's construction.
1/2-Inch NPS Male Drain
Standard drain connection supports simple wastewater removal.
Stainless Steel Legs With Adjustable Feet
Equipped with 1-5/8 inch tubular stainless steel legs and 1 inch adjustable thermoplastic feet.
No Cold Plate
This model is specified without a cold plate.
