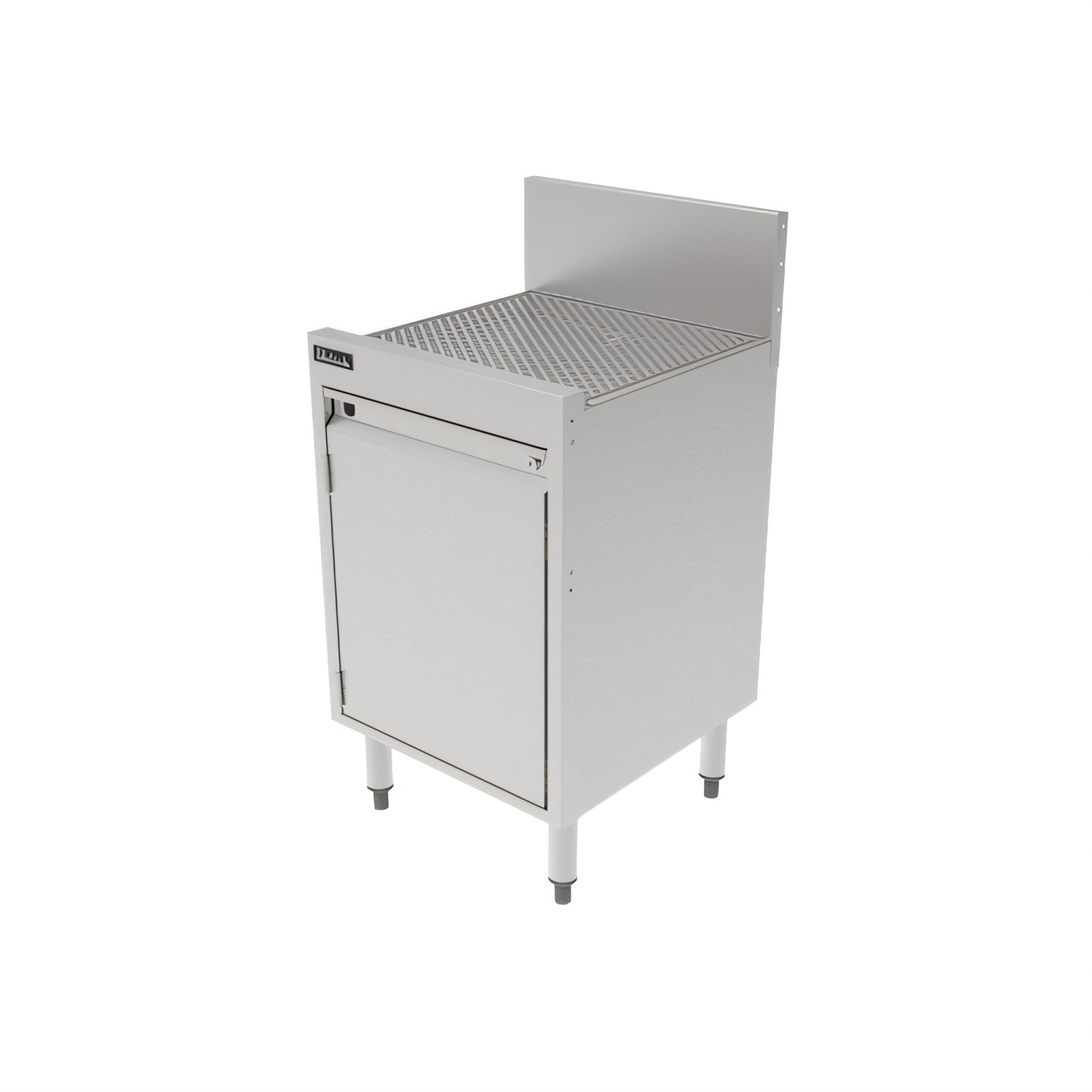

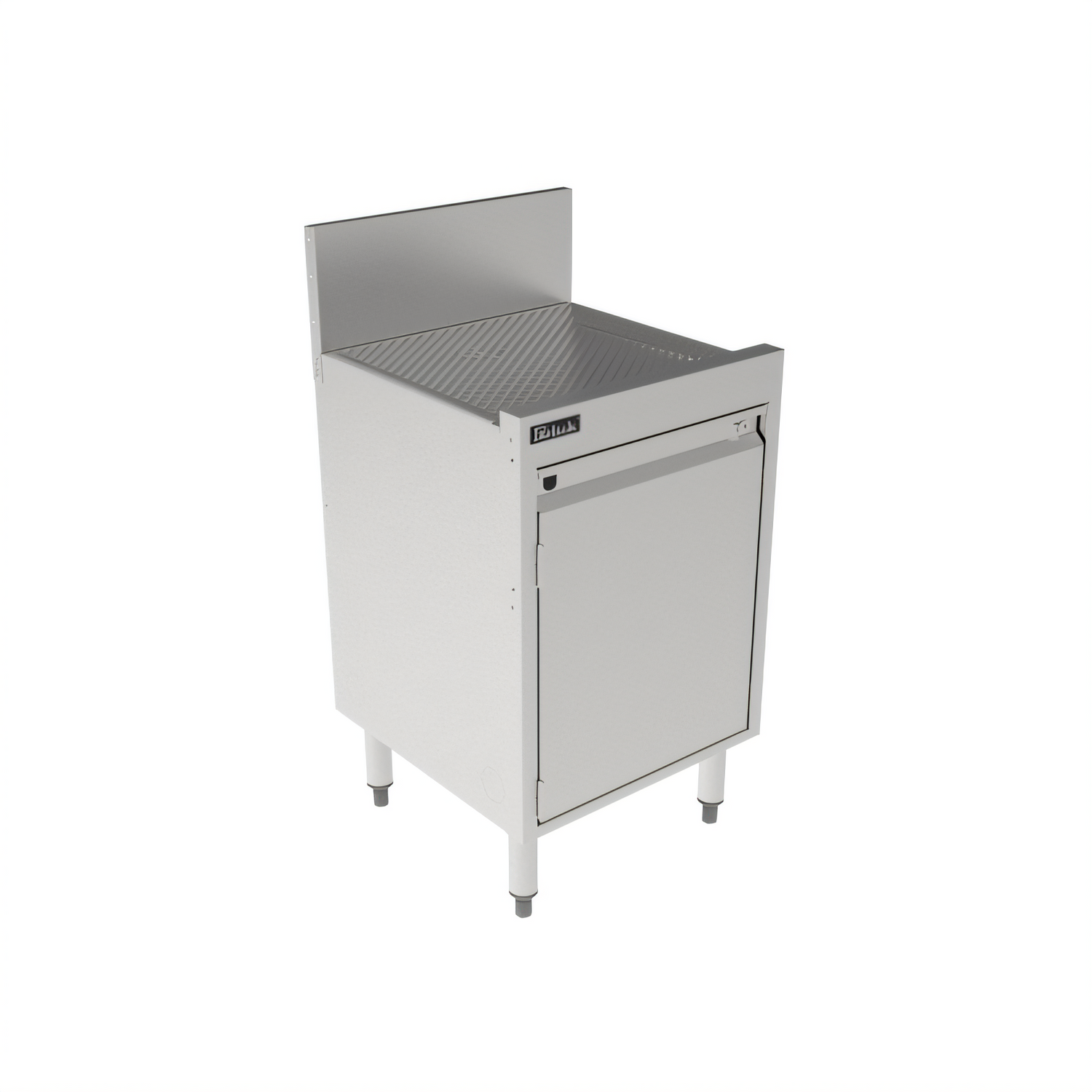

Perlick Top Shelf TS18SC 18-Inch Underbar Storage Cabinet with Pitched Drainboard Top
Perlick Top Shelf TS18SC 18-Inch Underbar Storage Cabinet with Pitched Drainboard Top
NSF-certified stainless steel underbar cabinet — 18 in W x 18-9/16 in D; adjustable shelf and optional doors
Compact NSF-certified 18-inch underbar cabinet with a pitched perforated drainboard and integrated 1-1/2-inch drain for fast glass drying and straightforward plumbing hookup.
- NSF-certified stainless steel construction for durability and health-code compliance.
- Pitched perforated drainboard top directs water to an integrated 1-1/2-inch drain; includes 1/2-inch OD barb and 1/2-inch ID antimicrobial tubing.
- Includes bottom shelf plus one adjustable intermediate shelf (1/2-inch of vertical adjustability).
- Perforated 'stadium' shaped insert included for airflow and glass drying; flat top insert available as an option.
- Perlick Quick Clamp stainless steel legs with adjustable feet for tool-less installation; optional field-reversible door available for 18-inch single-door units.
- Knockouts in the back and lower side provide multiple plumbing hookup options.
Overall Dimensions:
18.0"W x 18.56"D x 36.5"HProduct Weight:

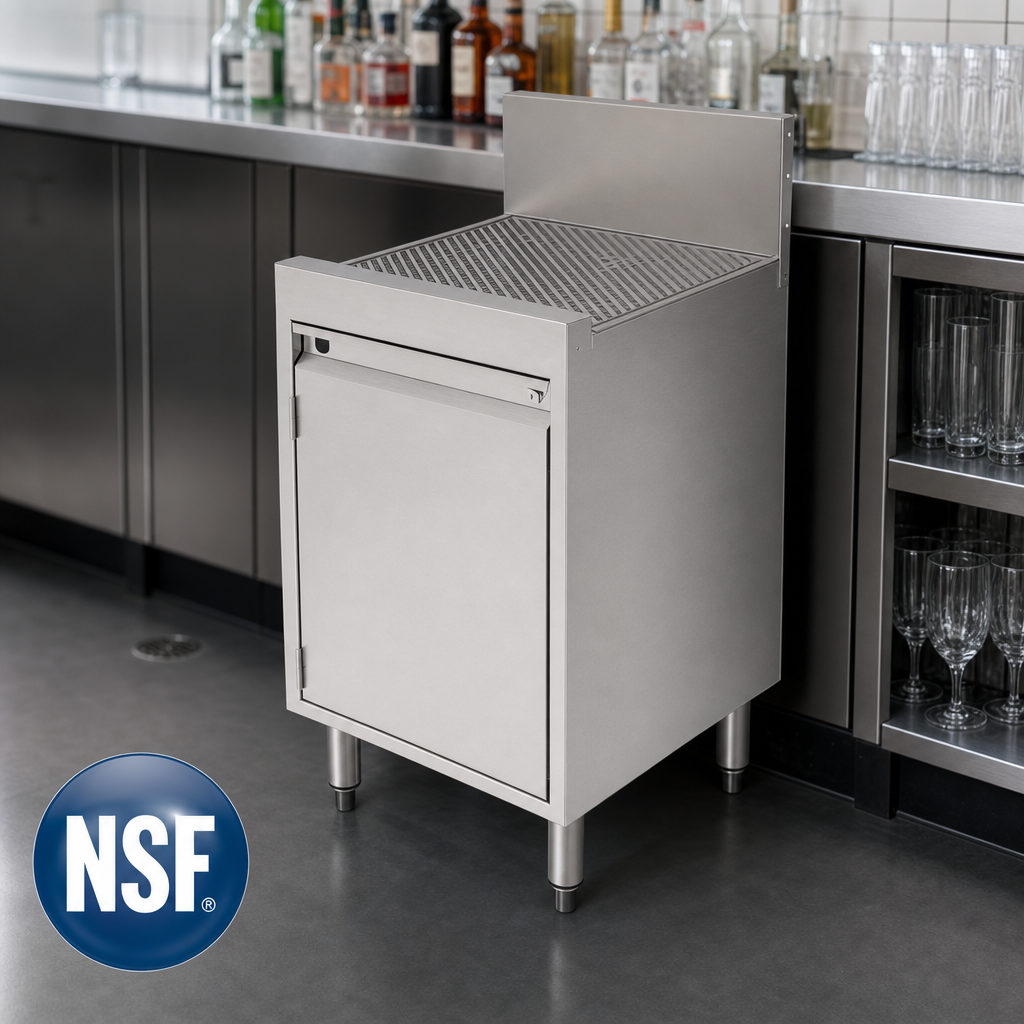

32.0 lbNSF Certified
Unit is NSF-listed to meet commercial health code standards.
Pitched Drainboard Top
Drainboard work surface is pitched to the drain to evacuate water quickly and effectively.
Included Perforated Insert
Default stadium-shaped perforated insert maximizes airflow for efficient glass drying; insert is removable and swappable for a flat top insert.
Drain Plumbing
Provides a 1-1/2-inch NPS drain connection: includes a 1-1/2-inch NPS drain socket with 1/2-inch OD barb and 1/2-inch ID antimicrobial tubing; 1-1/2-inch NPS male drain located center-back of cabinet bottom.
Shelving
Includes bottom shelf plus one adjustable intermediate shelf with 1/2-inch of adjustment to accommodate varying glassware sizes.
Optional Doors
Single-door option available (ordered doors come installed left-hinged); doors are field reversible on 12", 16", 18" and 24" models and include a lock set.
Legs and Feet
Perlick Quick Clamp leg attachment with 16-gauge stainless steel legs and 1-inch adjustable thermoplastic feet for easy, tool-less installation.
Construction Materials
General parts and inserts are 20-gauge stainless steel; backsplash is 18-gauge stainless steel; shelf is 20-gauge stainless steel.
Plumbing Knockouts
Knockouts in the back and lower side of the cabinet provide multiple plumbing routing options.
