Perlick PTS60 60-Inch Pass-Thru Refrigerated Back Bar Cabinet, 17.4 Cu. Ft., 4 Solid Hinged Doors, Self-Contained
$8,795.05
/each
Ships in 22–25 business days
- Cabinet type
- Pass-thru refrigerated back bar cabinet
- Sections
- Two-section
- Door count
- 4
- Door type
- Solid hinged
- Door locks
- Included
- Internal volume
- 17.4 cu. ft. (493 L)
Specifications
Cabinet type
Pass-thru refrigerated back bar cabinet
Sections
Two-section
Door count
4
Door type
Solid hinged
Door locks
Included
Internal volume
17.4 cu. ft. (493 L)
Exterior finish
Black
Interior finish
Stainless steel
Top finish
Stainless steel
Refrigeration
Self-contained, side mounted
Thermostat
Digital control
Lighting
LED interior
Ventilation
Front vented
Defrost
Automatic, off-cycle
Condensate evaporation
Automatic
Floor drain
Included
Electrical supply
120 VAC / 60 Hz / 1 Ph
Electrical connection
Cord connected
Plug type
NEMA 5-15
Cord length
6 ft 5 in
Running load
2.5 A
Horsepower
1/4 HP
Refrigerant
R290
Refrigerant charge
90 g
Factory refrigerator temperature
38°F (3.3°C)
Refrigerator temperature range
33°-40°F (0.5°-4.5°C)
Expansion device
Capillary tube
Condensing unit
Pull-out
Description
The Perlick PTS60 is a two-section, self-contained pass-thru refrigerated back bar cabinet with 17.4 cu. ft. of internal volume.
- Four solid hinged doors include locks.
- The stainless steel interior, digital control thermostat, and LED interior lighting support refrigerated storage and visibility.
- Front-vented refrigeration uses automatic defrost, automatic condensate evaporation, R290 refrigerant, and a 1/4 HP system.
- A floor drain is included.
Overall Dimensions:
60.0"W x 26.69"D x 34.56"HProduct Weight:
354.0 lb
Proposition 65: The materials used in this product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov (nc)
Pass-thru design
Two-section pass-thru refrigerated back bar cabinet configuration.
Four solid hinged doors
The four solid hinged doors include locks.

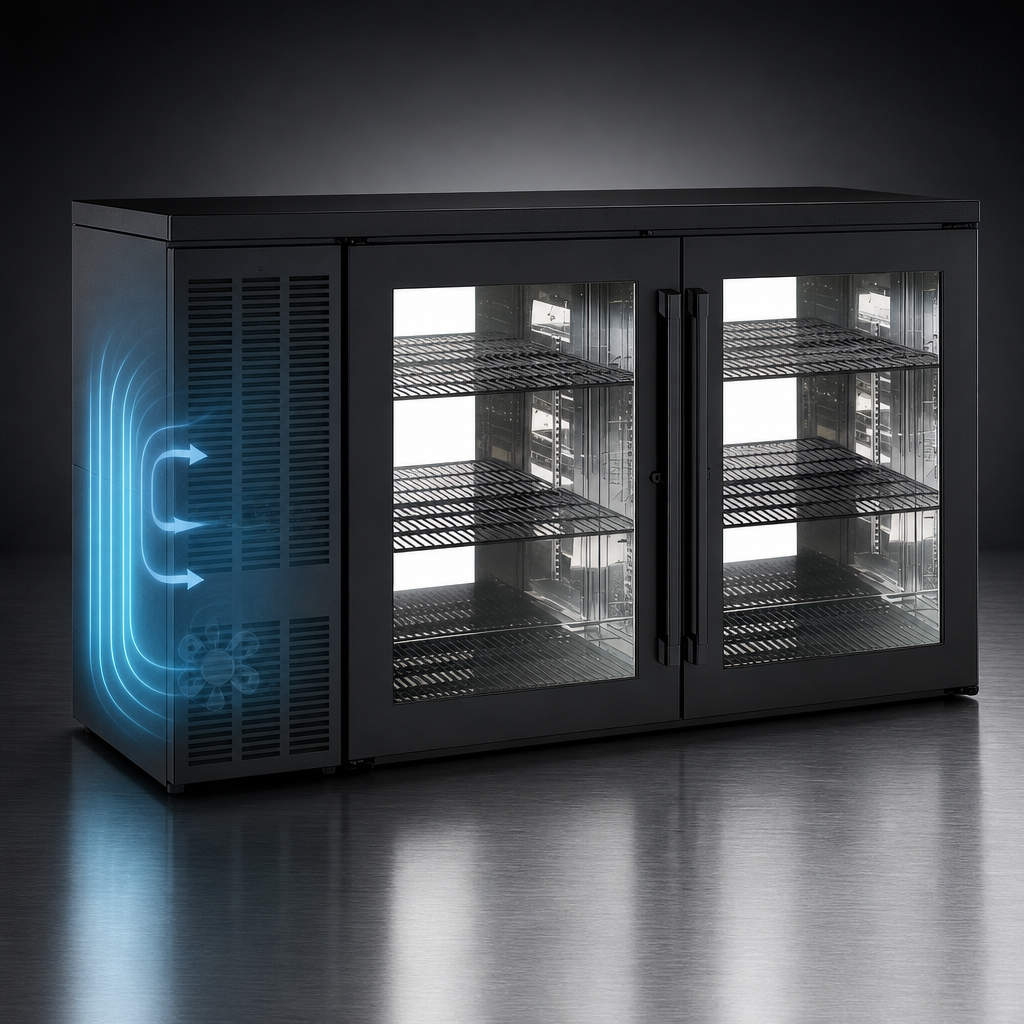

Self-contained refrigeration
Self-contained, side-mounted refrigeration with front venting.
Stainless steel interior
The cabinet has a stainless steel interior.
Digital control and LED lighting
Includes a digital control thermostat and LED interior lighting.
Automatic defrost and condensate evaporation
Automatic defrost and automatic evaporator condensate handling are included.
R290 refrigeration system
Uses R290 refrigerant with a 1/4 HP system.
Included floor drain
A floor drain is included.
Documentation
Cutsheet
PDF Download
Cutsheet
PDF Download
Installation & operation
PDF Download
Door layout
PDF Download
Certifications & Compliance
Frequently Asked Questions
The PTS60 has four solid hinged doors with locks.
The internal volume is 17.4 cu. ft. (493 L).
It uses self-contained, side-mounted refrigeration with R290 refrigerant.
The unit requires 120 VAC / 60 Hz / 1 Ph and has a cord-connected NEMA 5-15 plug.
Yes. A floor drain is included.
The PTS60 is 60 in. wide, 26.69 in. deep, and 34.56 in. high.
