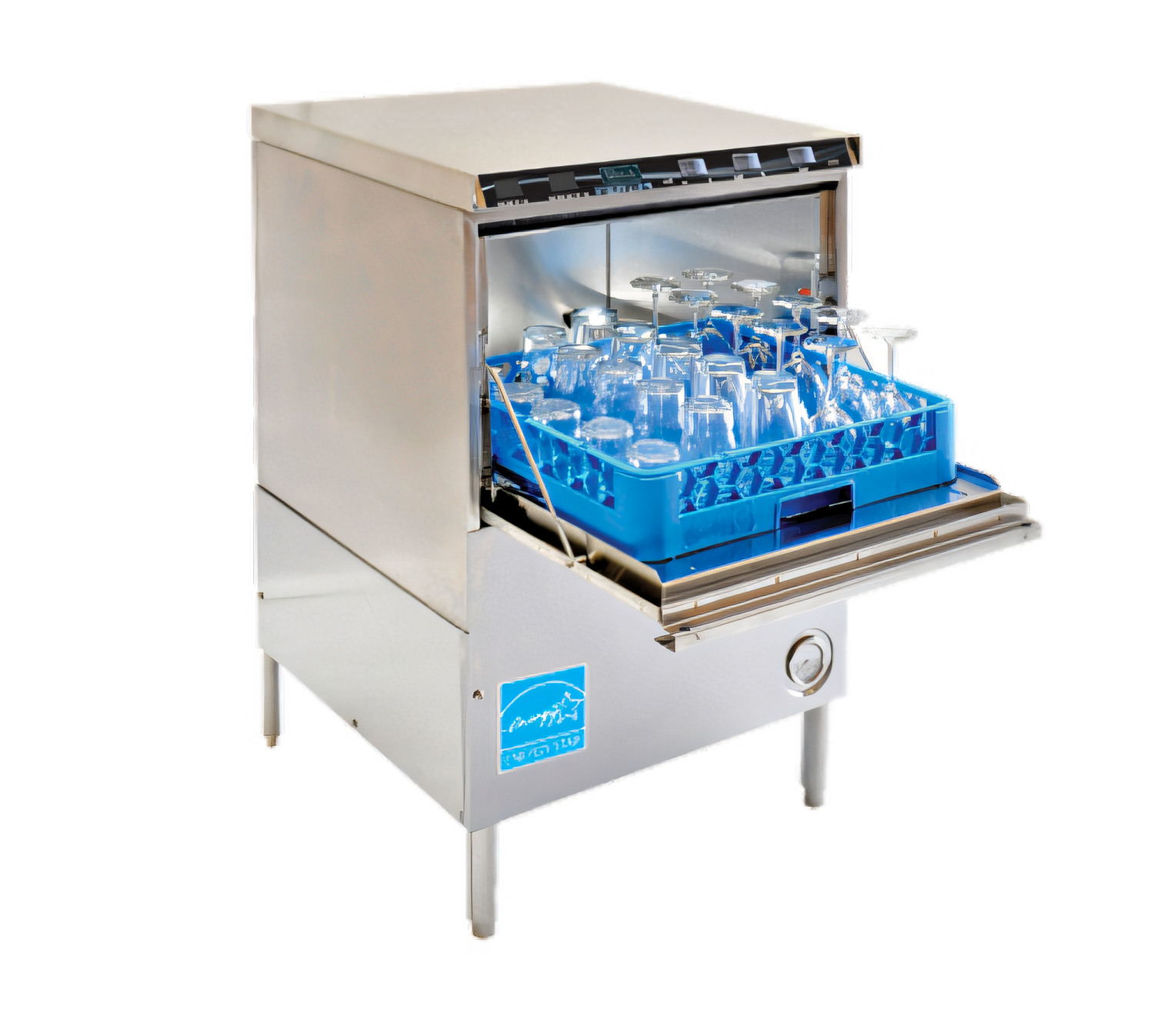

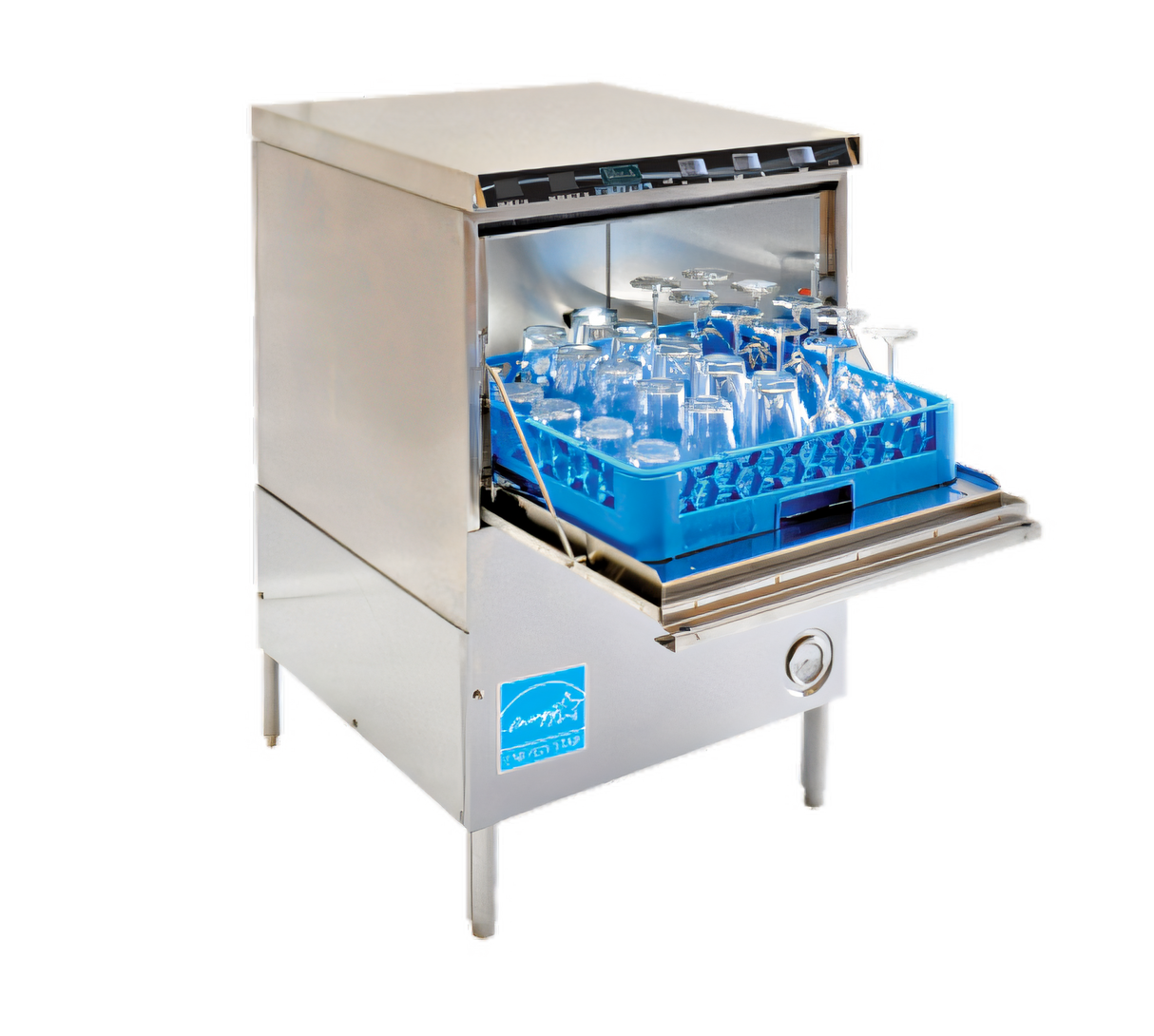

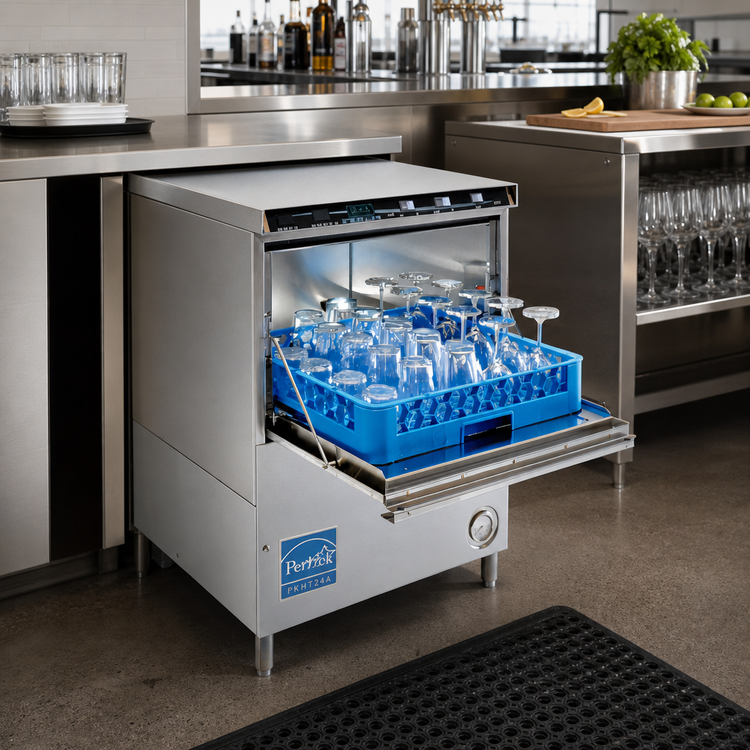

Perlick PKHT24A Door-Type High-Temperature Underbar Glasswasher with 5.3 kW Booster Heater, 24 Inch

30 Racks/Hour, 20" x 20" Rack, 208V/1 Phase

A compact high-temperature glasswasher built for fast, sanitary underbar service with a built-in booster heater and commercial-grade stainless steel construction.

  • High-temperature sanitizing design helps deliver a clean final rinse for glassware service.
  • Built-in 5.3 kW booster heater supports the required high-temp rinse cycle.
  • Processes up to 30 racks per hour, or about 600 glasses per hour.
  • Accepts 20" x 20" racks and handles glasses up to 11-1/4" high.
  • Top-mounted controls and digital LED temperature gauges simplify operation and monitoring.
  • Durable stainless steel construction includes removable front and side panels for easier servicing.
  • Includes one 16-compartment glass rack and 6" adjustable legs for leveling.

Overall Dimensions:

24.0"W x 25.0"D x 39.0"H

Product Weight:

234.0 lb

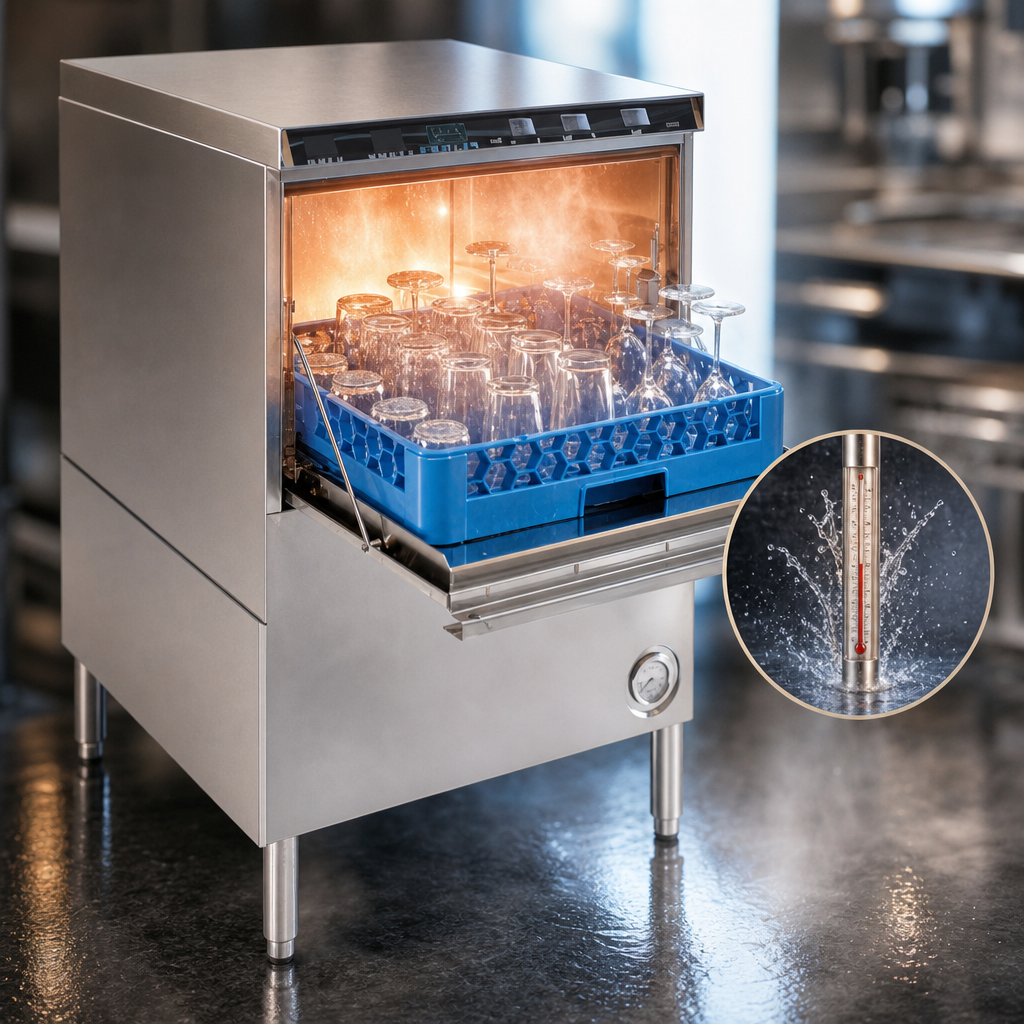

High-Temperature Sanitizing

Designed for high-temp operation to support sanitary final rinsing of glassware.

High-Temperature Sanitizing

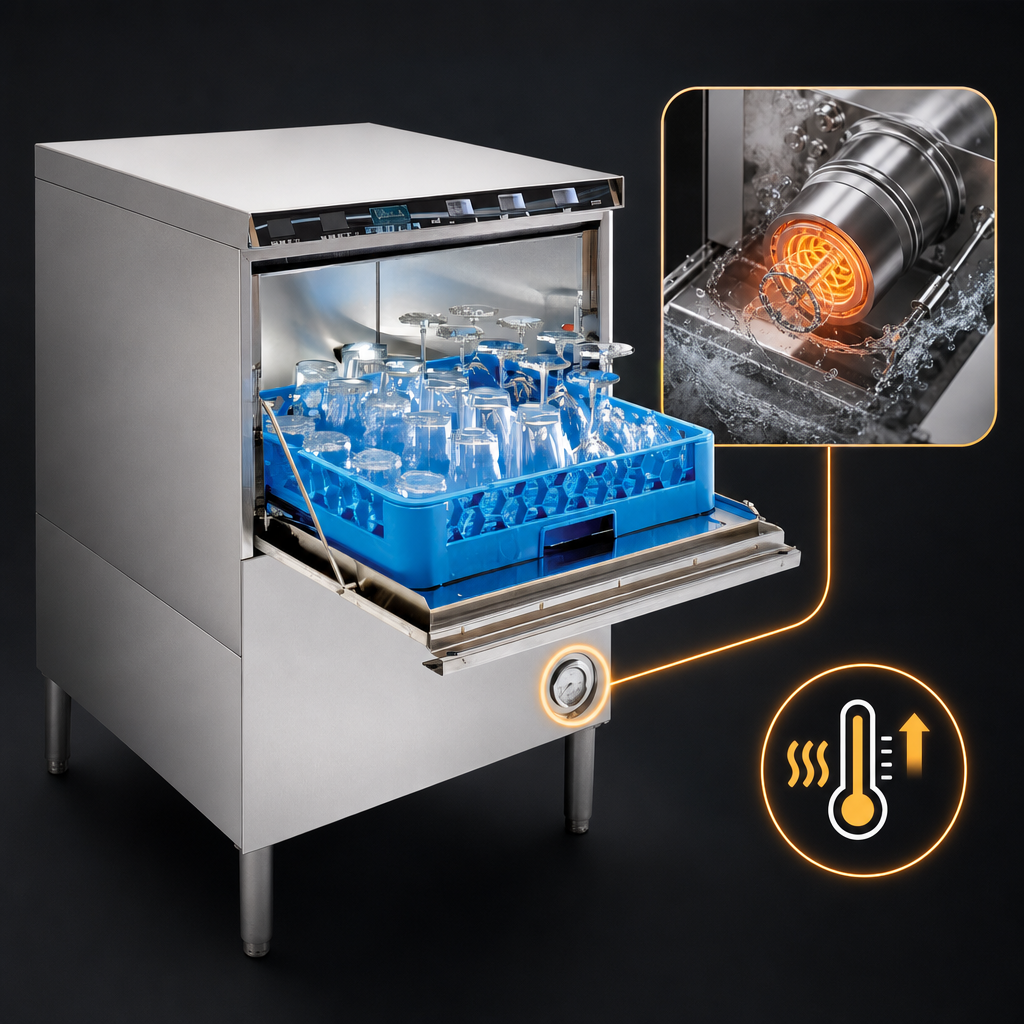

Built-In Booster Heater

The 5.3 kW booster heater helps the machine reach the temperature needed for the rinse cycle.

Built-In Booster Heater

30 Racks Per Hour Output

Built for fast underbar service with throughput rated at 30 racks per hour.

20" x 20" Rack Compatibility

Uses standard 20" x 20" racks and includes one 16-compartment glass rack.

11-1/4" Maximum Glass Height

Accommodates taller glassware up to 11-1/4 inches high.

Digital Top-Mounted Controls

Top-mounted controls with digital LED temperature gauges provide easy operation and temperature monitoring.

Rotating Upper and Lower Rinse Arms

Rotating rinse arms help provide thorough wash and rinse coverage.

Stainless Steel Construction

Stainless steel cabinet construction offers durability and easy cleaning.

Removable Front and Side Panels

Panels can be removed to simplify service access and maintenance.

6" Adjustable Legs

Adjustable legs help level the unit during installation.

1 HP Pump

Includes a 1 HP pump for commercial wash performance.

Type Glasswasher
Style Door Type
Installation Type Undercounter
Capacity 30 Racks Per Hour
Rack Size 20 x 20 Inches
Maximum Glass Height 11-1/4 Inches
Material Stainless Steel
Controls Digital
Voltage 208 Volts
Amps 33 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type Hardwired
Watts 5.3 kW
Pump Horsepower 1 HP
Water Connection Required
Drain Connection Required
Selling Unit Each
Units Per Case 1
Shipping Width 24 Inches
Shipping Depth 25 Inches
Shipping Height 39 Inches
Shipping Weight 234 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Quick set up guide PDF Download PDF Manual_ pkht24 PDF Download

Frequently Asked Questions

It is a high-temperature glasswasher with a built-in booster heater.
It uses 20" x 20" racks and includes one 16-compartment glass rack.
It requires 208V, 60Hz, single-phase power at 33 amps and is hardwired.
The maximum glass height is 11-1/4 inches.
It needs a hot water source between 120°F and 140°F and a floor drain with a 1-inch air gap.
It uses top-mounted controls with digital LED temperature gauges.
