Perlick Tobin Ellis Signature Modular Ice Vault Bar Ice Bin, 12 Inch Wide

SKU: ISC12
$4,847.15
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Bar Equipment Bar Ice Bins Best Sellers Beverage Equipment Beverage Equipment Beverage Equipment Equipment Ice Machines & Beverage Equipment New Arrivals Perlick Corporation Restaurant Equipment Underbar Equipment

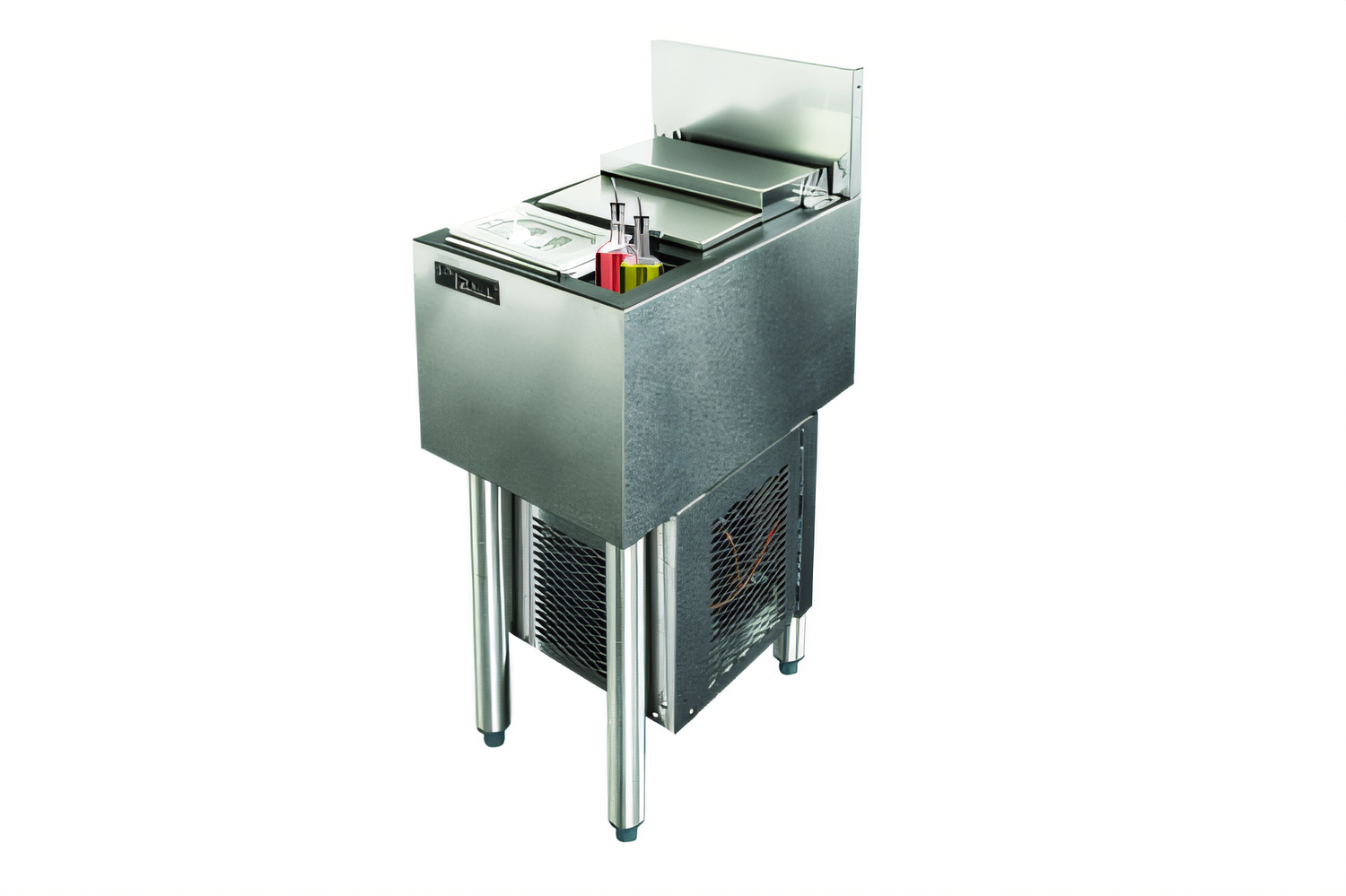

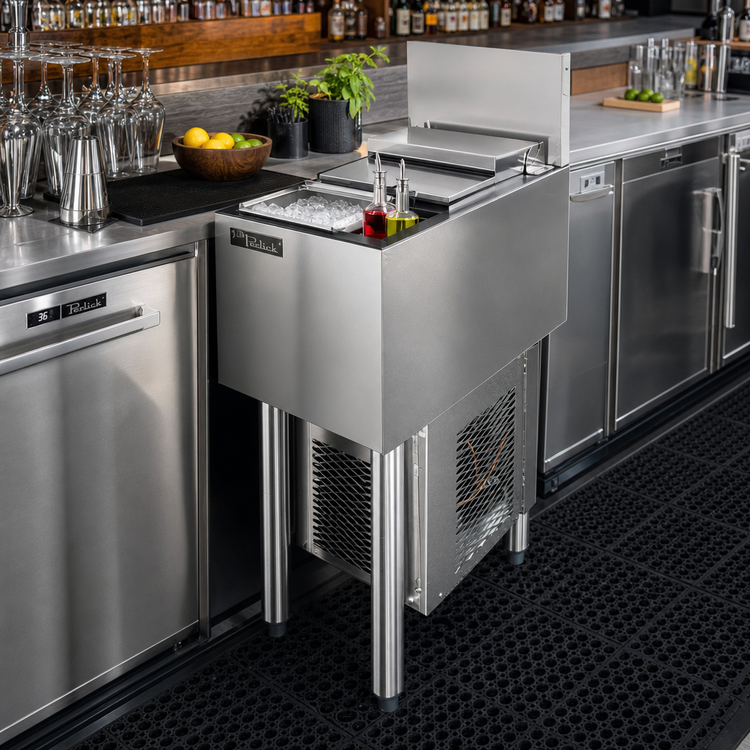

Perlick Tobin Ellis Signature Modular Ice Vault Bar Ice Bin, 12 Inch Wide

Large-Format Stainless Steel Ice Management System with VariChill Bottle Well

A compact, modular ice vault that combines deep ice wells, a chilled bottle well, and a telescoping lid in a durable stainless steel body.

  • Modular ice vault designed for efficient back-of-bar ice management.
  • Includes two 8-inch deep front and rear wells for organized storage and service.
  • VariChill adjustable-temperature bottle well helps keep bottles chilled.
  • Ice tempering pan supports smoother ice handling and prep.
  • Telescoping hinged lid helps protect contents while saving space.
  • Stainless steel construction is built for demanding commercial bar environments.

Overall Dimensions:

12.0"W x 16.88"D x 36.63"H

Product Weight:

85.0 lb

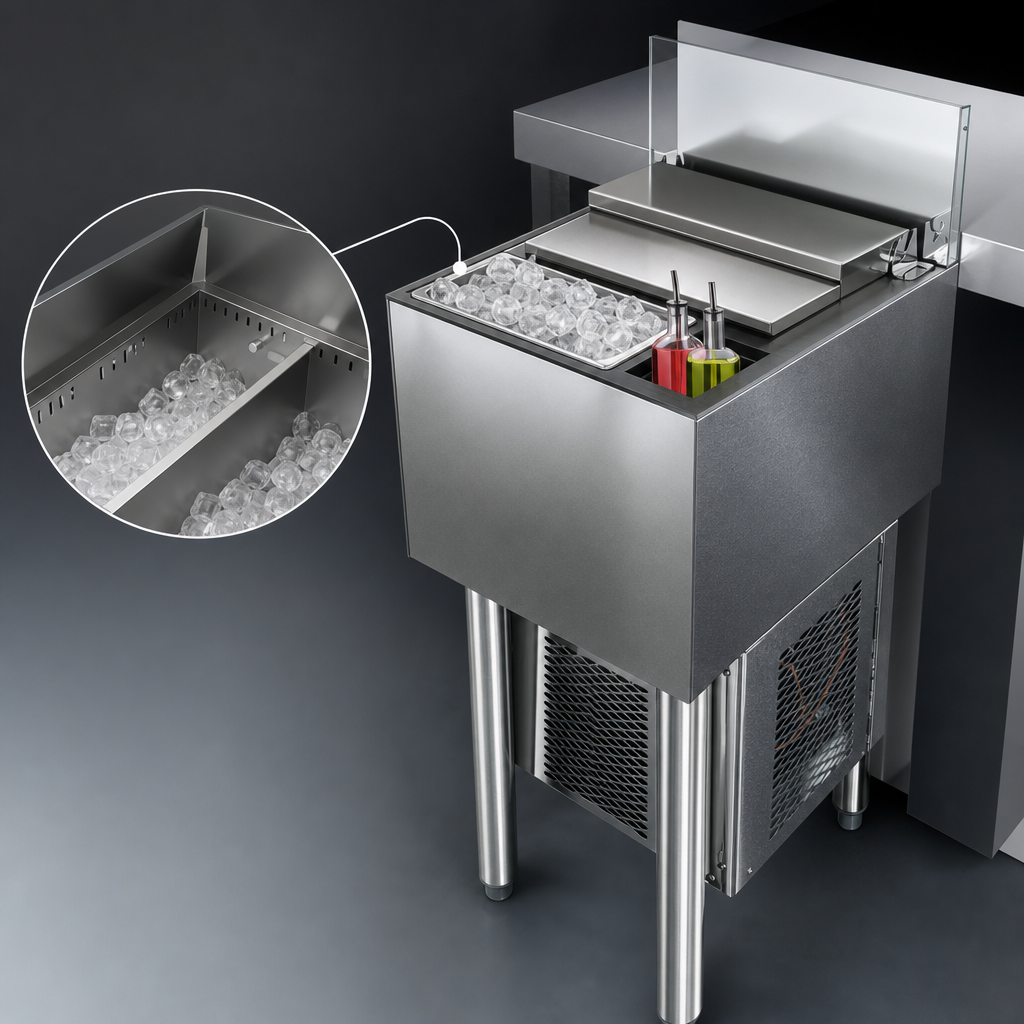

Patent-Pending Ice Management Design

Large-format modular layout helps organize ice and chilled bottles in a single bar station.

Patent-Pending Ice Management Design

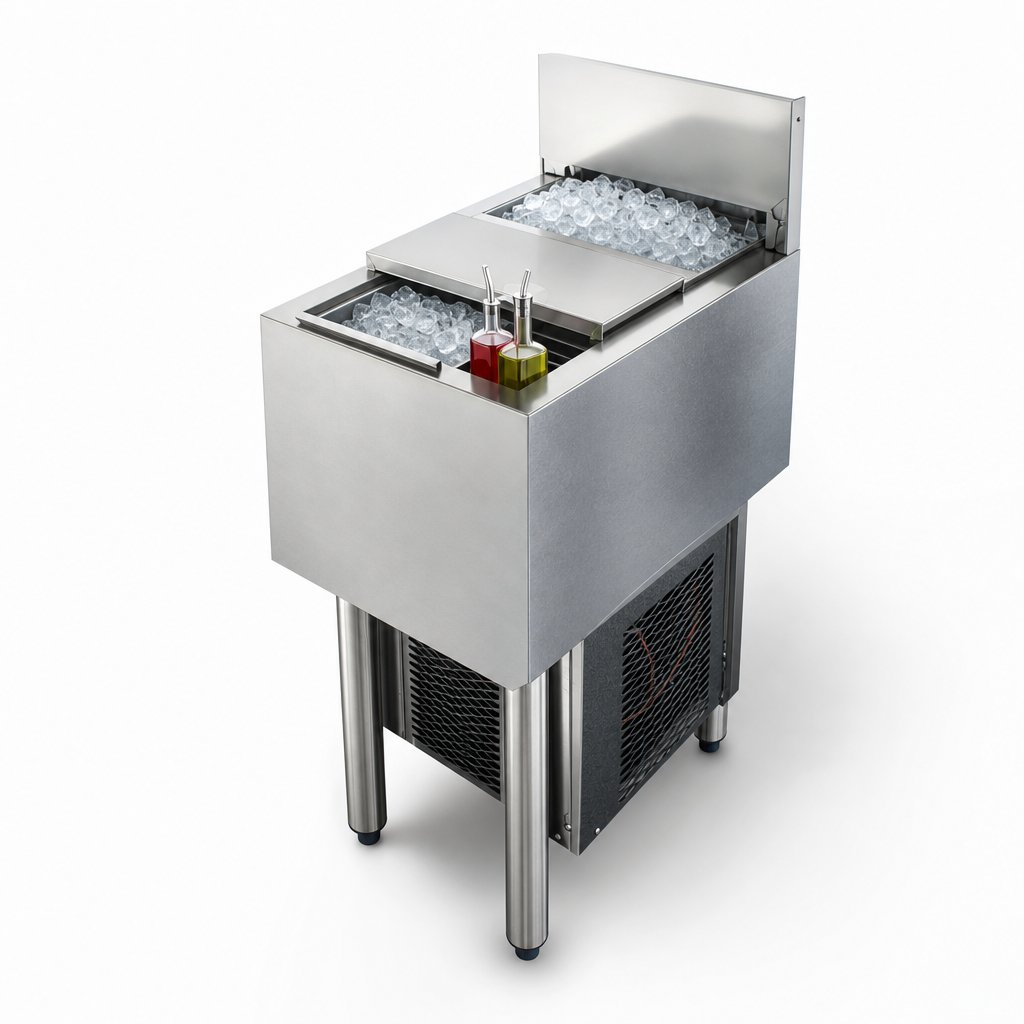

Dual 8-Inch Deep Wells

Front and rear wells provide dedicated space for ice storage and service workflow.

Dual 8-Inch Deep Wells

VariChill Adjustable Temperature Bottle Well

Allows operators to keep bottles chilled at the desired temperature.

Ice Tempering Pan

Included pan helps condition ice for more controlled bar service.

Telescoping Hinged Lid

Helps cover the unit when not in use while minimizing the space needed to open it.

Stainless Steel Construction

Durable, commercial-grade build suited to back-of-bar use.

R290 Refrigeration System

Uses R290 hydrocarbon refrigerant with a 1/10 HP compressor for refrigerated operation.

Type Ice Bin
Style Modular
Installation Type Floor Model
Material Stainless Steel
Refrigerant Type R290 Hydrocarbon
Horsepower 1/10 HP
Voltage 115 Volts
Amps 1.0 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 12 Inches
Shipping Depth 17 Inches
Shipping Height 37 Inches
Shipping Weight 85 lb.
Selling Unit Each
Units Per Case 1
Bin Depth 8 Inches
Splash 6 Inches

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Documents

PDF Cutsheet PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

The unit measures 12 Inches wide by 16.88 Inches deep by 36.63 Inches high and weighs 85 lb.
It uses R290 hydrocarbon refrigerant and a 1/10 HP compressor.
It operates on 115 Volts, 60 Hz, 1-Phase power and includes a cord with a NEMA 5-15P plug.
It includes two 8-inch deep front and rear wells, a VariChill adjustable-temperature bottle well, an ice tempering pan, and a telescoping hinged lid.
It is constructed of stainless steel for commercial durability.
No, the category attributes list it as without a cold plate.
