Perlick BBSN92 Four-Section Narrow Door Self-Contained Side-Mounted Back Bar Refrigerator, 92-Inch Wide

27.8 Cu. Ft., Black Exterior, Stainless Steel Interior

Built for tight back-bar spaces, this 92-inch refrigerator combines four locking narrow doors with front-vented self-contained cooling and precise digital control in a durable stainless steel cabinet.

  • 92-inch wide four-section back bar refrigerator with 27.8 cubic feet of refrigerated storage.
  • Narrow 20-inch doors help the cabinet fit tight spaces behind the bar.
  • Self-contained, front-vented refrigeration supports flexible installation with left- or right-side compressor placement.
  • Digital thermostat, automatic defrost, and LED interior lighting simplify daily operation.
  • Stainless steel interior, black exterior, and integrated door locks deliver durability and security.
  • R290 refrigerant and foamed-in-place insulation support efficient performance.

Overall Dimensions:

92.0"W x 24.75"D x 34.56"H

Product Weight:

577.0 lb
Proposition 65: The materials used in this product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov (nc)

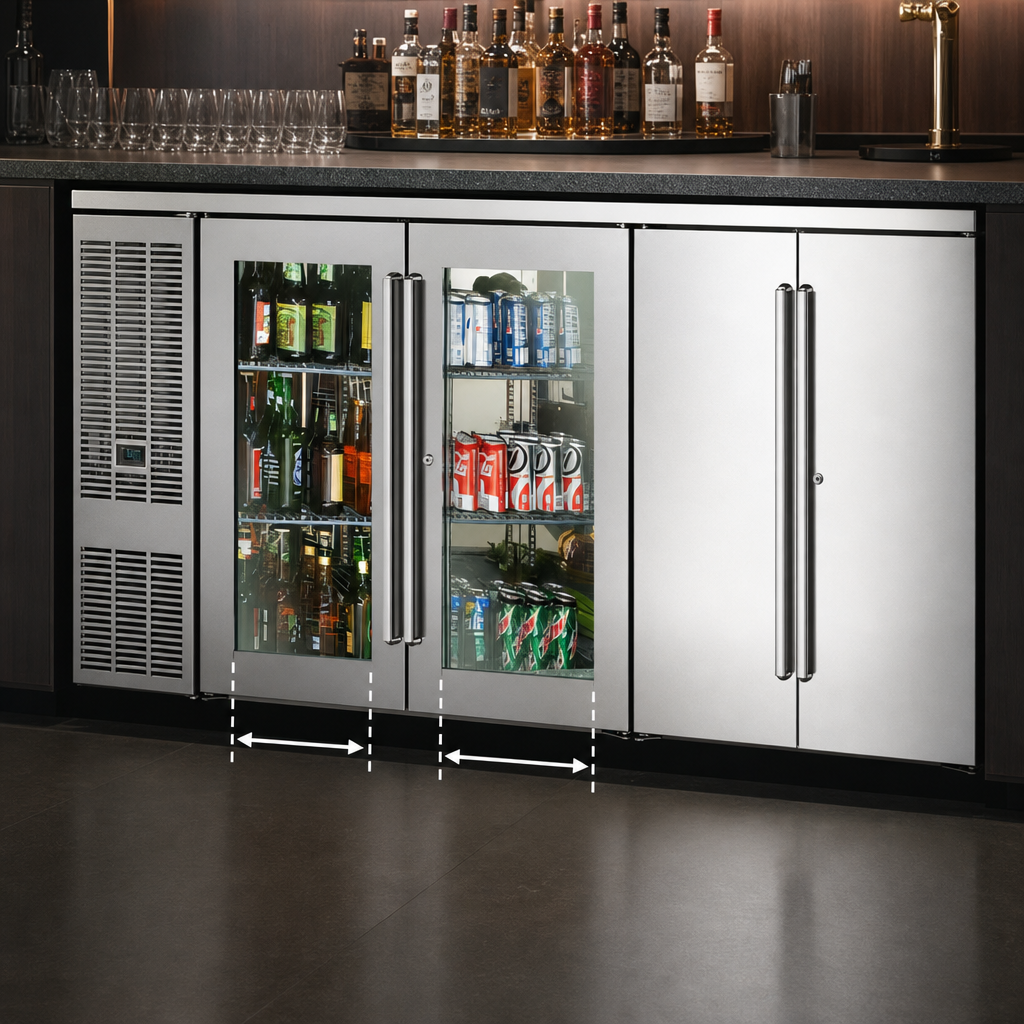

Narrow 20-Inch Doors

Doors are 16% smaller than standard to fit tight working spaces behind the bar.

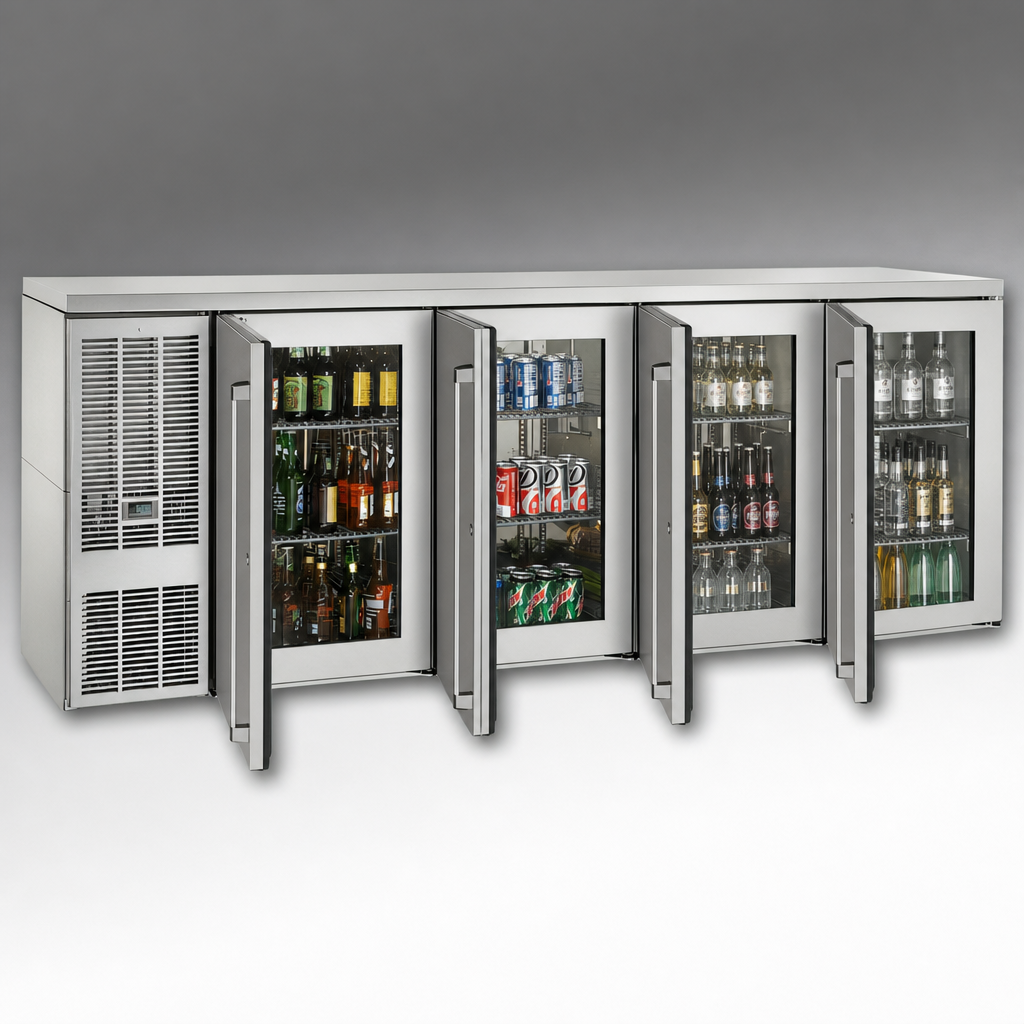

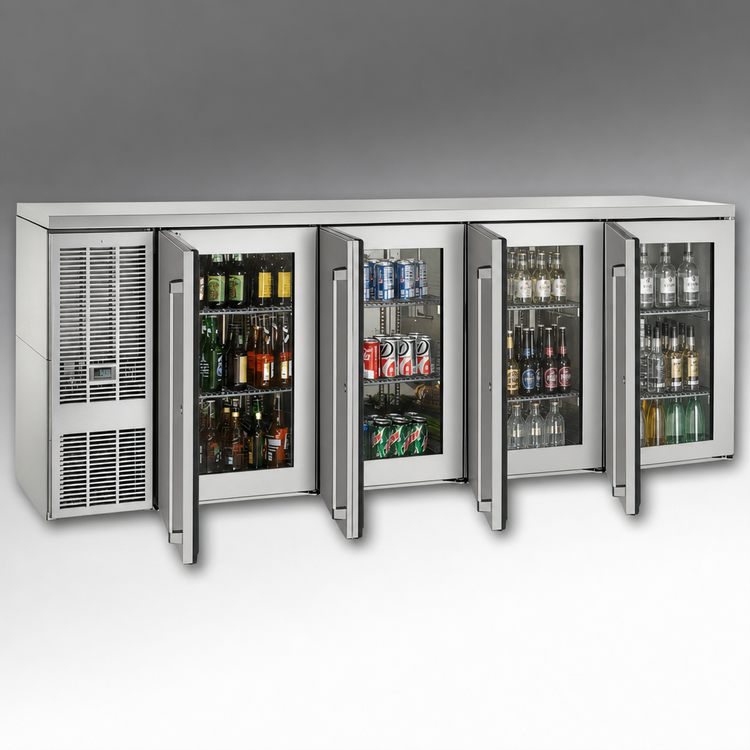

Four Locking Hinged Doors

Four refrigerated sections provide organized access and secure storage.

Self-Contained Front-Vented Refrigeration

End-wall compressor and evaporator design helps maximize storage capacity and supports flexible placement.

Digital Temperature Control

Digital thermostat allows precise temperature adjustment and is factory set to 38°F for refrigerator operation.

Automatic Defrost and Drain Management

Off-cycle automatic defrost and automatic evaporator condensate handling help reduce maintenance.

LED Interior Lighting

Bright LED lighting improves visibility inside the cabinet.

Stainless Steel Interior and Black Exterior

Durable, easy-to-clean construction with a stainless steel top for a professional look.

R290 Refrigerant and Foamed Insulation

R290 hydrocarbon refrigerant and 2-inch foamed-in-place insulation support efficient operation.

Anti-Sweat Protection

Cabinet-face heaters help limit condensation on the doors and protect the surrounding area.

Type Back Bar Refrigerator
Style Narrow Door
Installation Type Floor Model
Capacity 27.8 Cubic Feet
Compartments 4
Refrigeration Type Self-Contained
Controls Digital
Temperature Range 33°F to 40°F
Material Stainless Steel
Interior Finish Stainless Steel
Finish Black
BTU 2300 BTU/hr
Horsepower 1/4 HP
Refrigerant Type R290 Hydrocarbon
Voltage 120 Volts
Amps 4.2 Amps
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15
Cord Length 6 Feet 5 Inches
Country of Origin USA
Shipping Width 92 Inches
Shipping Depth 25 Inches
Shipping Height 35 Inches
Shipping Weight 577 Pounds
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1-year parts and labor; 5-year compressor warranty.

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Refrigeration mounting height reference PDF Download PDF Installation & operation PDF Download PDF Installation & operation PDF Download

Frequently Asked Questions

It has four hinged doors with integrated locks.
The cabinet has 27.8 cubic feet of interior volume.
It operates on 120 VAC, 60 Hz, single-phase power and uses a NEMA 5-15 plug with 4.2 running load amps.
The refrigerator configuration operates from 33°F to 40°F and is factory set to 38°F.
Yes. It uses automatic off-cycle defrost with automatic evaporator condensate handling.
The documentation lists a 1-year parts and labor warranty and a 5-year compressor warranty.
