Perlick Corporation

Perlick BBSN72 72-Inch Three-Door Narrow Refrigerated Back Bar Cabinet

SKU: BBSN72
$7,862.25
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Commercial Refrigeration Commercial Refrigerators New Arrivals Perlick Corporation Restaurant Equipment

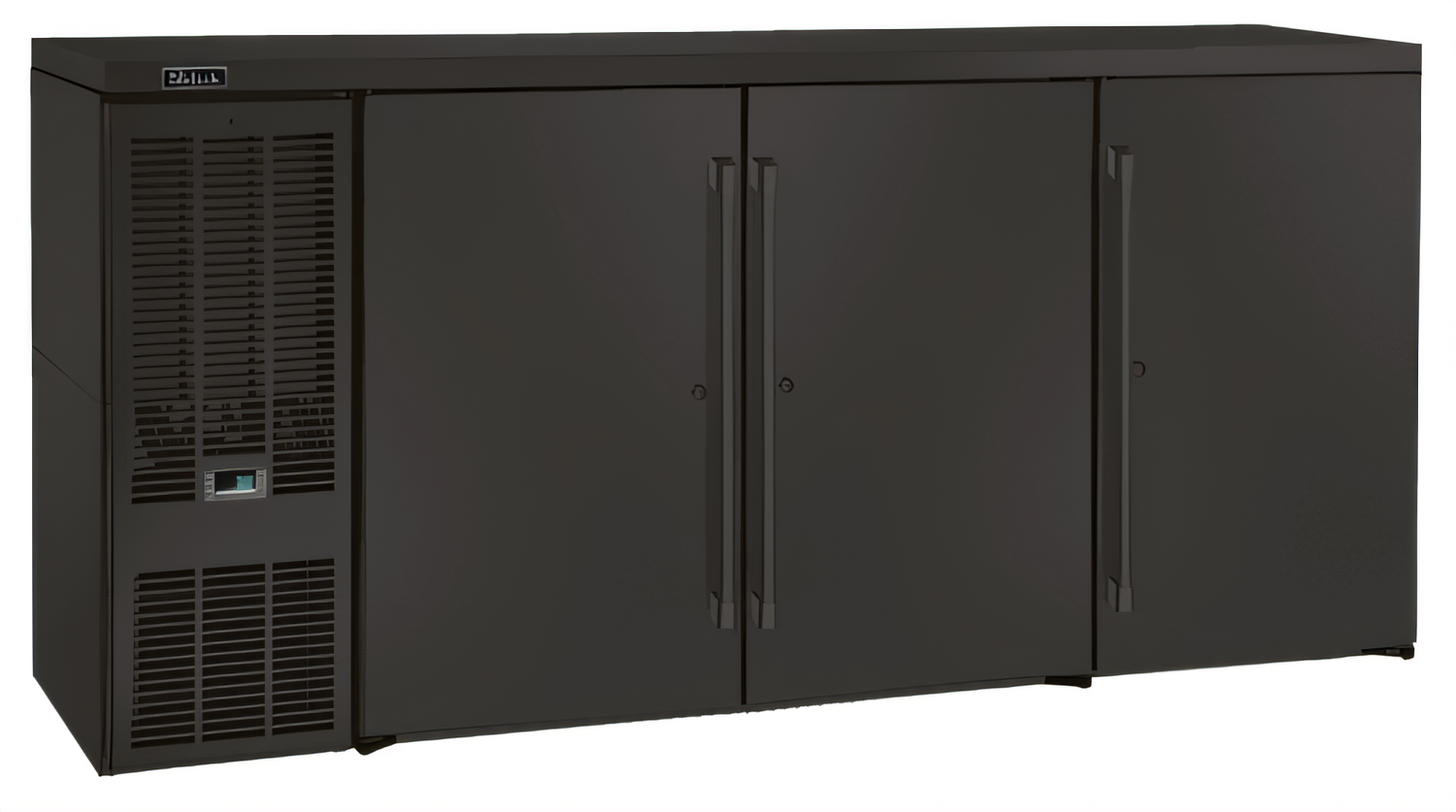

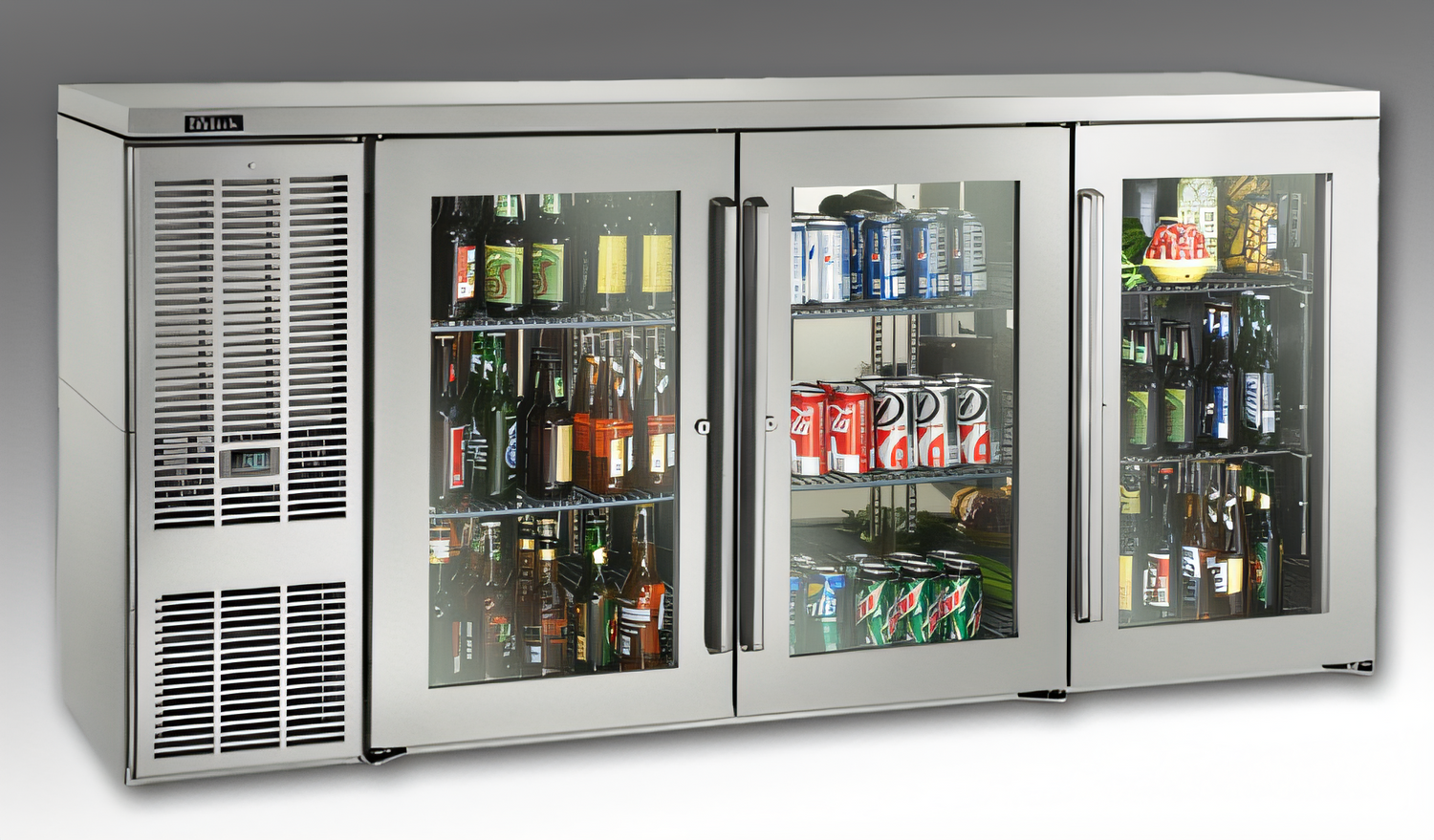

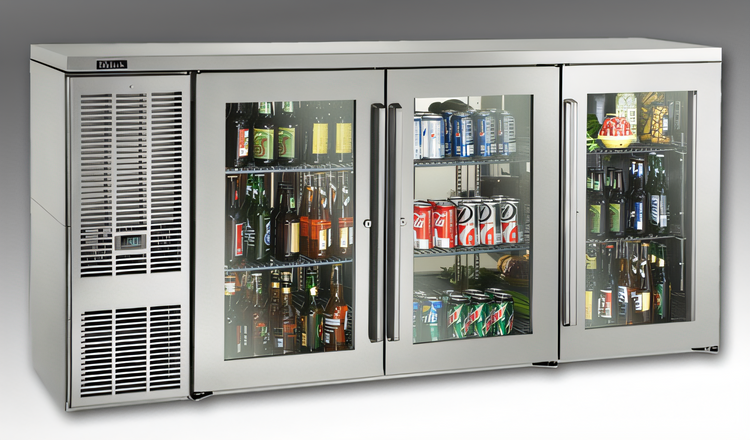

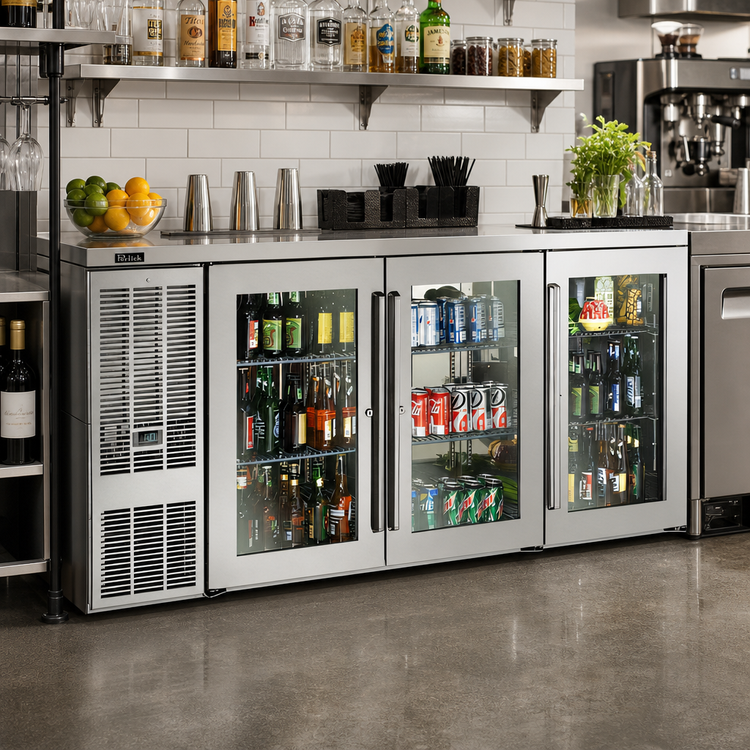

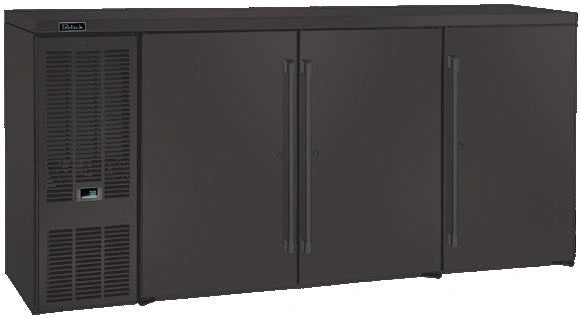

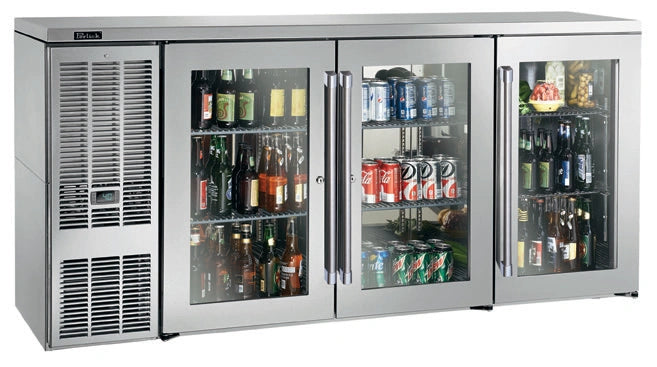

Perlick BBSN72 72-Inch Three-Door Narrow Refrigerated Back Bar Cabinet

Self-Contained, Side Mounted Compressor, Black Exterior

Designed for tight working spaces, the Perlick BBSN72 offers efficient, high-capacity refrigeration with narrow doors and versatile temperature settings.

  • Three narrow 20-inch doors accommodate confined back bar layouts, offering 16% smaller door swings than standard.
  • 20.6 cu. ft. internal volume provides ample storage for bottled beverages or open food.
  • Durable all stainless steel interior ensures long-lasting hygienic storage and easy cleaning.
  • Energy-efficient 2-inch foamed-in-place insulation with zero ozone depletion potential.
  • Integrated digital controller allows for precise temperature management and customization.
  • Side-mounted compressor design increases internal storage capacity by 14% compared to top-mounted units.
  • Configurable for refrigerator, white wine, or red wine temperature ranges to suit diverse needs.

Overall Dimensions:

72.0"W x 24.75"D x 34.56"H

Product Weight:

446.0 lb
Proposition 65: The materials used in this product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov (nc)

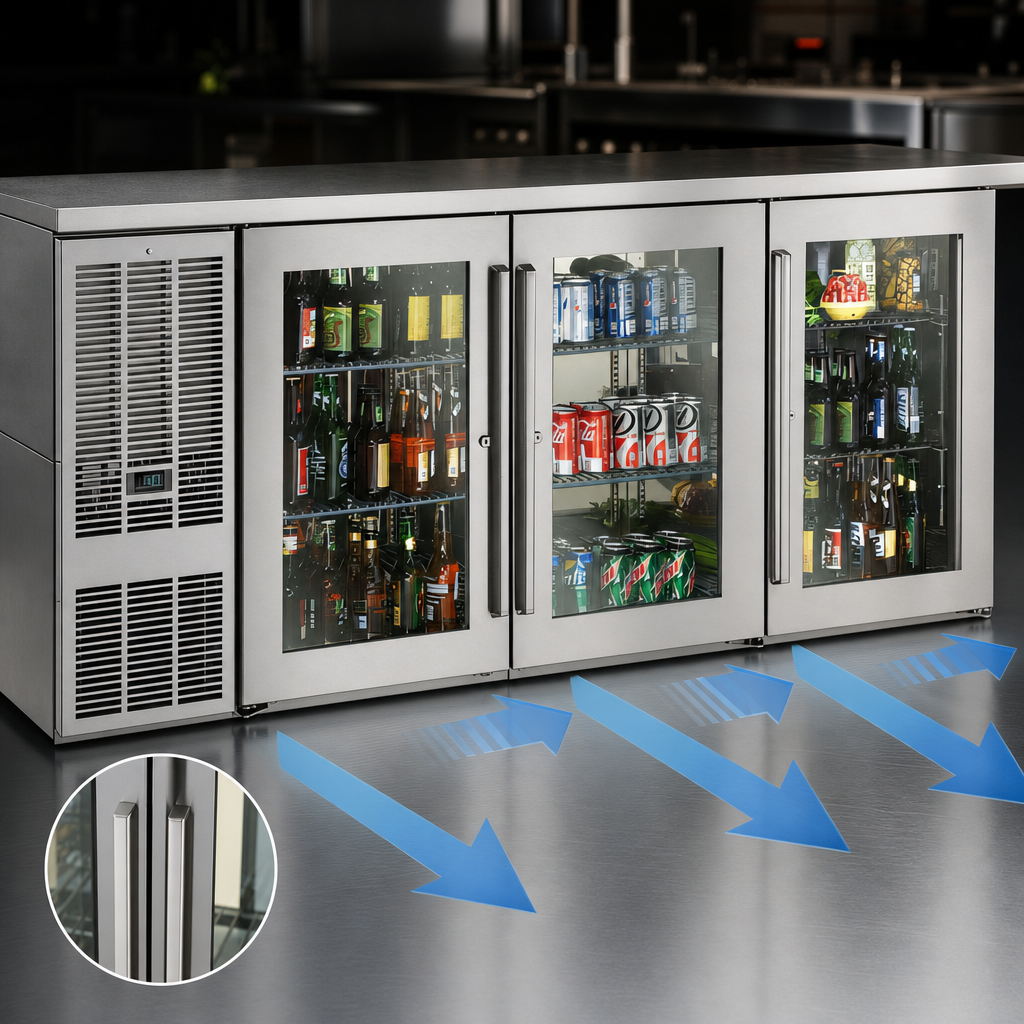

Narrow 20-Inch Doors

Doors are 16% smaller than standard, providing improved access and maneuverability in tight working spaces behind the bar.

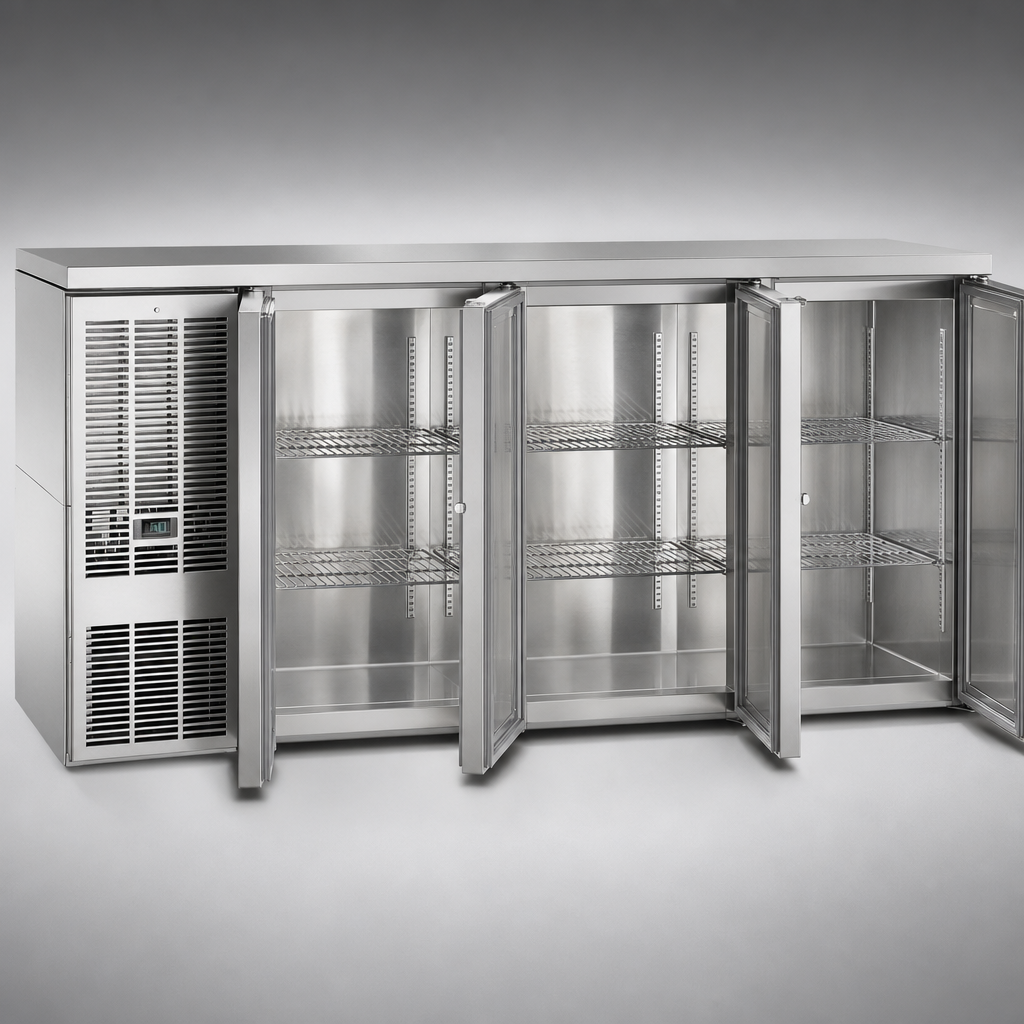

All Stainless Steel Interior

The cabinet interior is constructed entirely from stainless steel for exceptional durability, hygiene, and ease of cleaning.

Eco-Friendly Insulation

Features 2-inch thick foamed-in-place insulation using Ecomate, a blowing agent with zero-ozone depletion and zero global warming potential, ensuring energy savings.

Increased Storage Capacity

End wall compressor and evaporator design maximizes interior space, increasing storage capacity by 14% compared to traditional top-mounted designs.

Anti-Sweat Heaters

Cabinet face is equipped with anti-sweat heaters to prevent condensation, extending door gasket life and protecting flooring from moisture damage.

Integrated Door Locks

All hinged doors come standard with integrated locks for secure storage of valuable inventory.

NSF Rated Digital Controller

An NSF-rated digital thermostat provides easy and precise temperature adjustments for optimal cooling performance.

Automatic Defrost

Features automatic defrost with an off-cycle type, reducing maintenance and ensuring consistent cooling.

Front Vented

Designed with front venting for flexible installation options, including built-in applications.

Automatic Condensate Evaporator

Automatically evaporates condensate, eliminating the need for a drain line in many installations.

Type Back Bar Refrigerator
Style Narrow Door
Installation Type Floor Model
Compartments 3
Capacity 20.6 cu. ft.
Pan Capacity 518 Case Packed 12 oz. Bottles
Interior Finish Stainless Steel
Exterior Finish Black
Material Stainless Steel
Controls Digital
Temperature Range 33°F - 40°F (Refrigerator)
Refrigeration Type Self-Contained
Refrigerant Type R290 Hydrocarbon
BTU 2300 BTU/hr
Horsepower 1/4 HP
Defrost Type Automatic Off-Cycle
Lighting Type LED
Drain Connection Size 1 Inch NPS
Voltage 120 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 4.2 Amps
Plug Type NEMA 5-15
Cord Length 6' 5"
Shipping Width 72 Inches
Shipping Depth 25 Inches
Shipping Height 35 Inches
Shipping Weight 446 lb.
Selling Unit Each
Units Per Case 1
Country of Origin USA

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 Year Parts and Labor Warranty, 5 Year Compressor Warranty

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Installation & operation PDF Download PDF Installation & operation PDF Download PDF Refrigeration mounting height reference PDF Download

Frequently Asked Questions

The 20-inch narrow doors are 16% smaller than standard, making this cabinet ideal for installations with limited space behind the bar, allowing for easier access and improved workflow.
Yes, the Perlick BBSN72 is NSF/ANSI Standard 7 Listed for open food, beverage, and garnish storage when configured for refrigerator temperature (33°F-40°F). However, wine temperature settings are only certified for non-potentially hazardous bottled and canned beverage storage.
The unit can be configured for three temperature ranges: Refrigerator (34°F-42°F, factory set to 38°F), White Wine (40°F-65°F, factory set to 45°F), and Red Wine (40°F-65°F, factory set to 60°F). The general refrigerator temperature range is 33°-40°F.
Yes, the Perlick BBSN72 features a side-mounted pull-out condensing unit, allowing for easy access for servicing and maintenance.
The unit includes a floor drain, and its evaporator condensate is automatically evaporated. An optional floor access kit is available if a larger floor drain access is desired.
