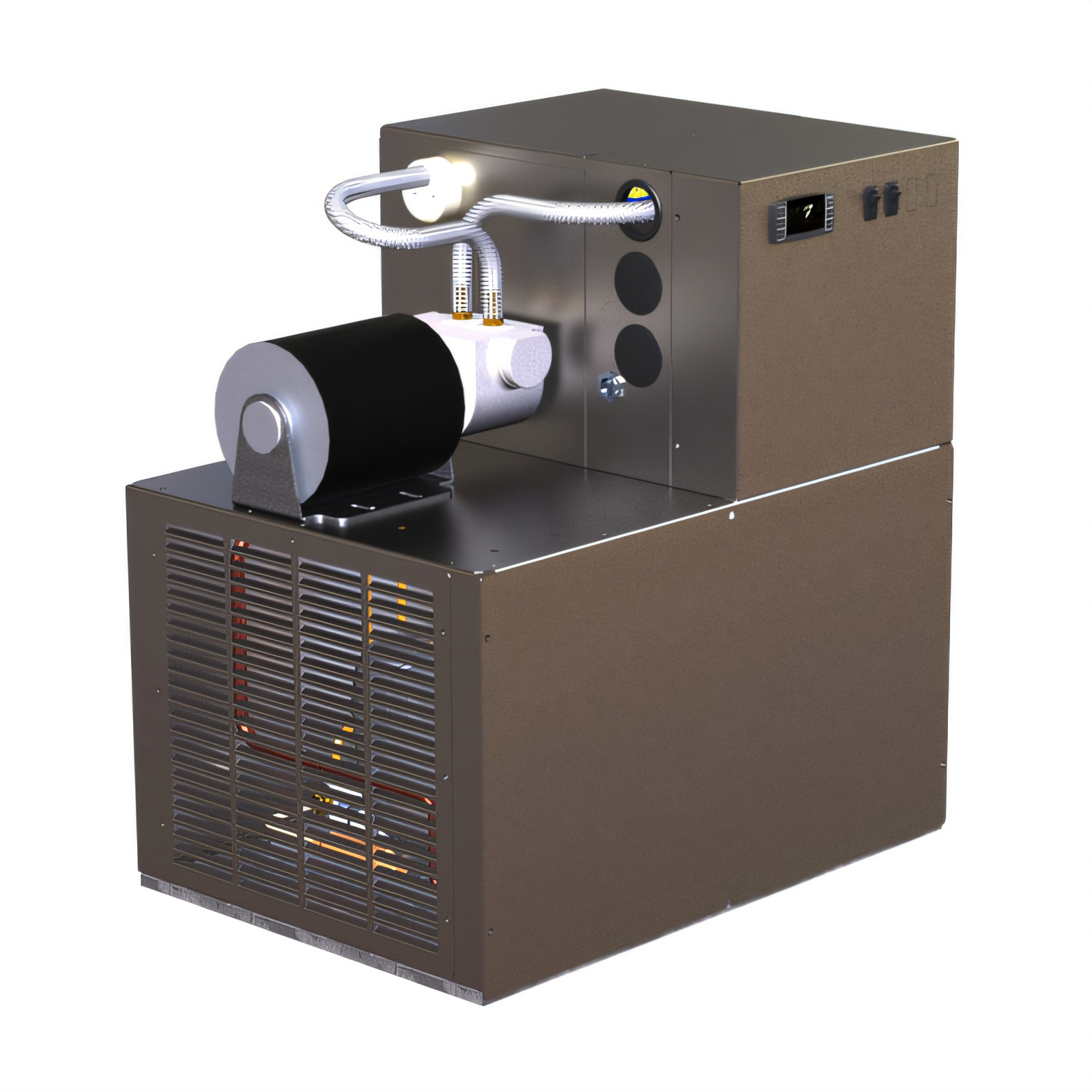

Perlick 4420W Century System Water-Cooled Glycol Power Pak, 1-1/2 HP

Full-Size, Water-Cooled, 1-1/2 HP, 100 GPH Pump

Efficiently cool your beverage lines with the Perlick 4420W Century System Power Pak, designed for demanding commercial applications with its water-cooled 1-1/2 HP compressor and high-capacity circulating pump.

  • Features a robust 1-1/2 HP compressor and a 100 GPH circulating pump for optimal glycol delivery.
  • Water-cooled design effectively removes heat, reducing the heat load on your conditioned interior space.
  • Adjustable electronic temperature control with digital readout ensures precise and consistent glycol temperatures.
  • Stainless steel cabinet provides durability and a professional appearance for commercial environments.
  • Equipped with a high-efficiency compact heat exchanger for superior performance over long beer runs.
  • Factory pre-mixed glycol guarantees immediate and reliable performance upon installation.

Overall Dimensions:

26.75"W x 20.25"D x 31.0"H

Product Weight:

255.0 lb

Water-Cooled Condenser

Utilizes water for cooling, efficiently dissipating heat and minimizing thermal impact on the surrounding indoor environment.

1-1/2 Horsepower Compressor

Powerful compressor ensures rapid and consistent cooling of the glycol solution for demanding beverage systems.

Adjustable Electronic Temperature Control

Precise temperature management with a digital readout allows operators to set and monitor glycol temperature with ease.

High Efficiency Heat Exchanger

Compact and efficient heat exchanger provides superior cooling performance, ideal for extended beer line runs.

Top Mounted Circulating Pump

Includes a 100 GPH, close-coupled circulating pump with a 1/3 HP ball bearing motor, designed for easy serviceability and reliable glycol circulation.

Stainless Steel Cabinet

Durable and corrosion-resistant stainless steel exterior ensures longevity and maintains a clean, professional look.

Constant Pressure Expansion Valve

Maintains optimal refrigerant flow for consistent cooling efficiency and performance.

Factory Pre-Mixed Glycol

Comes pre-charged with glycol to ensure immediate operational readiness and guaranteed performance.

Type Glycol Power Pak
Style Century System
Installation Type Floor Model (Optional Stand Required)
Cooling Water-Cooled
Horse Power 1-1/2 HP
Circulating Pump 100 GPH / 130 PSIG (MAX)
Controls Adjustable Electronic with Digital Readout
Material Stainless Steel
Refrigerant Type R-134a
Refrigerant Charge 22.0 oz
Refrigeration Type Constant Pressure Expansion Valve
Evaporator Rating 13800 BTUH @ 20°F
Heat of Rejection Max 6500 BTUH
Voltage 115-208/230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 20.8 Amps
Minimum Circuit Ampacity 25.3 Amps
Breaker Size 40 Amps
Plumbing Inlet & Outlet 1/2" O.D. Quick Connect Fittings
Water Flow Rate 1.2 GPM @ 75°F
Water Pressure Drop 0.5 PSIG
Max Water Supply Pressure 150 PSIG
Reservoir Capacity 1.75 Gallons
Glycol Concentration 30%
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 21 Inches
Shipping Height 31 Inches
Shipping Weight 255.0 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The Perlick 4420W requires a 4-wire AC power source (Ground, Neutral, Hot-Power, Hot-Power) for its 115-208/230V, 60Hz, Split Single Phase electrical connection.
No, the Perlick 4420W does not include legs. A set of four adjustable legs (Model #57782) or a stainless steel table stand (Model #C21499BSS) are available as optional accessories for freestanding installation.
The unit requires 1/2" O.D. Quick Connect fittings for both water inlet and outlet. The maximum incoming water supply pressure should not exceed 150 PSIG.
A minimum of six inches of clearance should be allowed around the entire unit for proper performance. Additional clearance should be considered for above and in front of the unit for serviceability.
Yes, the Perlick 4420W comes factory pre-mixed with glycol, guaranteeing performance upon installation. Additional food-grade glycol pre-mix (Model #63299-1) is available as an accessory.
