Perlick Corporation

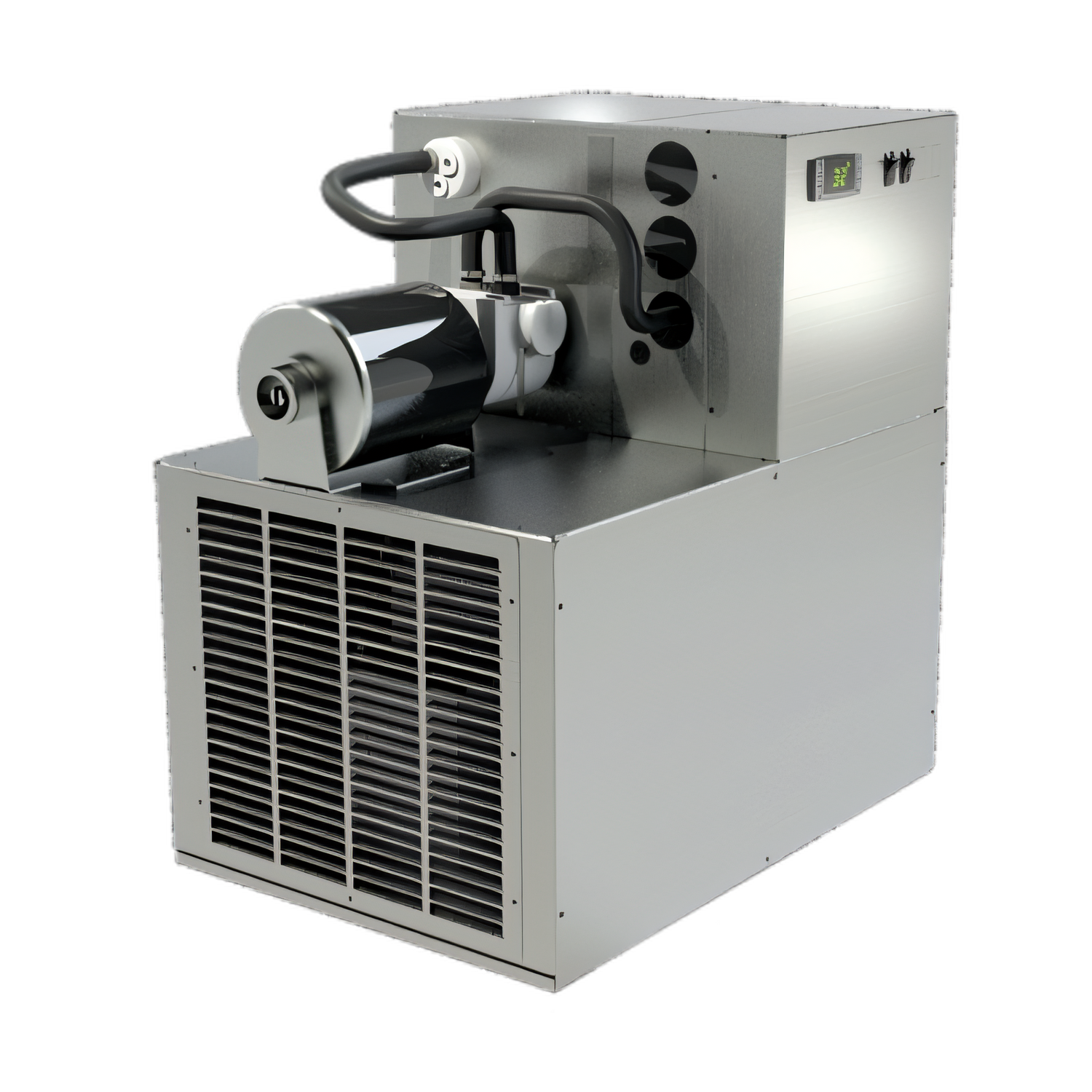

Perlick Century System Air-Cooled Power Pak, 1-1/2 HP, 1 Pump, 115-208/230V

SKU: 4420
$9,001.85
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Back Bar Coolers Back Bar Coolers Bar Equipment Bar Refrigeration Best Sellers Beverage Dispenser Parts & Accessories New Arrivals Perlick Corporation Restaurant Equipment Restaurant Equipment Parts

Perlick Century System Air-Cooled Power Pak, 1-1/2 HP, 1 Pump, 115-208/230V

1.75-Gallon Glycol Bath, Digital Temperature Control, Stainless Steel Cabinet

Built for beverage systems with long glycol runs, this air-cooled power pak combines a 1-1/2 HP compressor, a 100 GPH circulating pump, and digital temperature control in a stainless steel cabinet.

  • Air-cooled power pak designed for commercial beverage dispensing glycol systems.
  • 1-1/2 HP compressor and 100 GPH circulating pump support efficient cooling performance.
  • 1.75-gallon glycol bath and constant pressure expansion valve help maintain stable temperatures.
  • Adjustable electronic temperature control with digital readout simplifies monitoring and adjustments.
  • Stainless steel cabinet delivers durable commercial construction.
  • 115-208/230V, 60 Hz, single-phase operation with a 4-wire AC power source requirement.

Overall Dimensions:

26.75"W x 20.25"D x 31.0"H

Product Weight:

255.0 lb

Digital Temperature Control

Adjustable electronic control with digital readout lets operators monitor and fine-tune temperature settings.

100 GPH Circulating Pump

One circulating pump helps move glycol through the system for consistent beverage line cooling.

1.75-Gallon Glycol Bath

Compact reservoir capacity supports efficient cooling performance in a manageable footprint.

Factory Pre-Mixed Glycol

Factory pre-mixed glycol is used to help ensure superior cooling performance.

Constant Pressure Expansion Valve

The refrigeration system includes a constant pressure expansion valve and service valves for stable operation.

Stainless Steel Cabinet

Durable stainless steel cabinet construction is built for commercial beverage environments.

5-Year Compressor Warranty

The cut sheet lists a five-year compressor warranty.

Type Power Pak
Refrigeration Type Air Cooled
Compressor Horsepower 1-1/2 HP
Pumps 1
Controls Digital
Reservoir Capacity 1.75 Gallons
Material Stainless Steel
Voltage 115-208/230 Volts
Amps 21.9 Amps
Hertz 60 Hz
Phase 1-Phase
BTU 12,000 BTU/Hr at 20°F
Refrigerant Type R-134a
Shipping Width 27 Inches
Shipping Depth 21 Inches
Shipping Height 31 Inches
Shipping Weight 255 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty.

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is an air-cooled power pak that uses R-134a refrigerant and a constant pressure expansion valve.
This model includes one 100 GPH circulating pump.
It requires 115-208/230V, 60 Hz, 1-phase service, and the cut sheet notes a 4-wire AC power source requirement.
The glycol bath reservoir capacity is 1.75 gallons.
Yes. The cut sheet lists a 5-year compressor warranty.
Yes. The documentation notes that a Power Pak stand and legs are available separately for off-the-floor mounting.
