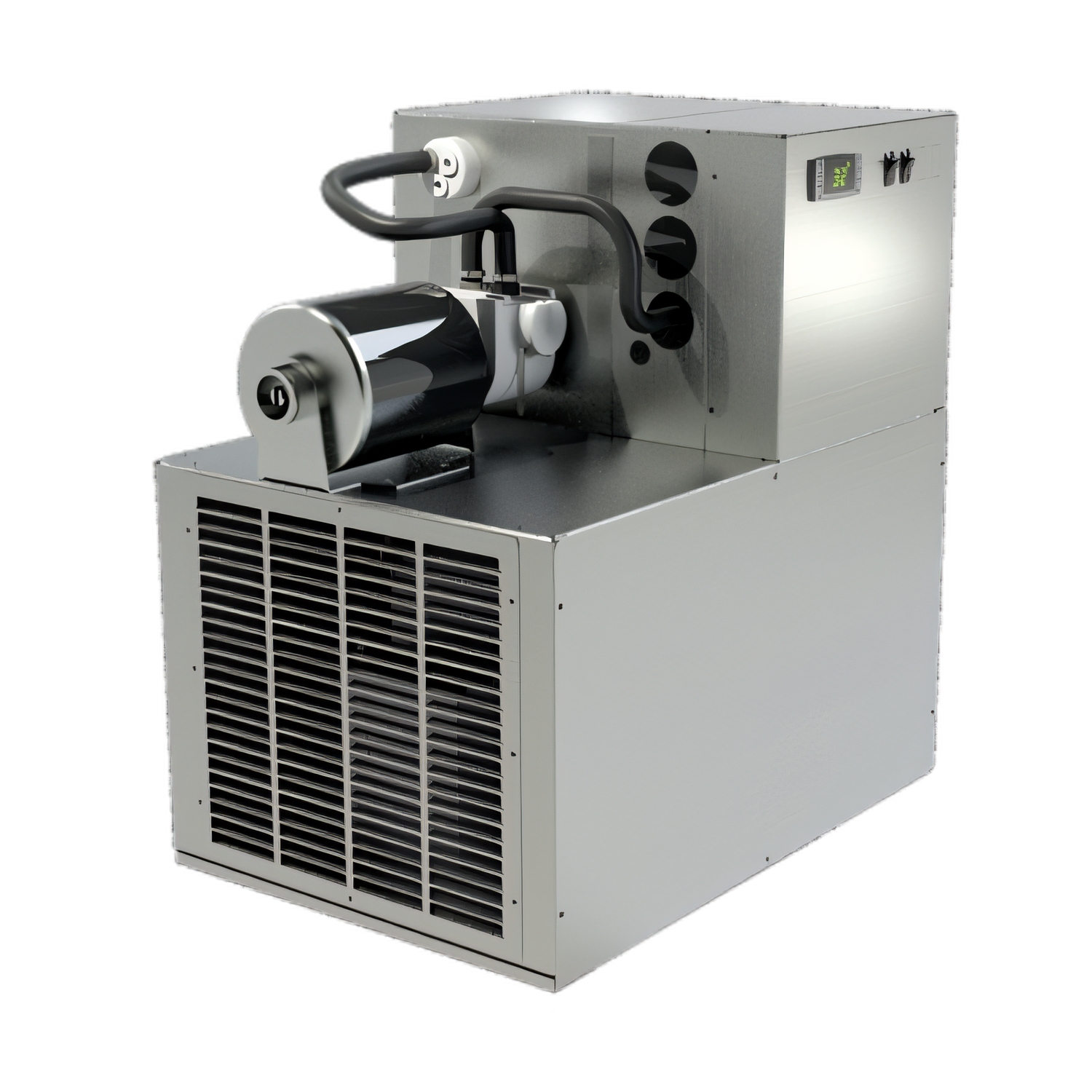

Perlick Century System Air-Cooled Glycol Power Pak, 1-1/2 HP, 3 Circulating Pumps, 115-208/230V

Stainless Steel Cabinet, 1.75-Gallon Reservoir, Digital Temperature Control

Ideal for long beverage line runs, this air-cooled Power Pak combines three circulating pumps, a 1.75-gallon glycol bath, and digital temperature control in a stainless steel cabinet.

  • Air-cooled glycol Power Pak built for dependable beverage line cooling.
  • Three 100 GPH circulating pumps support multi-line beverage applications.
  • Adjustable electronic temperature control with digital readout makes monitoring easy.
  • 1.75-gallon glycol bath and constant pressure expansion valve help maintain efficient performance.
  • Stainless steel cabinet offers durable commercial construction.
  • 115-208/230V, 60 Hz, single-phase electrical compatibility supports flexible installation.

Overall Dimensions:

26.75"W x 20.25"D x 31.0"H

Product Weight:

245.0 lb

Air-Cooled Operation

Designed for efficient cooling on long beverage line runs without the need for water-cooled operation.

Three Circulating Pumps

Includes three 100 GPH circulating pumps to support multiple beverage lines.

Electronic Temperature Control

Adjustable electronic control with digital readout simplifies temperature monitoring and adjustment.

Glycol Bath Reservoir

1.75-gallon glycol bath helps deliver stable, efficient cooling performance.

Constant Pressure Expansion Valve

Helps maintain consistent refrigeration performance in the cooling system.

Stainless Steel Cabinet

Stainless steel cabinet construction adds durability for commercial use.

Serviceable Pump Assembly

Top-mounted, close-coupled pump design is intended to make service access easier.

Off-the-Floor Mounting Options

Optional stand and legs are available for raised installation.

Type Power Pak
Style Air Cooled
Installation Type Freestanding
Material Stainless Steel
Horsepower 1-1/2 HP
Circulating Pumps 3
Circulating Pump Output 100 GPH
Reservoir Capacity 1.75 Gallons
Glycol Concentration 30%
Controls Digital
Voltage 115-208/230 Volts
Amps 27.5 Amps
Hertz 60 Hz
Phase 1-Phase
Refrigerant Type R-134a
Evaporator Rating 12,000 BTUH at 20°F
Heat Rejection 19,200 BTUH Max
Selling Unit Each
Units Per Case 1
Shipping Width 27 Inches
Shipping Depth 21 Inches
Shipping Height 31 Inches
Shipping Weight 245 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It is an air-cooled Century System Power Pak with R-134a refrigerant and a constant pressure expansion valve.
This model includes three circulating pumps rated at 100 GPH each.
The unit is rated for 115-208/230V, 60 Hz, single-phase power, and the spec sheet notes a 4-wire AC source requirement for split single-phase service.
Listed accessories include adjustable legs, a stainless steel table stand, dual-tier and triple-tier racks, an overflow bottle kit, a coolant backflow preventer kit, food-grade glycol pre-mix, and an optional second-year warranty.
