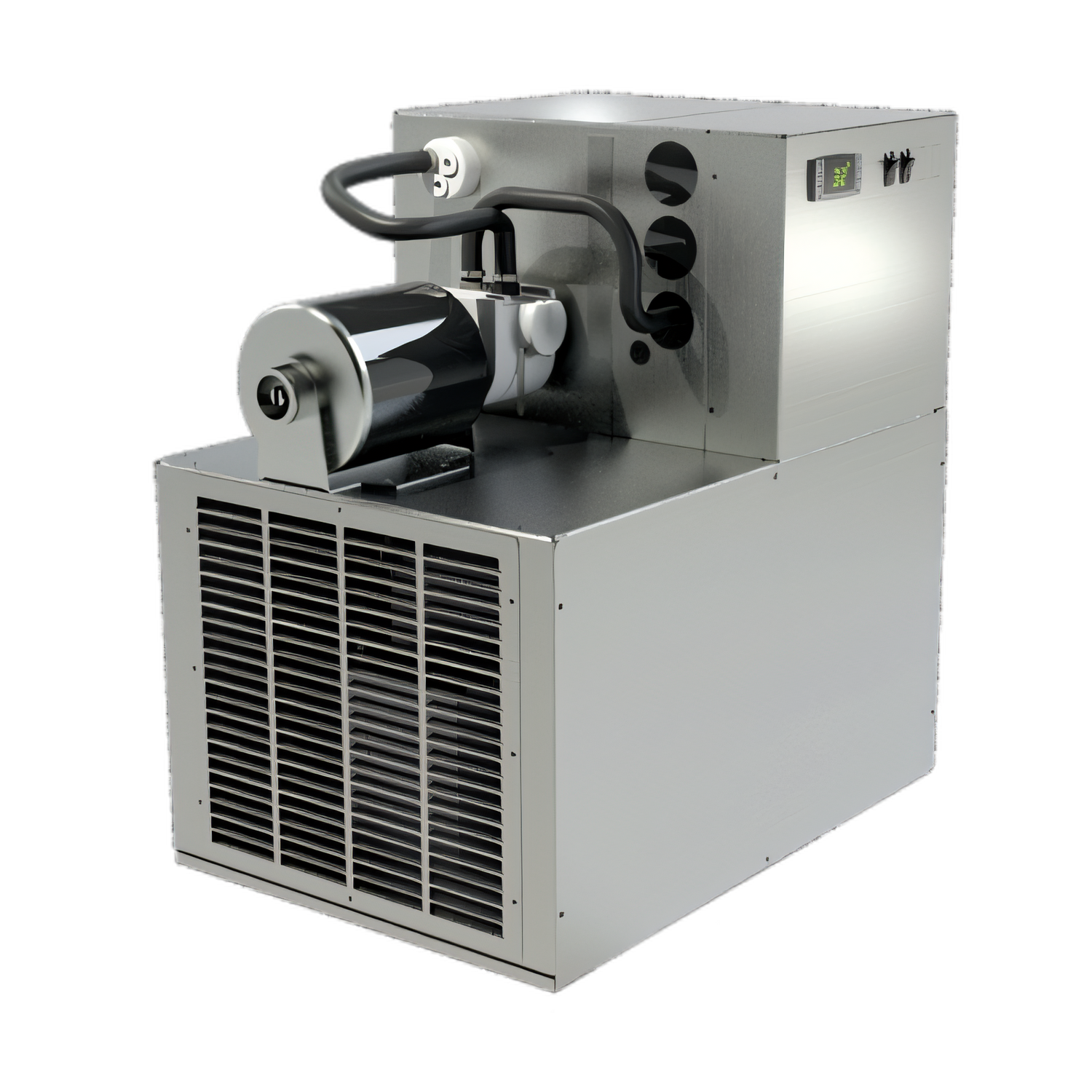

Perlick 4420-2 Century System Air-Cooled Glycol Power Pak, 1-1/2 HP

Air-Cooled, 1-1/2 HP, Dual Pump, 1.75 Gallon Glycol Bath

Ensure optimal beverage temperature and superior cooling performance for long runs with the robust Perlick 4420-2 Century System Air-Cooled Glycol Power Pak.

  • Delivers superior cooling performance with a high-efficiency heat exchanger and 100 GPH glycol pumps.
  • Features a digital display for precise temperature monitoring and easy adjustments.
  • Equipped with a top-mounted, close-coupled pump and motor assembly for straightforward serviceability.
  • Includes a 1.75 gallon glycol bath, pre-mixed at the factory to guarantee consistent cooling.
  • Constructed with a durable stainless steel cabinet, designed for commercial longevity and reliability.

Overall Dimensions:

26.75"W x 20.25"D x 31.0"H

Product Weight:

255.0 lb

Digital Temperature Control

An adjustable electronic temperature control with a digital readout allows for precise temperature monitoring and easy adjustments to maintain optimal cooling.

Superior Cooling Technology

Features a highly efficient, compact heat exchanger and 100 gallon per hour glycol circulating pumps for superior cooling performance on long beverage runs.

Dual Circulating Pumps

Comes equipped with two 100 GPH circulating pumps, ensuring robust and consistent glycol circulation.

Easy Serviceability

The top-mounted, close-coupled pump and 1/3 HP ball bearing motor assembly are designed for easy access and simplified servicing.

Factory Pre-Mixed Glycol

Utilizes factory pre-mixed glycol, guaranteeing superior cooling performance right out of the box.

Efficient Glycol Bath

Features a highly efficient 1.75 gallon glycol bath capacity to maintain consistent temperatures.

Durable Construction

Built with a stainless steel cabinet, offering durability and a professional appearance suitable for commercial environments.

Constant Pressure Expansion Valve

Includes a constant pressure expansion valve and a condensing unit with service valves for reliable refrigeration system operation.

Type Century System Power Pak
Style Air-Cooled
Horse Power 1-1/2 HP
Pumps 2
Voltage 115-208/230 Volts
Hertz 60 Hz
Phase 1-Phase
Amps 24.7 Amps
Min Circuit Ampacity 29.2 Amps
Breaker Size 45 Amps
Refrigerant Type R-134a
Refrigeration Type Constant Pressure Expansion Valve
Refrigerant Charge 16.0 oz
Evaporator Rating @ 20°F 12000 BTUH
Heat of Rejection Max 19200 BTUH
Capacity 1.75 Gallons (Glycol Bath)
Glycol Concentration 30%
Circulating Pump Flow Rate 100 GPH
Material Stainless Steel
Controls Adjustable Electronic with Digital Readout
Shipping Width 27 Inches
Shipping Depth 21 Inches
Shipping Height 31 Inches
Shipping Weight 230 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

5-year compressor warranty

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The Perlick 4420-2 Century System Power Pak is equipped with a 1-1/2 HP compressor.
This unit requires a 115-208/230V, 60Hz, 1-Phase electrical connection, specifically a 4-wire AC power source (Ground, Neutral, Hot-Power, Hot-Power).
The Perlick 4420-2 features a 1.75 gallon glycol bath with a factory pre-mixed 30% glycol concentration.
The Perlick 4420-2 uses R-134a refrigerant, with a charge of 16.0 oz (454 g).
A minimum of six inches of clearance should be allowed around the entire unit for proper performance, with additional clearance considered for above and in front for serviceability.
