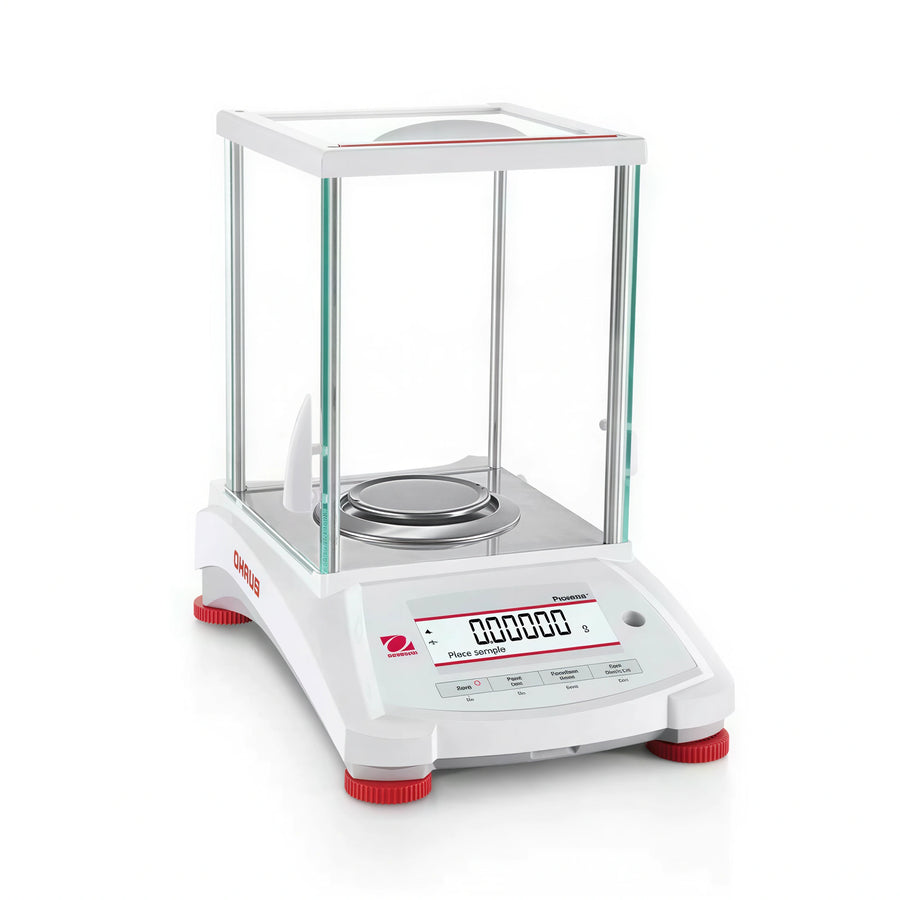

Penn Scale Ohaus® PX4202/E Digital Analytical Balance, 4200 g x 0.01 g, Internal Calibration, Removable Stainless Steel Pan

SKU: PX4202/E
$1,760.45
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Portion Control Food Scale Portion Scales Restaurant Equipment

PX4202/E is a digital analytical precision balance with a 4,200 g capacity and 0.01 g readability. ExCal internal calibration, a removable stainless steel pan and a backlit LCD support routine weighing and measurement tasks.

  • Applications include basic weighing, parts counting, percent weighing, animal weighing and density determination.
  • USB and RS-232 ports provide connectivity to computers and PLCs.
  • The balance includes stability, overload and underload indicators, an integrated weigh-below hook and a security bracket.

Overall Dimensions:

8.2"W x 12.6"D x 3.9"H

Product Weight:

11.0 lb

Capacity and readability

Weighs up to 4,200 g with 0.01 g readability.

ExCal internal calibration

Provides internal calibration with user-selectable span calibration points.

Weighing applications

Supports basic weighing, parts counting, percent weighing, animal weighing and density determination.

Removable stainless steel pan

Uses a removable round stainless steel pan measuring 7.09 inches in diameter.

Display and indicators

Includes a backlit LCD display with stability, overload and underload indicators.

Connectivity

Provides RS-232 and USB ports for connectivity to computers and PLCs.

Integrated weigh-below hook

Includes an integrated weigh-below hook for supported weighing applications.

Security bracket

Includes a security bracket.

Capacity 4,200 g
Readability 0.01 g
Calibration ExCal internal calibration
Repeatability (STDEV) 0.01 g
Linearity ±0.02 g
Stabilization time 1 second
Pan diameter 7.09 in.
Platform type Round
Platform construction Stainless steel
Housing construction Plastic ABS top housing; cast-metal lower housing
Display Backlit LCD
Connectivity RS-232 and USB
Applications Basic weighing; parts counting; percent weighing; animal weighing; density determination
Weighing units mg, g, kg, oz., lb., ct., pennyweight, Troy oz., grain, Newton, Hong Kong tael, Singapore tael, Taiwan tael, Momme, tical (mm), mesghal, tola (India), and 1 custom unit
Power supply 100–240 V, 50/60 Hz, 1 phase, 12–18 VA input; 12 VDC, 0.5 A output
Operating temperature 50–86 °F (10–30 °C); operability guaranteed between 41–104 °F (5–40 °C)

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The balance has a 4,200 g capacity and 0.01 g readability.
The PX4202/E uses ExCal internal calibration and has user-selectable span calibration points.
Supported applications are basic weighing, parts counting, percent weighing, animal weighing and density determination.
It has a removable round stainless steel pan measuring 7.09 inches in diameter.
The balance provides RS-232 and USB ports.
The product measures 8.2 inches wide by 12.6 inches deep by 3.9 inches high.
The power input is 100–240 V, 50/60 Hz, single phase, 12–18 VA. The power output is 12 VDC at 0.5 A.
