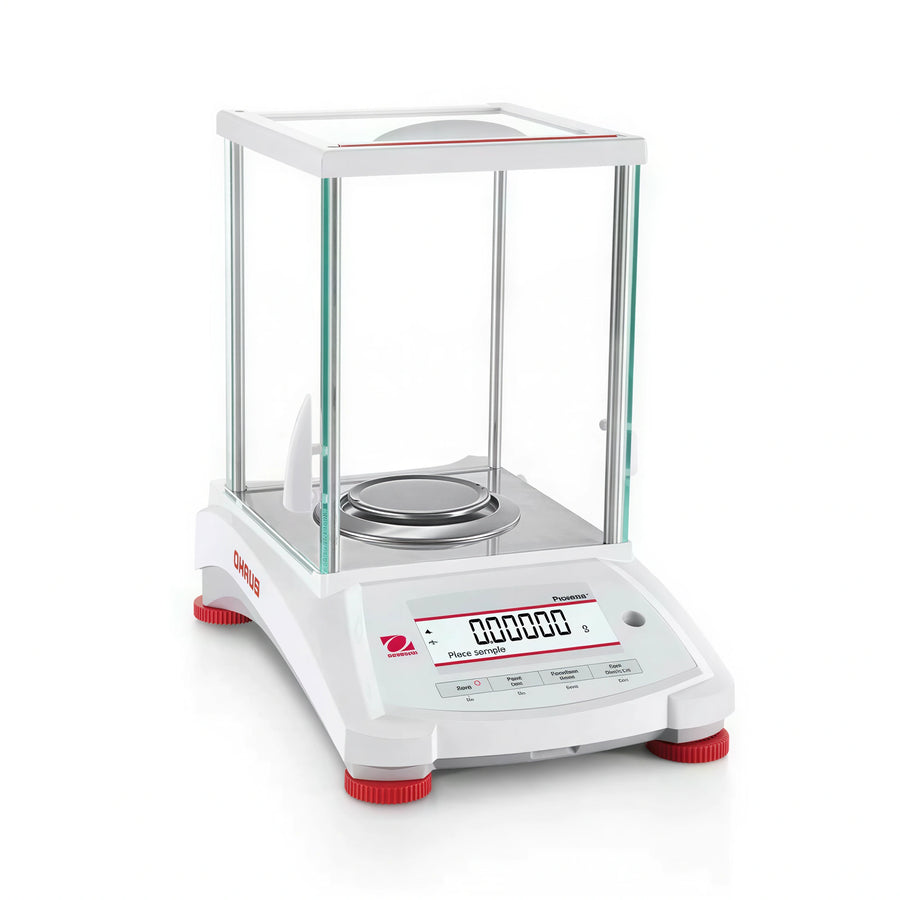

Penn Scale Ohaus® PX323 Digital Analytical Precision Balance, 320 g x 0.001 g, Internal Calibration, Removable Stainless Steel Pan

SKU: PX323
$1,722.43
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Portion Control Food Scale Portion Scales Restaurant Equipment

The Ohaus® Pioneer® PX323 is a digital analytical precision balance with a 320 g capacity, 0.001 g readability, and InCal™ internal calibration.

It supports basic weighing, parts counting, percent weighing, animal weighing, and density determination. The balance includes a removable stainless steel pan, glass draftshield, backlit two-line LCD display, RS-232 and USB ports, and an integrated weigh-below hook.

  • 320 g capacity with 0.001 g readability
  • InCal™ internal calibration with user-selectable span calibration points
  • Removable 4-3/4 in. diameter stainless steel pan
  • Glass draftshield measuring 6.8 × 5.2 × 8.1 in.
  • RS-232 and USB connectivity
  • Stability, overload, and underload indicators

Overall Dimensions:

8.2"W x 12.6"D x 12.2"H

Product Weight:

15.4 lb

InCal™ internal calibration

Internal calibration is supported, with user-selectable span calibration points.

Multiple weighing applications

Applications include basic weighing, parts counting, percent weighing, animal weighing, and density determination.

Removable stainless steel pan

The balance has a removable 4-3/4 in. diameter stainless steel pan.

Glass draftshield

The glass draftshield measures 6.8 × 5.2 × 8.1 in. (172 × 131 × 205 mm).

RS-232 and USB connectivity

RS-232 and USB device ports support connectivity to PCs and PLCs.

Two-line backlit display

A backlit LCD display and second line provide weighing information and guidance prompts.

Indicators and security bracket

The balance includes stability, overload, and underload indicators plus a security bracket.

Integrated weigh-below hook

An integrated weigh-below hook is included.

Metal and plastic housing construction

The balance has a cast metal lower housing and plastic top housing.

Capacity 320 g
Readability 0.001 g
Calibration InCal™ internal calibration
Repeatability 0.00003 g STDEV
Linearity ±0.002 g
Stabilization time 2 seconds
Applications Basic weighing; parts counting; percent weighing; animal weighing; density determination
Weighing units mg, g, kg, oz, lb, ct, pennyweight, Troy oz, grain, Newton, Hong Kong tael, Singapore tael, Taiwan tael, Momme, tical (mm), mesghal, tola (India), and 1 custom unit
Pan 4-3/4 in. (120 mm) diameter removable stainless steel pan
Draftshield size 6.8 × 5.2 × 8.1 in. (172 × 131 × 205 mm)
Display Backlit LCD, two-line display
Connectivity RS-232 and USB
Housing construction Plastic top housing; cast metal lower housing
Platform construction Stainless steel
Platform type Round
Platform width 4 in.
Power supply 100–240 V, 50–60 Hz, single-phase, 12–18 VA
Operating temperature 50–86 °F (10–30 °C); operability guaranteed between 41–104 °F (5–40 °C)
Net weight 10 lb (4.5 kg)
Weight 15.4 lb (7 kg)

Certifications & Compliance

Certified badge of UL Certified
UL Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The PX323 has a 320 g capacity and 0.001 g readability.
Yes. It uses InCal™ internal calibration and provides user-selectable span calibration points.
It supports basic weighing, parts counting, percent weighing, animal weighing, and density determination.
It uses a removable 4-3/4 in. (120 mm) diameter stainless steel pan.
The balance has RS-232 and USB device ports for connectivity to PCs and PLCs.
Yes. It has a glass draftshield measuring 6.8 × 5.2 × 8.1 in. (172 × 131 × 205 mm).
