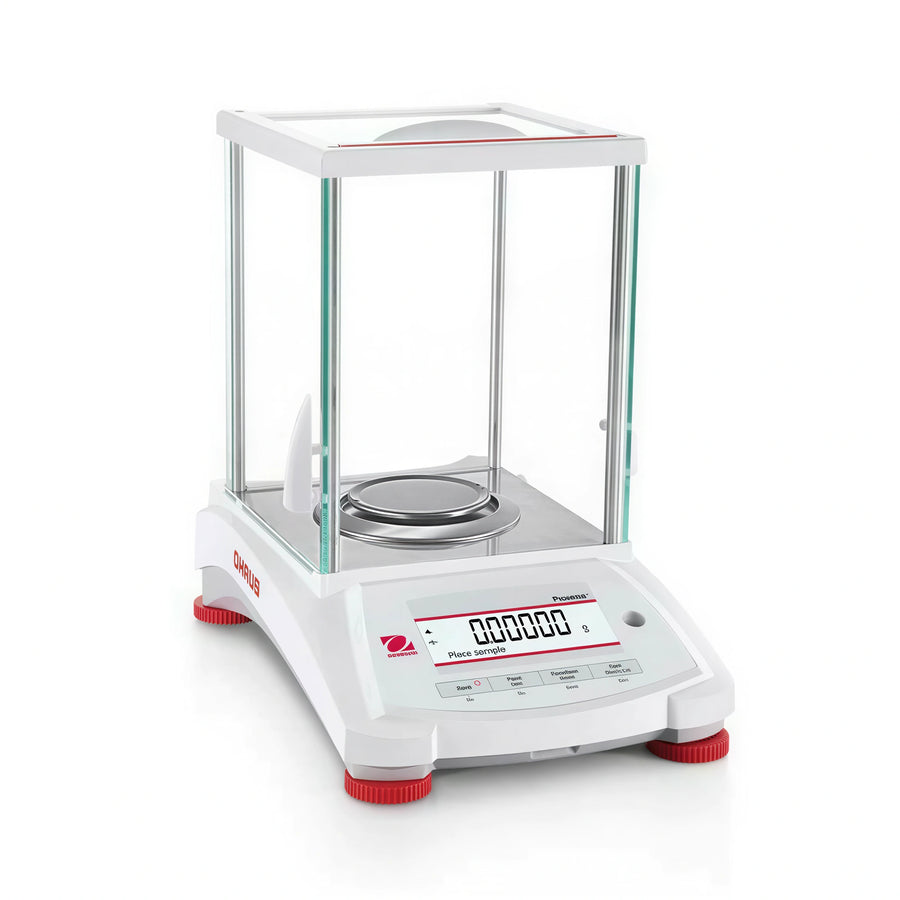

Penn Scale Ohaus® PX3202 Digital Analytical Balance, 3200 g x 0.01 g, Internal Calibration, Removable Stainless Steel Pan

SKU: PX3202
$1,861.28
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

The Ohaus PX3202 is a digital analytical balance with a 3200 g capacity, 0.01 g readability, and InCal internal calibration.

Its removable stainless steel pan supports basic weighing, parts counting, percent weighing, animal weighing, and density determination. RS-232 and USB ports provide connectivity to PCs and PLCs.

  • 1-second stabilization time
  • 7.1 in. diameter removable stainless steel pan
  • Backlit LCD display with stability, overload, and underload indicators
  • Integrated weigh-below hook and security bracket

Overall Dimensions:

8.2"W x 12.6"D x 3.9"H

Product Weight:

11.0 lb

Internal calibration

InCal internal calibration includes user-selectable span calibration points.

Weighing capacity and readability

The balance has a 3200 g capacity and 0.01 g readability.

Weighing applications

Supported applications include basic weighing, parts counting, percent weighing, animal weighing, and density determination.

Removable stainless steel pan

The round pan is removable and measures 7.1 inches in diameter.

Connectivity

RS-232 and USB ports support connection to PCs and PLCs.

Display and indicators

The balance has a backlit LCD display with stability, overload, and underload indicators.

Integrated weigh-below hook

An integrated weigh-below hook is provided.

Security bracket

A security bracket is provided.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Portion Control Food Scale Portion Scales Restaurant Equipment
Capacity 3200 g
Readability 0.01 g
Calibration InCal internal calibration; user-selectable span calibration points
Repeatability 0.01 g STDEV
Linearity ±0.02 g
Stabilization time 1 second
Applications Basic weighing; parts counting; percent weighing; animal weighing; density determination
Weighing units mg, g, kg, oz., lb., ct., pennyweight, Troy oz., grain, Newton, Hong Kong tael, Singapore tael, Taiwan tael, Momme, tical (mm), mesghal, tola (India), and 1 custom unit
Pan Removable stainless steel, 7.1 in. diameter
Housing construction ABS plastic top housing; cast metal lower housing
Platform construction Stainless steel
Platform type Round
Platform width 7 in.
Connectivity RS-232 and USB
Display Backlit LCD
Indicators Stability, overload, and underload
Integrated weigh-below hook Yes
Security bracket Yes
Power supply 100–240 V, 50–60 Hz, 12–18 VA, single phase; output 12 VDC, 0.5 A
Net weight 7.7 lb (3.5 kg)
Weight 11 lb (5 kg)

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The PX3202 has a 3200 g capacity and 0.01 g readability.
Yes. It uses InCal internal calibration and provides user-selectable span calibration points.
It supports basic weighing, parts counting, percent weighing, animal weighing, and density determination.
The balance has RS-232 and USB ports for connection to PCs and PLCs.
It uses a removable stainless steel pan with a 7.1-inch diameter.
The specified input is 100–240 V, 50–60 Hz, 12–18 VA, single phase. The power output is 12 VDC at 0.5 A.
