Penn Scale Ohaus® EXR8202 Precision Balance, 4,200 g Capacity, 0.01 g Readability, 7 in. Color Touchscreen
SKU: EXR8202
$4,851.55
/each
Enter ZIP for a shipping estimate
Expected delivery to by
Estimated Arrival
Estimated Cost
Finalize delivery options at checkout

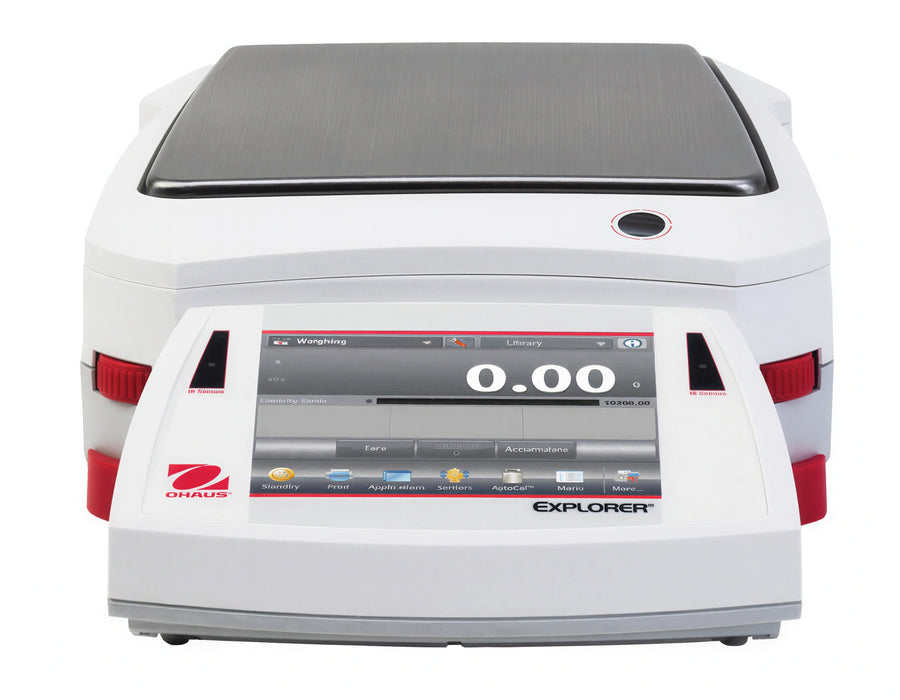

EXR8202 is an Ohaus® Explorer precision balance with a 4,200 g capacity, 0.01 g readability, and a 7-inch color touchscreen.
- Automatic internal calibration.
- 178 mm × 201 mm trapezoid weighing pan.
- USB, RS232, and Ethernet connectivity, with optional Wi-Fi and Bluetooth via dongle.
- Two leveling feet with digital bubble, two touchless sensors, and 7-color selectable terminal status lights.
- 229 mm W × 391 mm D × 95 mm H dimensions.
Overall Dimensions:
229.0"W x 391.0"D x 95.0"HProduct Weight:
7.1 lb4,200 g capacity
Supports weighing loads up to 4,200 g.
0.01 g readability
Displays measurements in 0.01 g increments.
Automatic internal calibration
Built-in automatic calibration.
7-inch color touchscreen
7-inch TFT color touchscreen with glass overlay and 800 × 480 pixel resolution.
Multiple communication interfaces
Includes two USB Type-A host ports, one USB Type-C device port, one Ethernet RJ45 port, and one RS232 port.
Optional wireless connectivity
Wi-Fi and Bluetooth are available optionally via dongle.
Leveling system
Includes two leveling feet with a digital leveling bubble.
Touchless operation and status lights
Includes two touchless sensors and selectable 7-color terminal status lights.
Capacity
4,200 g
Readability
0.01 g
Repeatability, ≤5% of full load
0.007 g typical
Repeatability, 5% of full load to full range
0.01 g
Typical linearity deviation
0.006 g
Linearity deviation
0.02 g
Typical stabilization time
≤ 1 second
Calibration
Automatic internal calibration
Display
7-inch TFT 16.7M color touchscreen with glass overlay
Display resolution
800 × 480 pixels
Communication
USB Host Type-A × 2, USB Device Type-C × 1, Ethernet RJ45 × 1, RS232 × 1; optional Wi-Fi and Bluetooth via dongle
Weighing pan
Trapezoid, 178 mm × 201 mm
Leveling system
2 leveling feet with digital leveling bubble
Touchless sensors
2 sensors on the terminal
Terminal status lights
7-color selectable
Power input
100–240 VAC, 0.5 A, 50–60 Hz
Power output
12 VDC, 1.5 A
EMC compliance
IEC/EN 61326-1 Class B; FCC Part 15 Class A; Canada ICES-003 Class A
Certifications & Compliance
Documents
Frequently Asked Questions
The EXR8202 has a 4,200 g capacity.
The readability is 0.01 g.
Yes. The EXR8202 has automatic internal calibration.
It includes USB Host Type-A, USB Device Type-C, Ethernet RJ45, and RS232 connections. Wi-Fi and Bluetooth are optional via dongle.
The dimensions are 229.0 mm wide × 391.0 mm deep × 95.0 mm high.
