Penn Scale Ohaus® EXP8201 Precision Balance, External Calibration, 6200 g Capacity, 0.1 g Readability

SKU: EXP8201
$4,447.39
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Equipment Food Preparation Equipment Food Scale Parts & Accessories Food-Scale Components New Arrivals Penn Scale Restaurant Equipment Restaurant Equipment Parts

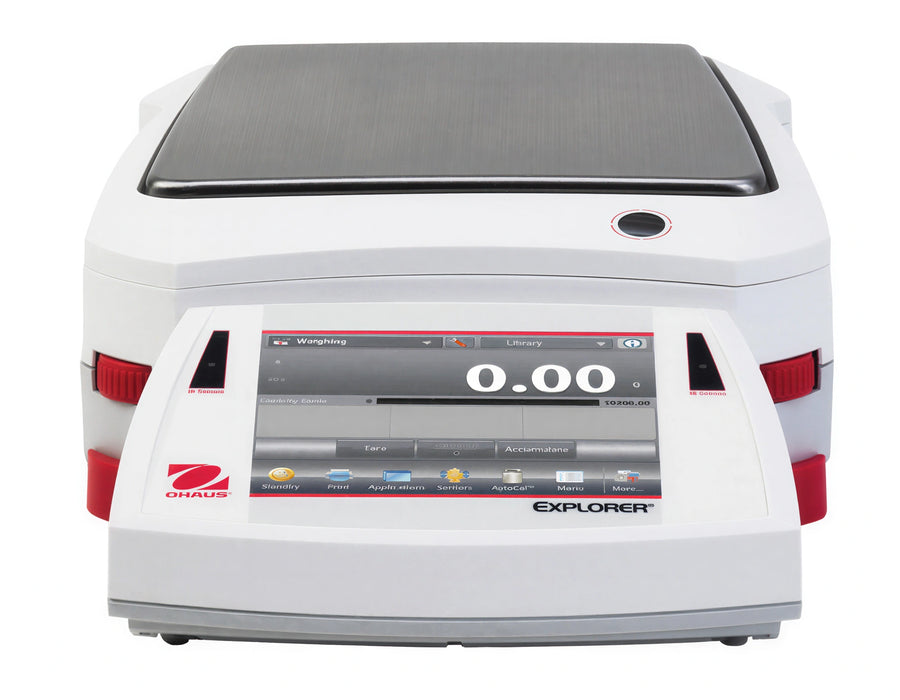

The Ohaus® Explorer Plus EXP8201 precision balance provides a 6200 g capacity with 0.1 g readability and external calibration.

  • Features a 178 mm × 201 mm trapezoid weighing pan.
  • Includes a 7-inch color touchscreen with a detachable terminal.
  • Provides motorized leveling with a digital leveling bubble.
  • Offers USB, Ethernet, and RS232 connectivity, with optional Wi-Fi and Bluetooth dongle support.
  • Uses a 100–240 VAC input and 12 VDC output.

Overall Dimensions:

229.0"W x 229.0"D x 229.0"H

Product Weight:

7.7 lb

External calibration

Supports external calibration for the balance.

Precision weighing

Provides a 6200 g capacity and 0.1 g readability.

Touchscreen terminal

Uses a 7-inch TFT 16.7M color touchscreen with glass overlay and a detachable terminal.

Motorized leveling

Includes motorized leveling with a digital leveling bubble.

Connectivity

Provides two USB Host Type A ports, one USB Device Type B port, one USB Device Type C port, Ethernet, and RS232; Wi-Fi and Bluetooth are optional via dongle.

Touchless operation

Includes two touchless sensors on the terminal.

Status indication

Provides selectable 7-color terminal status lights.

Power supply

Accepts 100–240 VAC at 0.5 A and provides 12 VDC at 1.5 A.

Balance type Explorer Plus precision balance
Calibration External
Capacity 6200 g
Readability 0.1 g
Repeatability, typical at ≤5% full load 0.07 g
Repeatability at 5% full load to full range 0.1 g
Linearity deviation, typical 0.06 g
Linearity deviation 0.2 g
Stabilization time, typical ≤ 1 second
Sensitivity temperature drift 3 ppm/°C
Minimum weight, typical 14 g; K=2, U=1%
Minimum weight, USP typical 140 g; K=2, U=0.10%
Minimum weight, USP optimal 82 g; K=2, U=0.10%, SRP≤0.41d
Weighing units g, ct, N, oz, ozt, Grain, dwt, mo, msg, tl H, tl S, tl T, tcl, tola, baht, lb, kg, Custom 1, Custom 2
Applications Basic Weighing, Parts Counting, Check Counting, Percent Weighing, Check Weighing, Dynamic Weighing, Totalization, Formulation, Differential, Density Determination, Peak Hold, Pipette Adjustment, SQC, Fill Weight Variation, Flow Rate Control
Display 7-inch TFT 16.7M color touchscreen with glass overlay; detachable terminal
Display resolution 800 × 480 pixels
Communication USB Host Type A ×2, USB Device Type B ×1, USB Device Type C ×1, Ethernet RJ45 ×1, RS232 ×1; optional Wi-Fi and Bluetooth dongle
Leveling system Motorized leveling system with digital leveling bubble
Weighing pan size 178 mm × 201 mm trapezoid pan
Touchless sensors 2 sensors on the terminal
Terminal status lights 7-color selectable
Power input 100–240 VAC, 0.5 A, 50–60 Hz
Power output 12 VDC, 1.5 A
Assembled dimensions 229 mm W × 408 mm D × 97 mm H
Net weight 5.5 kg

Certifications & Compliance

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The EXP8201 has a 6200 g capacity and 0.1 g readability.
Yes. The EXP8201 is specified with external calibration.
It uses a 178 mm × 201 mm trapezoid weighing pan.
The balance provides two USB Host Type A ports, one USB Device Type B port, one USB Device Type C port, one Ethernet RJ45 port, and RS232. Wi-Fi and Bluetooth are available through an optional dongle.
The specified input is 100–240 VAC, 0.5 A, 50–60 Hz, with a 12 VDC, 1.5 A output.
