Penn Scale CAS DT2X Compact Direct Thermal Label Printer, 6-1/2" x 10", Compatible with S2000 Jr.

SKU: DT2X
$398.15
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Oven Components Cooking Equipment Digital Price Computing Scale Equipment Food Prep Equipment New Arrivals Penn Scale Restaurant Equipment

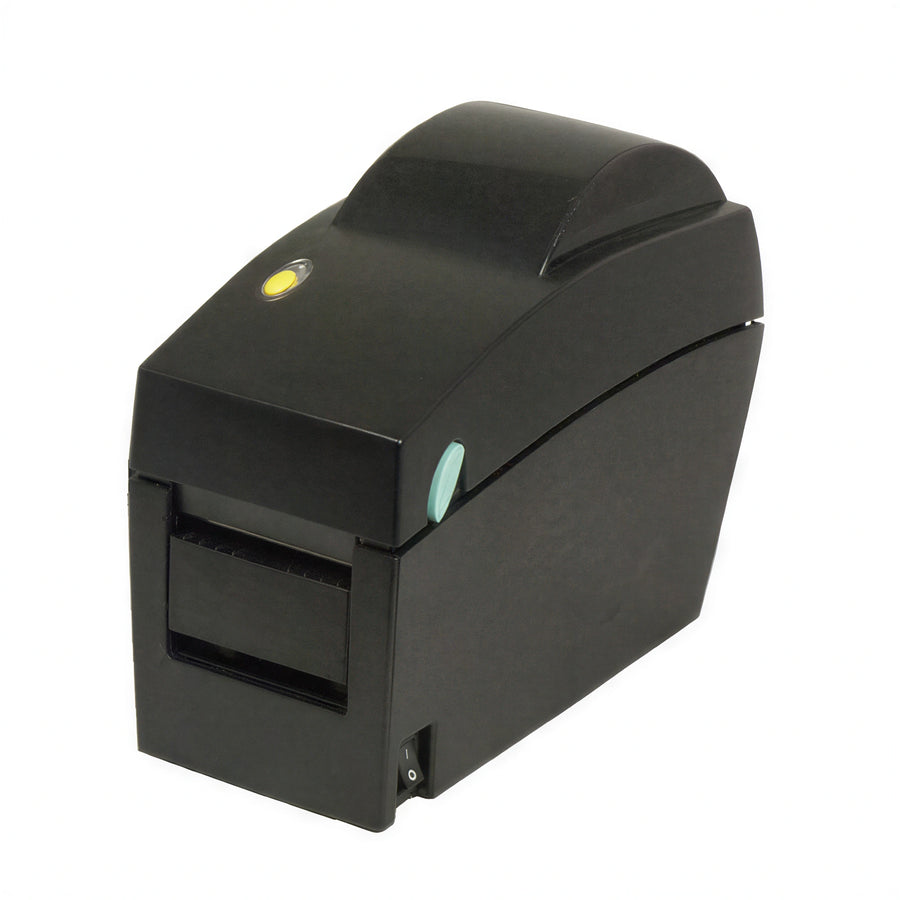

The CAS DT2X is a compact direct thermal label printer designed to work with the S2000 Jr Price Computing Scale.

  • 203 dpi resolution with print speeds up to 7 IPS (177 mm/s)
  • Supports continuous forms, gap labels, black mark sensing, and punched-hole media
  • USB 2.0, RS-232 serial, and 10/100 Base-Tx Ethernet connectivity
  • Auto-switching 100–240 V AC power at 50–60 Hz

Direct thermal printing

Prints using the direct thermal method at 203 dpi (8 dots/mm).

S2000 Jr compatibility

Works with the CAS S2000 Jr Price Computing Scale.

Flexible media support

Supports continuous form, gap labels, black mark sensing, and punched-hole media.

Connectivity

Provides USB 2.0, RS-232 serial through a DB-9 port, and 10/100 Base-Tx Ethernet through an RJ-45 port.

Media sensing

Uses a fixed centrally aligned transmissive sensor and an adjustable reflective sensor.

Memory

Includes 4 MB of flash memory, with 2 MB for user storage, and 16 MB of SDRAM.

Printer languages

Supports EZPL, GEPL, and GZPL with automatic switching.

Power

Uses auto-switching 100–240 V AC power at 50–60 Hz.

Print method Direct thermal
Resolution 203 dpi (8 dots/mm)
Print speed 7 IPS (177 mm/s)
Print width 2.12 in (54 mm)
Print length Minimum 0.16 in (4 mm); maximum 68 in (1727 mm)
Processor 32-bit RISC CPU
Flash memory 4 MB, including 2 MB for user storage
SDRAM 16 MB
Sensor type Fixed transmissive sensor, centrally aligned; adjustable reflective sensor
Media types Continuous form, gap labels, black mark sensing, and punched hole
Label width 0.6–2.36 in (15–60 mm)
Label thickness 0.0024–0.008 in (0.06–0.2 mm)
Label roll diameter Maximum 5 in (127 mm)
Core diameter 1 in (25.4 mm) and 1.5 in (38.1 mm)
Printer language EZPL, GEPL, and GZPL auto switch
Interfaces USB 2.0; RS-232 serial port with DB-9; IEEE 802.3 10/100 Base-Tx Ethernet with RJ-45
Control panel One tri-color LED and FEED function key
Power Auto-switching 100–240 V AC, 50–60 Hz
Real-time clock Standard
Operating temperature 41–104 °F (5–40 °C)
Storage temperature -4–122 °F (-20–50 °C)
Operating humidity 30–85%, non-condensing
Storage humidity 10–90%, non-condensing
Weight 2.65 lb (1.2 kg)

Certifications & Compliance

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The DT2X works with the CAS S2000 Jr Price Computing Scale.
It uses direct thermal printing.
It supports continuous forms, gap labels, black mark sensing, and punched-hole media.
The printer provides USB 2.0, RS-232 serial, and 10/100 Base-Tx Ethernet connections.
It uses auto-switching 100–240 V AC power at 50–60 Hz.
