Penn Scale Ohaus® D52XW5WQS6 Stainless Steel Washdown Digital Bench Receiving Scale, 60 lb Capacity, 10" x 10" Platform

SKU: D52XW5WQS6
$1,925.58
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

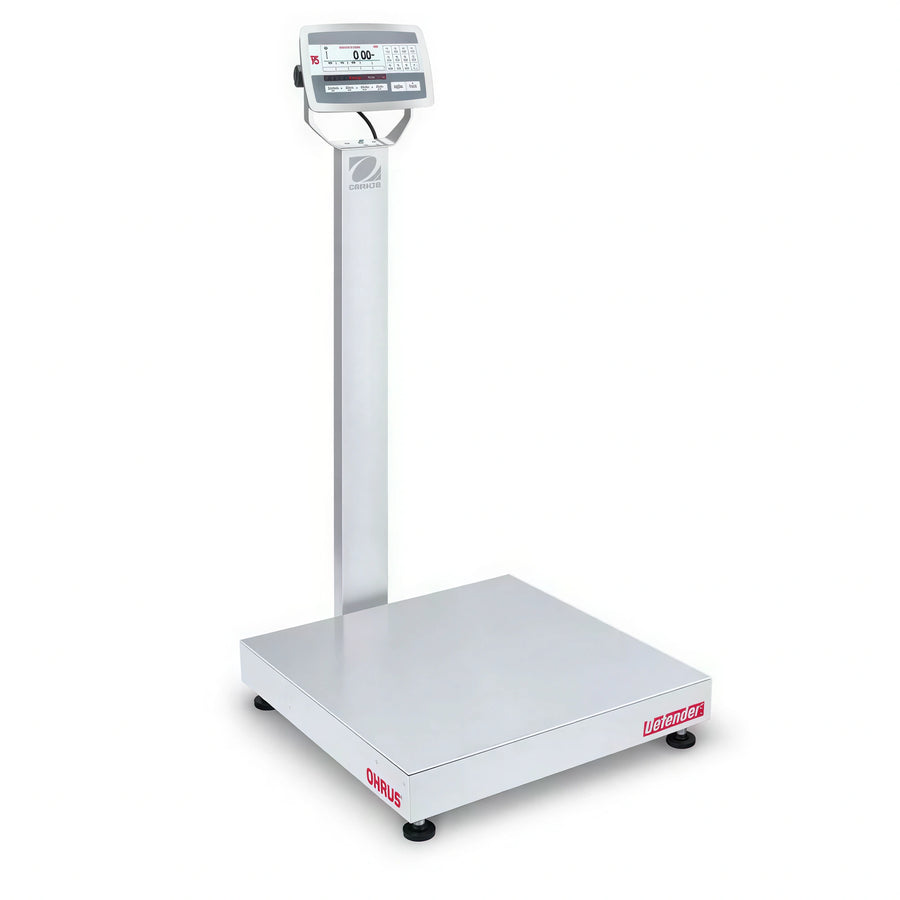

The Penn Scale D52XW5WQS6 is an Ohaus® Defender® 5000 washdown bench scale with a 10 lb capacity, 0.002 lb readability, and stainless steel construction.

Its removable 10" x 10" platform, protected TD52XW indicator, multiple weighing modes, and standard RS232 interface support receiving, counting, checkweighing, and other commercial or industrial weighing tasks.

  • Stainless steel construction: Includes a removable stainless steel weighing platform, stainless steel frame, and silicon-sealed stainless steel loadcell.
  • Protected indicator: The TD52XW indicator has a sandblasted surface treatment and IP68/NEMA 4X protection.
  • Multiple applications: Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
  • Commercial weighing resolution: Weighs up to 10 lb with 0.002 lb readability.

Overall Dimensions:

10.0"W x 15.1"D x 23.6"H

Product Weight:

24.0 lb

Stainless steel washdown construction

The removable platform and frame are stainless steel, with a silicon-sealed IP67 stainless steel loadcell.

Protected TD52XW indicator

The indicator has a sandblasted surface treatment and IP68/NEMA 4X protection.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Backlit dot matrix display

The display is a 256 x 80 pixel dot matrix LCD with white LED backlight.

Legal-for-trade support

The catalog identifies the scale as legal for trade and lists NTEP certification.

Connectivity

Standard RS232 is included, with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O options.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Fast stabilization

Stabilization time is within 1 second.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Scale type Bench
Capacity 10 lb / 160 oz / 5 kg / 5000 g
Readability 0.002 lb / 0.032 oz / 0.001 kg / 1 g
Platform size 10" x 10" x 2-15/16"
Platform construction Removable stainless steel weighing platform
Column height 13-13/16 in stainless steel column
Indicator TD52XW
Indicator construction Stainless steel with sandblasted surface treatment
Indicator protection IP68 / NEMA 4X
Loadcell protection Silicon-sealed IP67 stainless steel loadcell
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d
Zeroing range 2% or 100% of capacity
Calibration Zero, span, or 3-point linear
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Power supply 100-240 V AC, 50/60 Hz universal power supply
Standard interface RS232
Optional interfaces Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, 2 in/4 out discrete I/O
Battery Optional rechargeable lithium battery; 20 hours continuous use

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The D52XW5WQS6 has a 10 lb capacity and 0.002 lb readability. Equivalent specifications are 160 oz x 0.032 oz, 5 kg x 0.001 kg, and 5000 g x 1 g.
The removable stainless steel platform measures 10" x 10" x 2-15/16".
It is a washdown bench scale with an IP68/NEMA 4X indicator and an IP67 silicon-sealed stainless steel loadcell.
Available modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The catalog identifies this model as legal for trade and lists NTEP certification.
It uses a 100-240 V AC, 50/60 Hz universal power supply and includes a standard RS232 interface. A rechargeable lithium battery and additional interfaces are optional.
