Penn Scale Ohaus® D52XW50WQL7 Digital Stainless Steel Washdown Bench Receiving Scale, 100 lb x 0.02 lb, 18 x 18 in Platform

SKU: D52XW50WQL7
$2,937.44
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

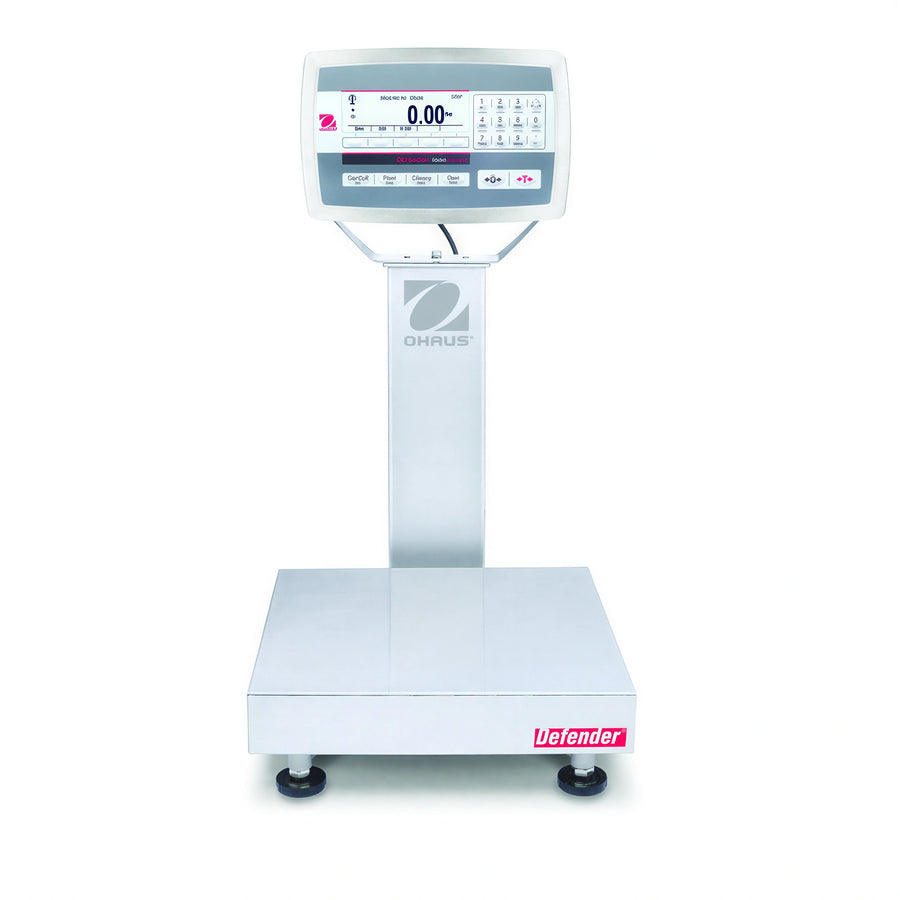

The Ohaus® Defender® 5000 D52XW50WQL7 is a washdown bench receiving scale for commercial and industrial weighing applications.

  • 100 lb capacity: Provides 0.02 lb readability and 50 kg x 10 g metric weighing.
  • Stainless steel construction: Includes a removable 18 x 18 in platform, stainless steel frame and column, and a silicon-sealed IP67 stainless steel loadcell.
  • Protected indicator: The TD52XW indicator has an IP68/NEMA 4X rating, dot matrix LCD with white LED backlight, and a membrane keypad.
  • Flexible operation: Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing and display hold.

Overall Dimensions:

18.0"W x 24.7"D x 36.8"H

Product Weight:

46.3 lb

Washdown construction

The scale includes a stainless steel platform and frame, a silicon-sealed IP67 stainless steel loadcell, and a TD52XW indicator with IP68/NEMA 4X protection.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing and display hold.

Stainless steel platform and column

The removable weighing platform measures 18 x 18 in, and the stainless steel column is 26-13/16 in high.

Readable display and keypad

The indicator uses a 256 x 80 pixel dot matrix LCD with white LED backlight and a membrane keypad with function, quick and alphanumeric switches.

Trade-use weighing

The scale is identified as legal for trade and NTEP listed; the counting function is not legal for trade.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Standard connectivity

A standard RS232 interface is provided for data output.

Capacity 100 lb (50 kg)
Readability 0.02 lb (0.010 kg; 10 g)
Certified readability 0.02 lb (10 g)
Platform size 18 x 18 in
Platform height 4-5/16 in
Platform construction Removable stainless steel weighing platform
Column height 26-13/16 in stainless steel column
Construction Stainless steel frame
Indicator TD52XW
Indicator protection IP68 / NEMA 4X
Loadcell protection Silicon-sealed IP67 stainless steel loadcell
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Interface Standard RS232
Power supply 100-240 VAC, 50/60 Hz universal power supply
Calibration Zero, span or 3-point linear
Auto-zero tracking Off, 0.5 d, 1 d or 3 d
Zeroing range 2% or 100% of capacity
Legal-for-trade status Legal for trade; counting function is not legal for trade

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 100 lb capacity and 0.02 lb readability, equivalent to 50 kg x 10 g.
It has an 18 x 18 in removable stainless steel weighing platform.
The scale has a silicon-sealed IP67 stainless steel loadcell and a TD52XW indicator rated IP68/NEMA 4X.
Supported modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing and display hold.
The product is identified as legal for trade and NTEP listed. Its counting function is not legal for trade.
The scale includes a standard RS232 interface.
