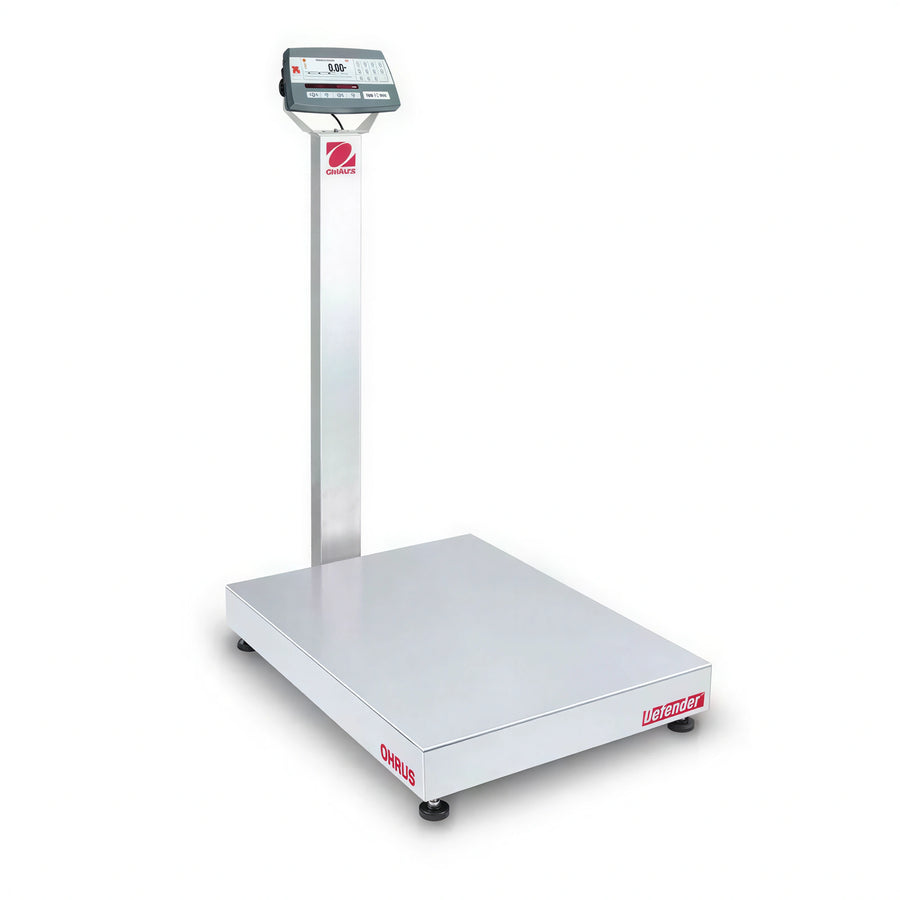

Penn Scale Ohaus® D52XW50RTX2 Digital Legal-for-Trade Bench Scale, 100 lb x 0.02 lb, 18" x 24" Stainless Steel Platform

SKU: D52XW50RTX2
$2,495.35
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Ohaus Defender 5000 D52XW50RTX2 is a bench-style legal-for-trade scale with a 100 lb capacity, 0.02 lb certified readability, and an 18 in x 24 in removable stainless steel weighing platform.

  • TD52XW stainless steel indicator with IP68/NEMA 4X protection
  • Piece counting with optimized APW, checkweighing, checkcounting, percent weighing, and dynamic weighing/display hold
  • Standard RS232 interface with optional connectivity interfaces available
  • 100–240 VAC universal power supply; rechargeable lithium battery is optional

Overall Dimensions:

18.0"W x 30.5"D x 36.8"H

Product Weight:

68.3 lb

Legal-for-trade weighing

The product is identified as legal for trade and has NTEP certification with a 100 lb x 0.02 lb certified capacity and readability specification.

Removable stainless steel platform

The 18 in x 24 in weighing platform is stainless steel and removable.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction with sandblasted surface treatment and IP68/NEMA 4X protection.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, and dynamic weighing/display hold.

Backlit dot matrix display

The display is a 256 x 80 pixel dot matrix LCD with white LED backlight.

Counting functions

Piece counting uses optimized average piece weight, with an internal counting resolution of 1:500,000.

Connectivity options

A standard RS232 interface is provided; optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.

Steel base and sealed load cell

The base is powder-coated steel, and the aluminum load cell is silicon sealed against moisture.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Capacity 100 lb / 1,600 oz / 50 kg / 50,000 g
Default readability 100 lb x 0.005 lb; 50 kg x 2 g
Certified readability 100 lb x 0.02 lb; 1,600 oz x 0.32 oz; 50 kg x 0.010 kg; 50,000 g x 10 g
Platform size 18 in x 24 in
Platform construction Removable stainless steel weighing platform
Platform height 5-1/8 in
Column height 26.8 in / 680 mm powder-coated steel
Indicator TD52XW stainless steel indicator with sandblasted surface treatment
Indicator protection IP68 / NEMA 4X
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Internal counting resolution 1:500,000
Minimum APW 0.1 g
Maximum displayed resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F / -10°C to 40°C
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Standard interface RS232
Optional interfaces Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, 2 in/4 out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply; rechargeable lithium battery optional
Battery life 20 hours continuous use with optional rechargeable lithium battery
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d
Zeroing range 2% or 100% of capacity
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 100 lb capacity and 0.02 lb certified readability. Metric specifications are 50 kg capacity and 10 g certified readability.
The removable stainless steel platform measures 18 in x 24 in.
Yes. The product is identified as legal for trade and is listed with NTEP certification and a 100 lb x 0.02 lb certified capacity and readability specification.
Available modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, and dynamic weighing/display hold.
RS232 is standard. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.
A rechargeable lithium battery is listed as an optional power supply, so inclusion is not established.
