Penn Scale Ohaus® D52XW50RTR1 Digital Legal-for-Trade Bench Scale, 100 lb x 0.02 lb, Stainless Steel 12 x 14 in Platform

SKU: D52XW50RTR1
$1,972.66
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

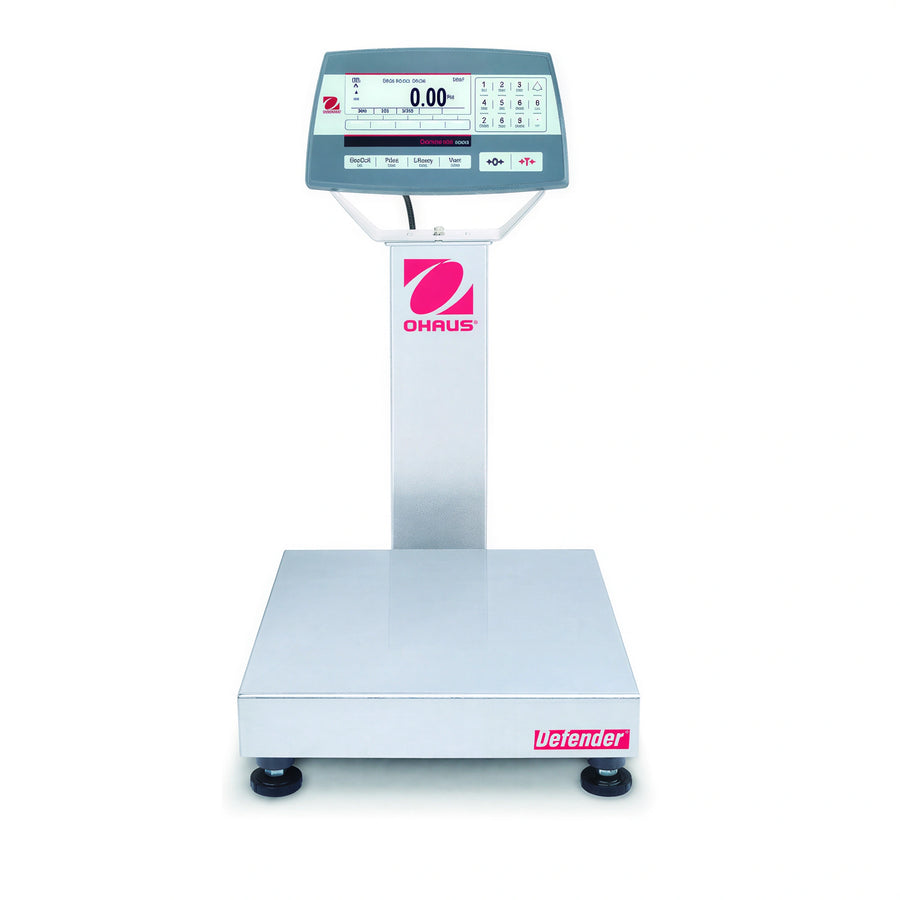

The Ohaus Defender 5000 D52XW50RTR1 is a column-mount bench scale with a 100 lb capacity and 0.02 lb certified readability for legal-for-trade applications. It has a removable 12 x 14 in stainless steel weighing platform and a TD52XW stainless steel indicator with IP68/NEMA 4X protection.

Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, and dynamic weighing with display hold. Standard RS232 connectivity is provided, with additional optional interfaces available.

  • 100 lb x 0.02 lb certified readability and 50 kg x 10 g certified readability
  • Removable stainless steel weighing platform
  • Dot matrix LCD with white LED backlight and 256 x 80 pixel resolution
  • Standard RS232 interface
  • 150% safe overload capacity and stabilization within 1 second

Overall Dimensions:

12.0"W x 19.3"D x 23.8"H

Product Weight:

28.7 lb

Certified legal-for-trade weighing

The scale is specified for NTEP legal-for-trade applications. The counting function is not legal for trade.

Stainless steel platform

The removable weighing platform measures 12 x 14 x 3-15/16 in.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction, sandblasted surface treatment, and IP68/NEMA 4X protection.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, and dynamic weighing/display hold.

Readable operator interface

The scale uses a dot matrix LCD with white LED backlight and a 6-function, 5-quick, 12-alphanumeric membrane keyboard.

Data connectivity

Standard RS232 connectivity is included. Optional interfaces include Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.

Overload protection

The scale has a safe overload capacity of 150% of maximum capacity.

Fast stabilization

Specified stabilization time is within 1 second.

Scale type Bench
Capacity 100 lb / 50 kg
Certified readability 0.02 lb / 10 g
Default readability 0.005 lb / 2 g
Platform size 12 x 14 x 3-15/16 in
Platform construction Removable stainless steel weighing platform
Indicator TD52XW stainless steel
Indicator protection IP68 / NEMA 4X
Column construction Powder-coated steel
Column height 13-13/16 in / 350 mm
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d
Zeroing range 2% or 100% of capacity
Calibration Zero, span, or 3-point linear
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F / -10°C to 40°C
Interface Standard RS232; optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O
Power supply 100-240 VAC, 50/60 Hz universal power supply
Battery Optional rechargeable lithium battery; 20 hours continuous-use battery life

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 100 lb capacity with 0.02 lb certified readability. Its metric rating is 50 kg x 10 g.
The scale is specified for NTEP legal-for-trade applications. The counting function is not legal for trade.
It has a removable stainless steel weighing platform measuring 12 x 14 x 3-15/16 in.
Standard connectivity is RS232. Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O are optional interfaces.
A rechargeable lithium battery is optional. The specified standard power supply is 100-240 VAC at 50/60 Hz.
The TD52XW stainless steel indicator is rated IP68/NEMA 4X.
