Penn Scale D52XW50RQV5

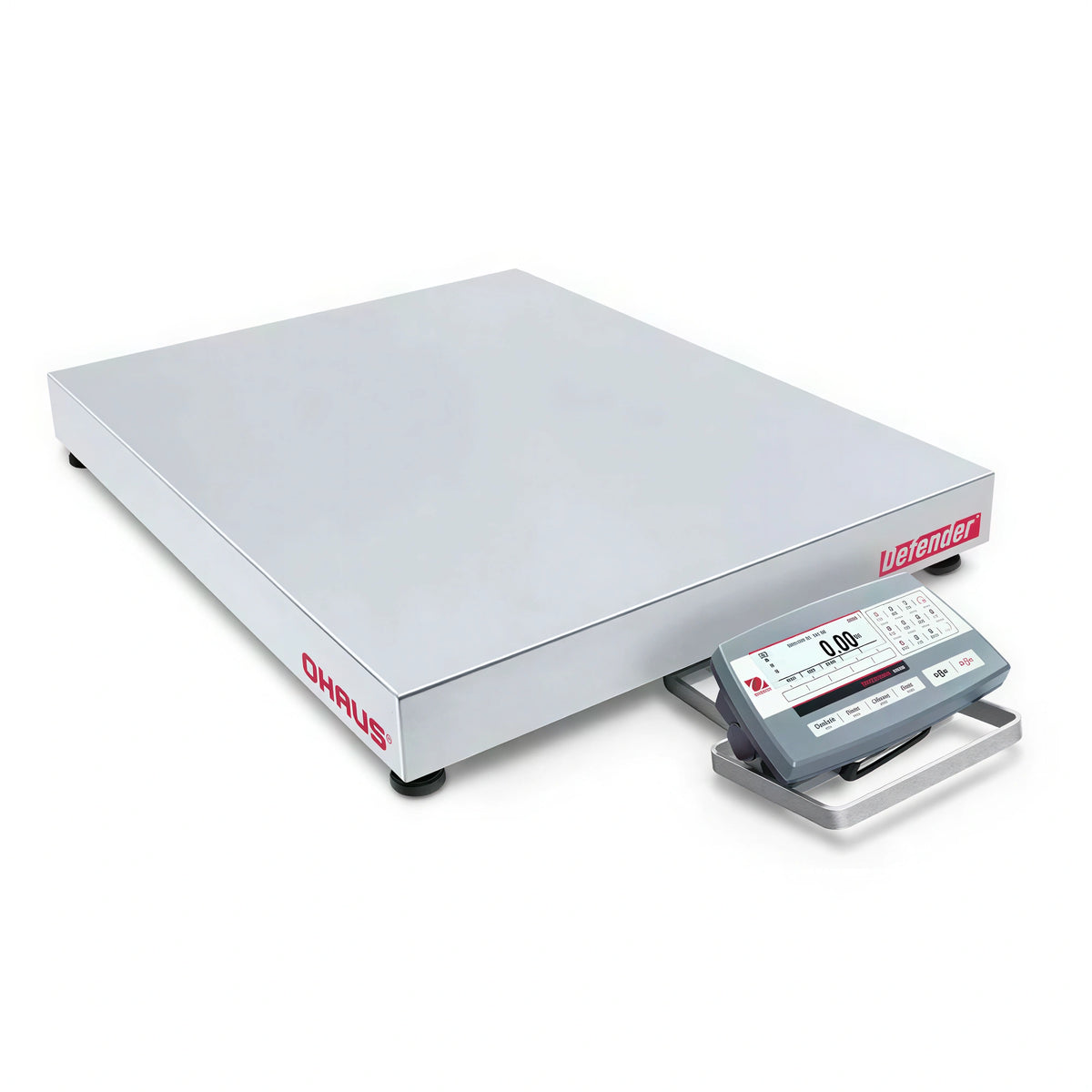

Penn Scale Ohaus® D52XW50RQV5 Legal-for-Trade Digital Bench Scale, 100 lb x 0.02 lb, 24" x 24" Stainless Steel Platform

$2,491.36
/each
Ships in 16–19 business days
Dimensions
24.0"W × 34.6"D × 5.1"H
Scale type
Low-profile square bench scale
Capacity
100 lb
Readability
0.02 lb
Metric capacity and readability
50 kg × 0.010 kg; 50,000 g × 10 g
Platform dimensions
24 × 24 × 5-1/8 in

Questions before you buy?

Talk to an equipment specialist — usually within 1 hour, 9am–6pm EST.

(888) 307-5030 Call Get custom quote

Specifications

Scale type Low-profile square bench scale
Capacity 100 lb
Readability 0.02 lb
Metric capacity and readability 50 kg × 0.010 kg; 50,000 g × 10 g
Platform dimensions 24 × 24 × 5-1/8 in
Platform construction Removable stainless steel
Indicator TD52XW stainless steel
Indicator protection IP68/NEMA 4X
Base construction Powder-coated steel base with aluminum load cell silicon-sealed against moisture
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Maximum display resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Standard interface RS232
Optional interfaces Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, 2-in/4-out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply
Optional battery Rechargeable lithium battery; 20 hours continuous use
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity

Description

The Ohaus® Defender® 5000 D52XW50RQV5 is a low-profile bench scale with a 100 lb capacity and 0.02 lb readability. It has a removable 24 × 24 in stainless steel weighing platform and a TD52XW stainless steel indicator.

  • Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
  • Includes a dot matrix LCD with white LED backlight, standard RS232 interface, and multiple optional connectivity interfaces.
  • Features a 150% safe overload capacity and stabilization within 1 second.

Overall Dimensions:

24.0"W x 34.6"D x 5.1"H

Product Weight:

83.8 lb

Legal-for-trade weighing

The authoritative catalog identifies this model as legal for trade and lists NTEP among its exact-product certifications.

Stainless steel platform

The removable weighing platform measures 24 × 24 × 5-1/8 in and is made of stainless steel.

Protected stainless steel indicator

The TD52XW indicator has a sandblasted stainless steel surface treatment and IP68/NEMA 4X protection.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Connectivity options

A standard RS232 interface is provided, with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O interfaces.

Overload protection

The scale has a safe overload capacity of 150% of maximum capacity.

Backlit display and membrane keyboard

The indicator uses a 256 × 80 pixel dot matrix LCD with white LED backlight and a membrane keyboard with function, quick, and alphanumeric switches.

Documentation

PDF Cutsheet PDF Download

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Frequently Asked Questions

The scale has a 100 lb capacity and 0.02 lb readability. Its metric specifications are 50 kg × 0.010 kg and 50,000 g × 10 g.
Yes. The authoritative catalog identifies this model as legal for trade and lists NTEP among its certifications.
The removable stainless steel weighing platform measures 24 × 24 × 5-1/8 in.
Available modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The scale has a standard RS232 interface. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.
It uses a 100–240 VAC, 50/60 Hz universal power supply. A rechargeable lithium battery is listed as optional, with 20 hours of continuous-use battery life.
