Penn Scale Ohaus® D52XW50RQV3 Commercial Digital Bench Scale, 100 lb/50 kg Capacity, Stainless Steel, 24" x 24" Platform

SKU: D52XW50RQV3
$2,694.34
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

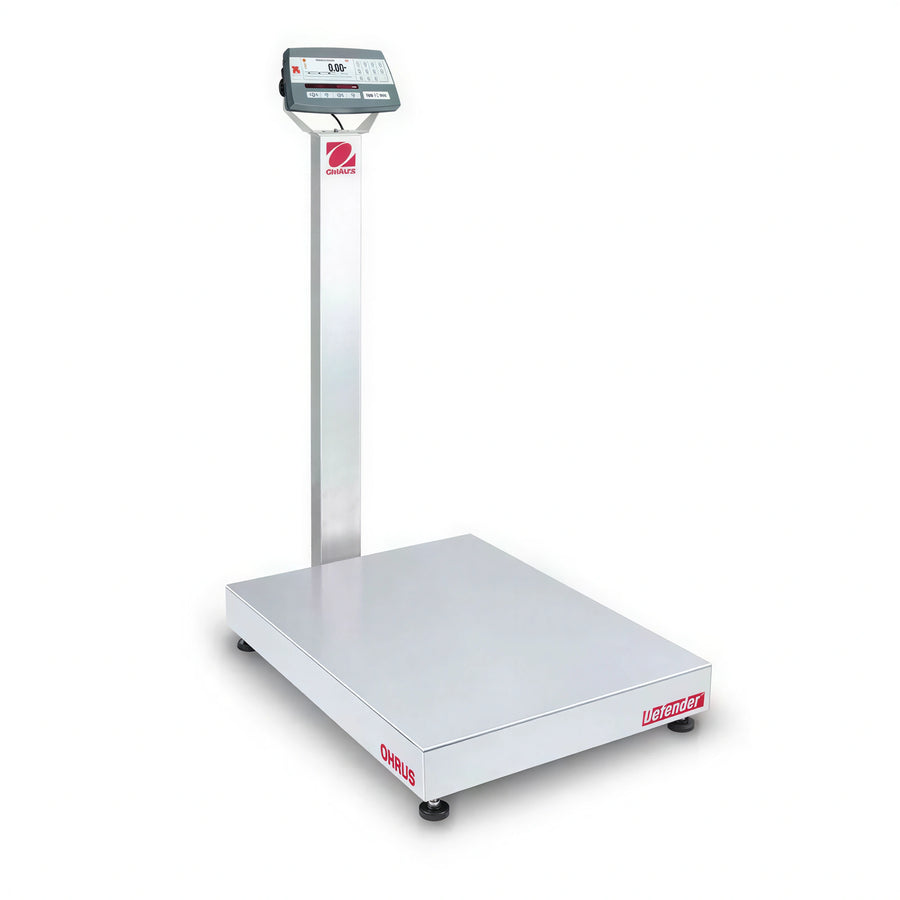

The Ohaus Defender 5000 D52XW50RQV3 is a digital bench scale with a 100 lb / 50 kg capacity, a removable stainless steel weighing platform, and a TD52XW stainless steel indicator.

Its IP68 / NEMA 4X-protected indicator, multiple weighing modes, standard RS232 interface, and 24" x 24" platform support weighing, counting, checkweighing, and other commercial and industrial applications.

  • Capacity: 100 lb / 50 kg
  • Platform: 24" x 24" removable stainless steel platform
  • Indicator: TD52XW stainless steel indicator with IP68 / NEMA 4X protection
  • Applications: Weighing, percent weighing, piece counting, checkweighing, check counting, dynamic weighing, and display hold

Overall Dimensions:

24.0"W x 30.4"D x 48.6"H

Product Weight:

93.0 lb

Legal-for-trade weighing

The scale is identified as legal for trade and provides 100 lb / 50 kg capacity with 0.02 lb / 10 g certified readability.

Stainless steel platform

The removable weighing platform measures 24" x 24" x 5-1/8" and is made of stainless steel.

Protected stainless steel indicator

The TD52XW stainless steel indicator has IP68 / NEMA 4X protection.

Multiple application modes

Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Data connectivity

A standard RS232 interface is provided, with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O interfaces.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Fast stabilization

Stabilization time is within 1 second.

LCD display and membrane keypad

The scale uses a 256 x 80 pixel dot matrix LCD with white LED backlight and a membrane keyboard with 6 function, 5 quick, and 12 alphanumeric switches.

Scale type Bench
Capacity 100 lb / 50 kg
Default readability 0.005 lb / 2 g
Certified readability 0.02 lb / 10 g
Platform size 24" x 24" x 5-1/8"
Platform material Stainless steel, removable
Column 38-5/8" powder-coated steel
Indicator TD52XW stainless steel
Indicator protection IP68 / NEMA 4X
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Power supply 100-240 VAC, 50/60 Hz universal power supply
Battery Rechargeable lithium battery, optional
Battery life 20 hours continuous use
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d
Zeroing range 2% or 100% of capacity

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 100 lb / 50 kg capacity.
It has a 24" x 24" x 5-1/8" removable stainless steel weighing platform.
Yes. The product is identified as legal for trade and includes NTEP certification information for the Defender 5000 platform and indicator.
Available modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The TD52XW stainless steel indicator is protected to IP68 / NEMA 4X.
It uses a 100-240 VAC, 50/60 Hz universal power supply. A rechargeable lithium battery is optional.
The scale includes standard RS232. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.
