Penn Scale Ohaus® D52XW50RQR5 Legal-for-Trade Digital Bench Scale, 100 lb x 0.02 lb, Stainless Steel 12" x 12" Platform

SKU: D52XW50RQR5
$1,872.91
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

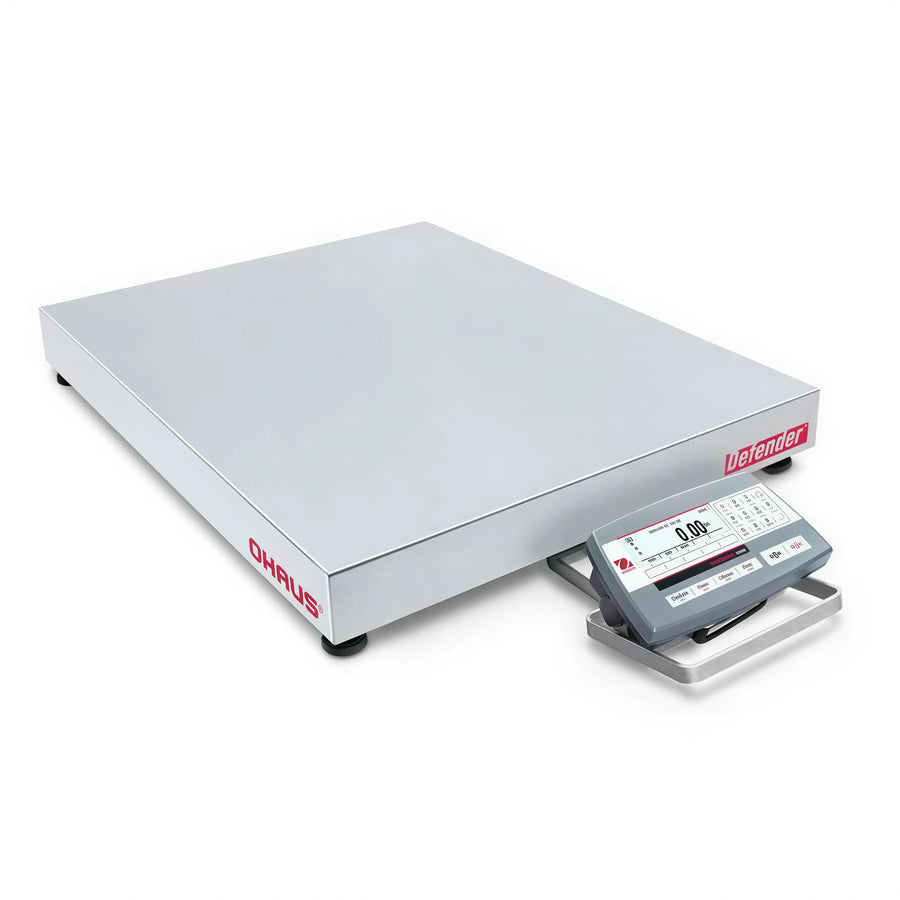

The Ohaus Defender 5000 D52XW50RQR5 is a legal-for-trade bench scale with a 100 lb capacity and 0.02 lb readability. It has a removable stainless steel weighing platform and a TD52XW stainless steel indicator with IP68/NEMA 4X protection.

  • Capacity and readability: 100 lb x 0.02 lb, 50 kg x 0.010 kg, or 50,000 g x 10 g.
  • Application modes: Weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing, and display hold.
  • Connectivity: Standard RS232 interface with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O.

Overall Dimensions:

12.0"W x 23.1"D x 4.6"H

Product Weight:

24.3 lb

Legal-for-trade weighing

The exact model is identified as legal for trade and has NTEP support.

Stainless steel weighing platform

The removable weighing platform measures 12 x 12 in.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction with IP68/NEMA 4X protection.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing, and display hold.

Data connectivity

Includes standard RS232; optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.

Counting resolution

Provides an internal counting resolution of 1:500,000.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Capacity 100 lb / 50 kg / 50,000 g / 1,600 oz
Readability 0.02 lb / 0.010 kg / 10 g / 0.32 oz
Platform size 12 x 12 in
Scale type Low-profile square bench scale
Platform construction Removable stainless steel
Indicator TD52XW stainless steel indicator
Indicator protection IP68/NEMA 4X
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing, display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply
Battery Optional rechargeable lithium battery; 20 hours continuous use
Calibration Zero, span, or 3-point linear
Base construction Powder-coated steel base with aluminum load cell silicon-sealed against moisture
Front mount Stainless steel front-mount bracket with handle
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The exact model is identified as legal for trade and has NTEP support.
The scale has a 12 x 12 in removable stainless steel weighing platform.
It supports weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing, and display hold.
Standard connectivity is provided through RS232. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.
