Penn Scale Ohaus® D52XW500RTV3 Digital Bench Receiving Scale, 1000 lb x 0.2 lb, Stainless Steel Platform, Legal for Trade

SKU: D52XW500RTV3
$3,350.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

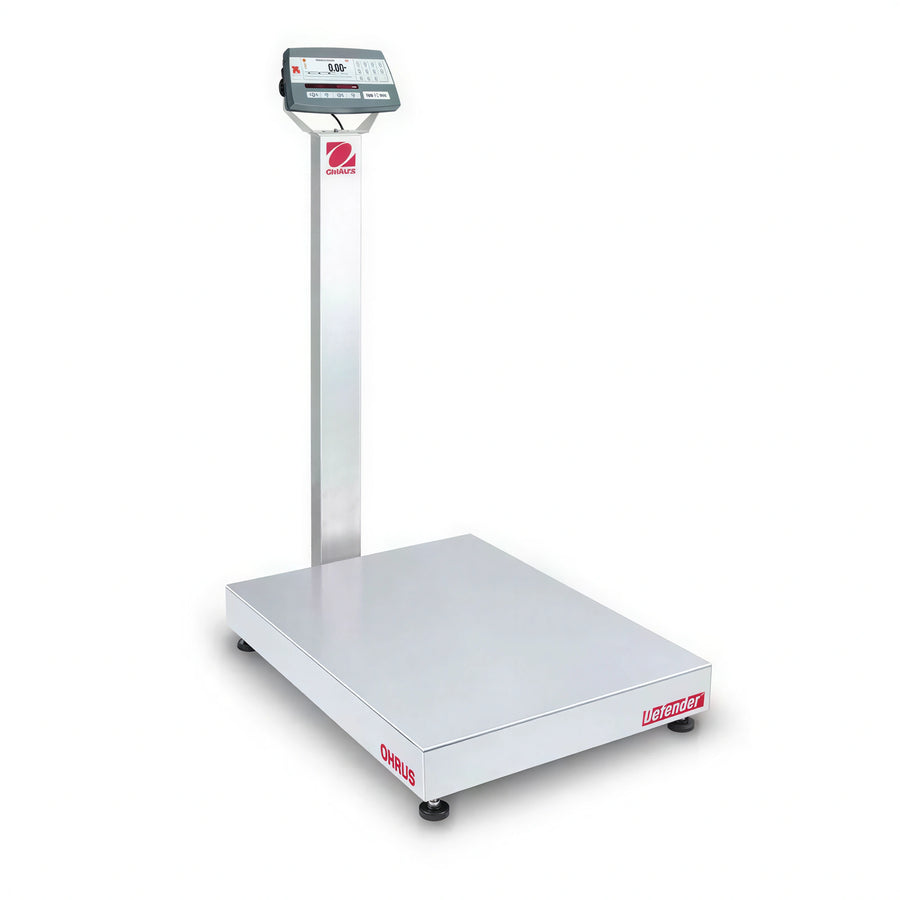

The Penn Scale D52XW500RTV3 is an Ohaus Defender 5000 bench receiving scale with a 1000 lb capacity and 0.20 lb readability. It features a removable stainless steel weighing platform and a TD52XW stainless steel indicator with IP68 and NEMA 4X protection.

The scale supports weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, and dynamic weighing with display hold. Standard RS232 connectivity is included, with additional interfaces available as options.

  • Legal-for-trade design with NTEP listing
  • Dot matrix LCD with white LED backlight
  • 150% safe overload capacity and stabilization within 1 second
  • 100-240 VAC, 50/60 Hz power supply

Overall Dimensions:

23.6"W x 37.9"D x 48.6"H

Product Weight:

114.6 lb

1000 lb weighing capacity

Provides 1000 lb capacity with 0.20 lb readability; the metric capacity and readability are 500 kg and 0.10 kg.

Stainless steel platform

Includes a removable stainless steel weighing platform measuring 23-5/8 in. x 31-1/2 in. x 5-1/4 in.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction with IP68 and NEMA 4X protection.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, and dynamic weighing with display hold.

Legal-for-trade operation

The product is identified as legal for trade and carries an NTEP listing.

Backlit dot matrix display

Uses a dot matrix LCD with white LED backlight and 256 x 80 pixel resolution.

Connectivity options

Includes a standard RS232 interface; Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O are optional interfaces.

Overload protection

Provides safe overload capacity of 150% of maximum capacity and stabilization within 1 second.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Scale style Bench
Capacity and readability 1000 lb x 0.20 lb / 16,000 oz x 3.2 oz / 500 kg x 0.10 kg / 500,000 g x 100 g
Platform 23-5/8 in. x 31-1/2 in. x 5-1/4 in.; removable stainless steel
Column 38-5/8 in. powder-coated steel
Indicator TD52XW stainless steel
Indicator protection IP68 / NEMA 4X
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Power supply 100-240 VAC, 50/60 Hz universal power supply
Battery Rechargeable lithium battery optional
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O
Base construction Powder-coated steel
Load cell Aluminum loadcell silicon sealed against moisture
Keyboard 6-function, 5-quick, 12 alphanumeric membrane switches
Legal for trade Yes; NTEP listed

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 1000 lb capacity with 0.20 lb readability. Its metric capacity and readability are 500 kg and 0.10 kg.
Yes. The product is identified as legal for trade and is listed with NTEP.
It uses a removable stainless steel weighing platform measuring 23-5/8 in. x 31-1/2 in. x 5-1/4 in.
The TD52XW stainless steel indicator has IP68 and NEMA 4X protection.
The scale supports weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, dynamic weighing, and display hold.
RS232 is standard. Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O are optional interfaces.
