Penn Scale Ohaus® D52XW500RQV3 Legal-for-Trade Bench Scale, 1,000 lb Capacity, Digital, Stainless Steel, 24 x 24 in Platform

SKU: D52XW500RQV3
$2,694.34
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

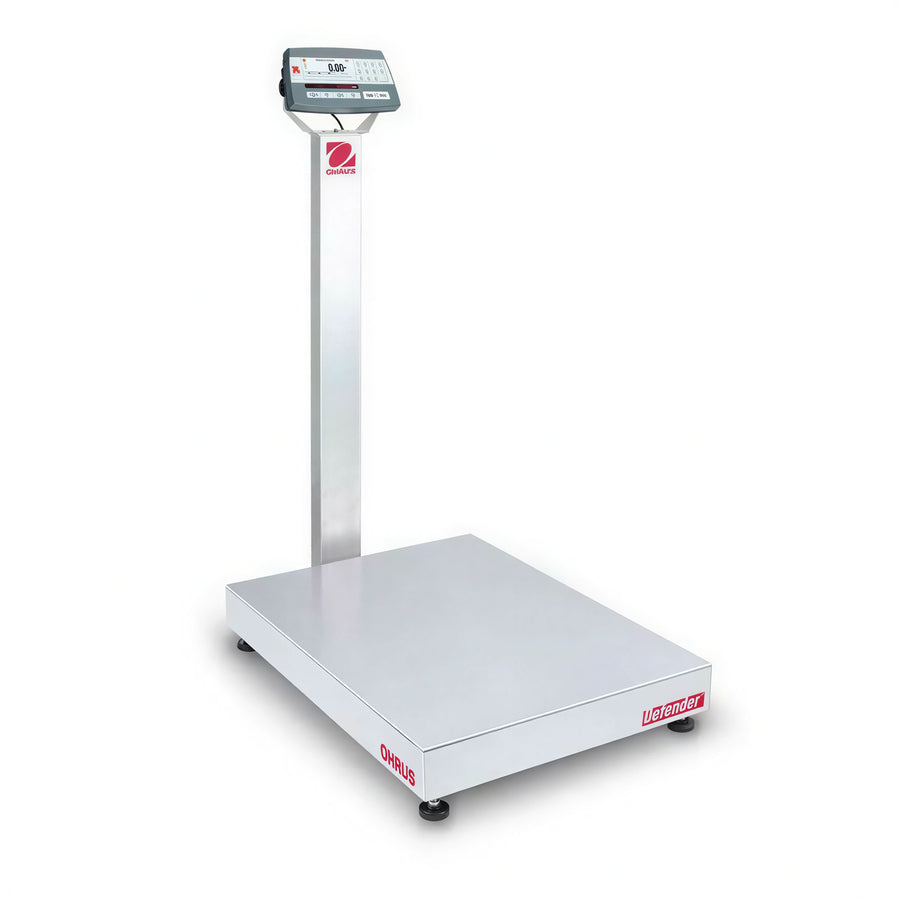

The Penn Scale D52XW500RQV3 is an Ohaus Defender 5000 bench scale with a 1,000 lb capacity, a removable 24 x 24 in stainless steel weighing platform, and a powder-coated steel column.

Its TD52XW stainless steel indicator provides IP68/NEMA 4X protection, a backlit dot matrix LCD, standard RS232 connectivity, and application modes for weighing, percent weighing, piece counting, checkweighing, check counting, dynamic weighing, and display hold.

Overall Dimensions:

24.0"W x 30.4"D x 48.6"H

Product Weight:

94.8 lb

Legal-for-trade weighing

The scale is identified as legal for trade and has NTEP certification.

1,000 lb capacity

Supports loads up to 1,000 lb / 500 kg.

Removable stainless steel platform

Includes a 24 x 24 x 5-1/8 in stainless steel removable weighing platform.

Protected stainless steel indicator

The TD52XW indicator has a sandblasted stainless steel surface treatment and IP68/NEMA 4X protection.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Backlit dot matrix display

Uses a dot matrix LCD with white LED backlight and 256 x 80 pixel resolution.

Standard RS232 interface

Provides a standard RS232 interface for data output.

Overload protection

Provides safe overload capacity of 150% of maximum capacity.

Capacity 1,000 lb / 500 kg
Default readability 1,000 lb x 0.05 lb / 500 kg x 20 g
Certified readability 1,000 lb x 0.20 lb / 500 kg x 100 g
Platform size 24 in x 24 in
Platform construction Stainless steel, removable; 5-1/8 in platform height
Column 38-5/8 in powder-coated steel
Indicator TD52XW stainless steel with sandblasted surface treatment
Protection rating IP68 / NEMA 4X
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Maximum display resolution 1:25,000
Internal counting resolution 1:500,000
Linearity/repeatability ±2d
Keyboard 6-function, 5-quick, 12-alpha numeric membrane switches
Auto-zero tracking Off, 0.5 d, 1 d or 3 d
Zeroing range 2% or 100% of capacity
Calibration Zero, span or 3-point linear
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature range 14°F to 104°F (-10°C to 40°C)
Interface Standard RS232
Power supply 100–240 VAC, 50/60 Hz universal power supply
Legal for trade Yes

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a capacity of 1,000 lb / 500 kg.
It has a 24 x 24 x 5-1/8 in removable stainless steel weighing platform.
Yes. The product is identified as legal for trade and has NTEP certification.
The scale supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The TD52XW stainless steel indicator has IP68/NEMA 4X protection.
