Penn Scale Ohaus® D52XW25RTR1 Legal-for-Trade Digital Bench Scale, 50 lb x 0.01 lb, Stainless Steel Platform

SKU: D52XW25RTR1
$1,972.66
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

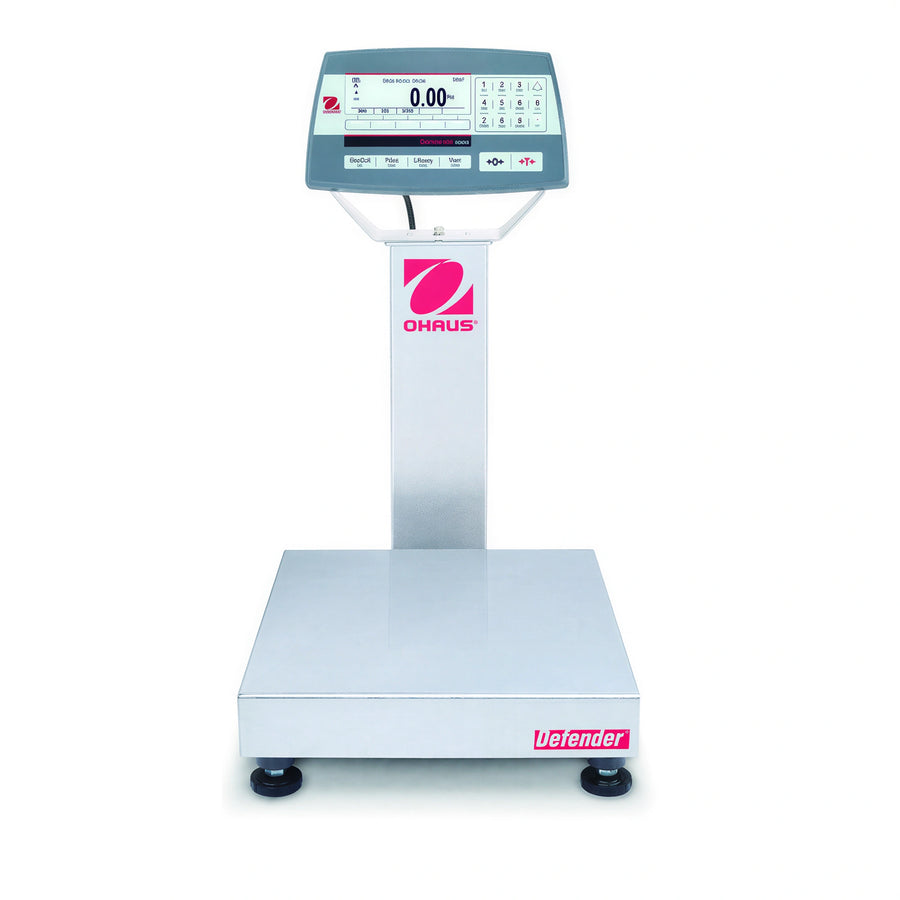

The Penn Scale D52XW25RTR1 is an Ohaus Defender 5000 bench scale with a 50 lb x 0.01 lb certified readability, removable stainless steel platform, and TD52XW stainless steel indicator.

  • Platform: 12 in x 14 in removable stainless steel weighing platform.
  • Indicator: TD52XW stainless steel indicator with IP68/NEMA 4X protection.
  • Applications: Weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.
  • Connectivity: Standard RS232 interface with optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O.

Overall Dimensions:

12.0"W x 19.3"D x 23.8"H

Product Weight:

28.7 lb

Legal-for-trade weighing

The scale is listed as legal for trade and includes NTEP compliance; its counting function is not legal for trade.

Removable stainless steel platform

The scale has a 12 in x 14 in removable stainless steel weighing platform.

Protected stainless steel indicator

The TD52XW indicator has a sandblasted stainless steel surface treatment and IP68/NEMA 4X protection.

Multiple application modes

Supported modes include weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing, and display hold.

Connectivity

A standard RS232 interface is provided, with optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O.

Durable scale construction

The scale uses a powder-coated steel base and an aluminum load cell silicon sealed against moisture.

Backlit display and membrane keyboard

The display is a 256 x 80 pixel dot matrix LCD with white LED backlight, and the keyboard has 6 function, 5 quick, and 12 alphanumeric membrane switches.

Selectable calibration

Calibration options include zero, span, and 3-point linear calibration.

Capacity x certified readability 50 lb x 0.01 lb; 800 oz x 0.16 oz; 25 kg x 0.005 kg; 25,000 g x 5 g
Platform size 12 in x 14 in
Platform construction Removable stainless steel weighing platform
Base construction Powder-coated steel base with aluminum load cell silicon sealed against moisture
Indicator TD52XW stainless steel indicator with sandblasted surface treatment
Indicator protection IP68 / NEMA 4X
Column 13-13/16 in powder-coated steel
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Maximum display resolution 1:25,000
Internal counting resolution 1:500,000
Linearity/repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature range 14°F to 104°F (-10°C to 40°C)
Standard interface RS232
Optional interfaces Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, 2 in/4 out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply
Battery Rechargeable lithium battery optional
Battery life 20 hours continuous use

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 50 lb x 0.01 lb certified readability, equivalent to 25 kg x 0.005 kg.
The scale is listed for legal-for-trade use and has NTEP compliance. The counting function is not legal for trade.
The removable stainless steel weighing platform measures 12 in x 14 in.
It supports weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing, and display hold.
RS232 is standard. Optional interfaces include Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.
The TD52XW stainless steel indicator is rated IP68/NEMA 4X.
