Penn Scale

Penn Scale Ohaus® D52XW25RQR5 Legal-for-Trade Digital Bench Scale, 50 lb x 0.01 lb, Stainless Steel, 12 x 12 in Platform

SKU: D52XW25RQR5
$1,872.91
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

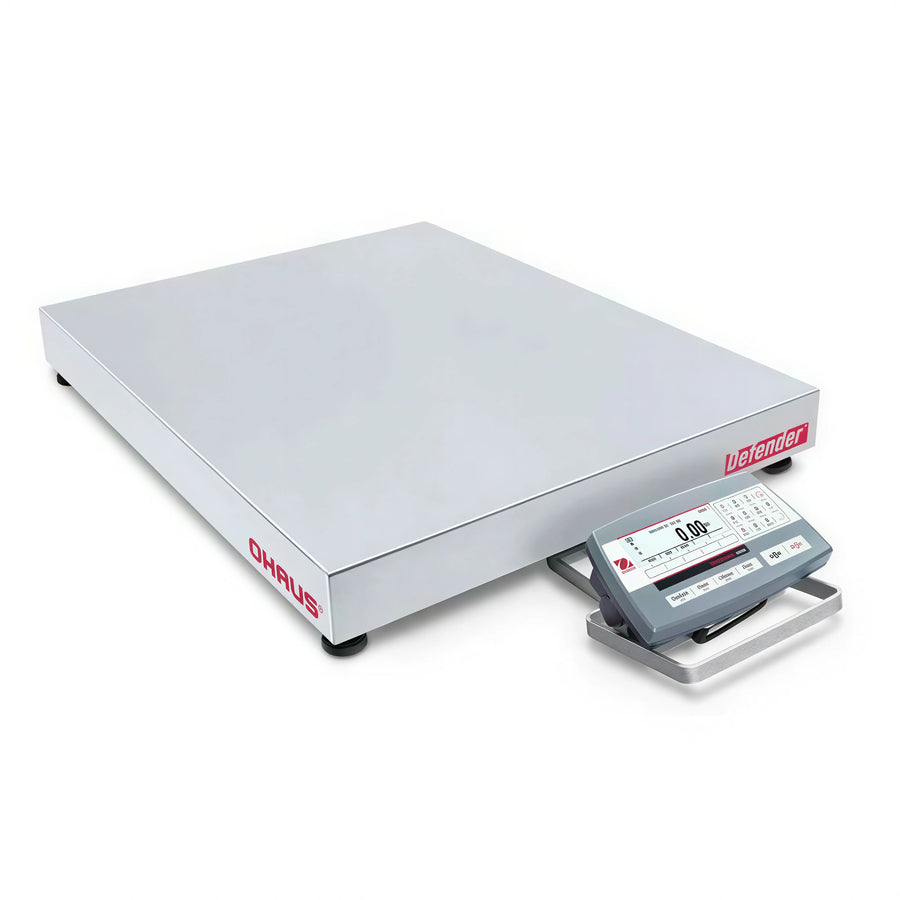

The D52XW25RQR5 is an Ohaus Defender 5000 low-profile bench scale with a 50 lb capacity and 0.01 lb readability. It has a removable stainless steel weighing platform and a stainless steel TD52XW indicator with IP68/NEMA 4X protection.

  • Supports weighing, percent weighing, piece counting, checkweighing, check counting, dynamic weighing, and display hold.
  • Includes a dot matrix LCD with white LED backlight, standard RS232 interface, and multiple selectable weighing units.
  • Designed for legal-for-trade applications with NTEP certification listed for the exact product.

Overall Dimensions:

12.0"W x 23.1"D x 4.6"H

Product Weight:

24.3 lb

Legal-for-trade weighing

The supplied product metadata identifies this scale as legal for trade, and NTEP is listed among its exact-product certifications.

Stainless steel platform

The removable weighing platform measures 12 x 12 x 3-3/4 in and is made of stainless steel.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction, sandblasted surface treatment, and IP68/NEMA 4X protection.

Multiple application modes

Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Display and keypad

The scale uses a dot matrix LCD with white LED backlight and a membrane keyboard with 6 function, 5 quick, and 12 alphanumeric switches.

Connectivity

Standard connectivity is RS232. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.

Durable weighing assembly

The base uses powder-coated steel construction, and the aluminum load cell is silicon-sealed against moisture.

Power options

The scale uses a 100-240 VAC, 50/60 Hz universal power supply; a rechargeable lithium battery is optional.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Scale type Low-profile bench scale
Capacity and readability 50 lb x 0.01 lb / 25 kg x 5 g
Platform size 12 x 12 in
Platform construction Removable stainless steel
Indicator TD52XW stainless steel indicator
Indicator protection IP68/NEMA 4X
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Linearity/repeatability ±2d
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, dynamic weighing/display hold
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O
Power supply 100-240 VAC / 50/60 Hz universal power supply
Base construction Powder-coated steel
Load cell Aluminum, silicon-sealed against moisture
Product weight 24.3 lb

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 50 lb capacity with 0.01 lb readability. Its metric specification is 25 kg x 5 g.
Yes. The product metadata identifies it as legal for trade, and NTEP is listed among its exact-product certifications.
It has a removable stainless steel platform measuring 12 x 12 x 3-3/4 in.
Available modes are weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The standard interface is RS232. Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O are optional interfaces.
The specified operating temperature range is 14°F to 104°F (-10°C to 40°C).
