Penn Scale Ohaus® D52XW250WTX7 Digital Stainless Steel Washdown Bench Scale, 500 lb x 0.10 lb, 24" x 18" Platform

SKU: D52XW250WTX7
$3,236.69
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

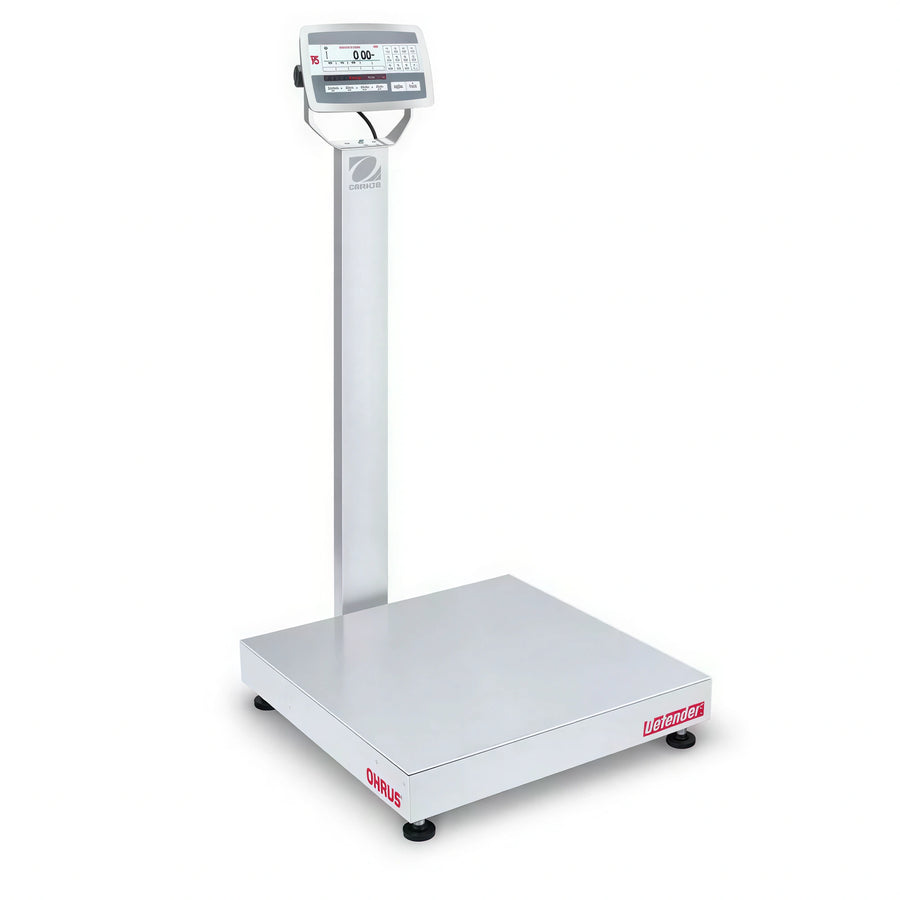

The Ohaus Defender 5000 D52XW250WTX7 is a washdown bench scale with a 500 lb capacity and 0.10 lb readability.

It features a removable 24 × 18 in stainless steel weighing platform, stainless steel frame and column, a TD52XW indicator, and a silicon-sealed IP67 stainless steel loadcell.

  • IP68/NEMA 4X-protected stainless steel indicator
  • Weighing, percent weighing, piece counting, check weighing, check counting, dynamic weighing and display hold modes
  • Standard RS232 interface with optional connectivity interfaces
  • 100–240 VAC, 50/60 Hz universal power supply

Overall Dimensions:

24.0"W x 30.5"D x 36.8"H

Product Weight:

72.0 lb

Washdown protection

The TD52XW indicator has IP68/NEMA 4X protection, and the stainless steel loadcell is silicon-sealed with IP67 protection.

Stainless steel platform and frame

The scale has a removable 24 × 18 in stainless steel weighing platform and a stainless steel frame.

Multiple application modes

Supported modes include weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing and display hold.

Operator display and controls

The indicator uses a dot matrix LCD with white LED backlight and a membrane keyboard with 6 function, 5 quick and 12 alphanumeric switches.

Connectivity

Standard RS232 is provided, with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output and 2-in/4-out discrete I/O interfaces.

Legal-for-trade weighing

The product is listed as legal for trade and has NTEP certification.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Scale style Bench
Capacity and readability 500 lb × 0.10 lb; 8,000 oz × 1.6 oz; 250 kg × 0.050 kg; 250,000 g × 50 g
Platform size 24 × 18 in
Platform construction Removable stainless steel weighing platform
Frame construction Stainless steel
Column height and construction 26-13/16 in; stainless steel
Indicator TD52XW stainless steel indicator
Indicator protection IP68 / NEMA 4X
Loadcell construction and protection Silicon-sealed IP67 stainless steel loadcell
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, check weighing, check counting, dynamic weighing and display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Auto-zero tracking Off, 0.5 d, 1 d or 3 d
Zeroing range 2% or 100% of capacity
Calibration Zero, span or 3-point linear
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature range 14°F to 104°F (-10°C to 40°C)
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output and 2-in/4-out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply
Rechargeable battery Optional lithium battery
Battery life 20 hours continuous use
Legal for trade Yes

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 500 lb capacity and 0.10 lb readability.
The removable stainless steel weighing platform measures 24 × 18 in.
The TD52XW indicator is protected to IP68/NEMA 4X, and the stainless steel loadcell has silicon-sealed IP67 protection.
Yes. It supports piece counting with optimized average piece weight, as well as check counting.
Standard RS232 is included. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output and 2-in/4-out discrete I/O.
It uses a 100–240 VAC, 50/60 Hz universal power supply. A rechargeable lithium battery is optional.
The product is listed as legal for trade and has NTEP certification.
