Penn Scale Ohaus® D52XW250RTV3 Legal-for-Trade Digital Bench Receiving Scale, 500 lb x 0.10 lb, Stainless Steel Platform

SKU: D52XW250RTV3
$3,350.80
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

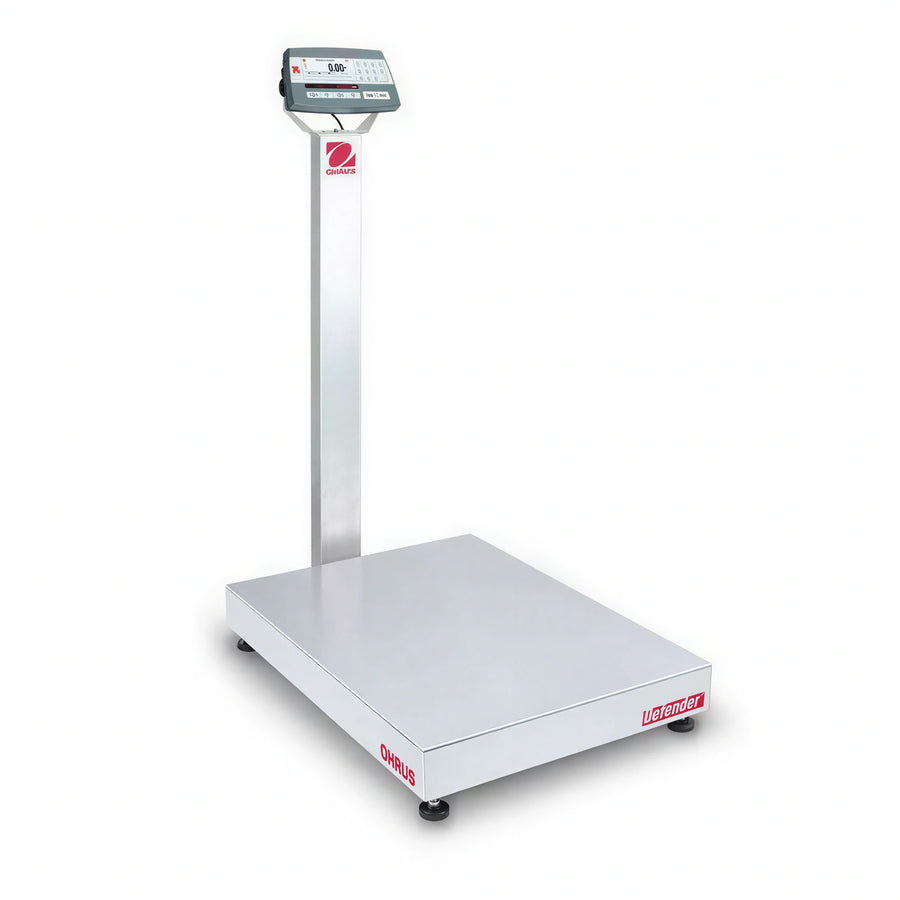

The Penn Scale D52XW250RTV3 is an Ohaus Defender 5000 bench scale with a 500 lb capacity and 0.10 lb certified readability for legal-for-trade weighing.

It has a removable stainless steel platform measuring 23-5/8 × 31-1/2 × 5-1/4 inches, a powder-coated steel column and base, and a TD52XW stainless steel indicator with IP68/NEMA 4X protection.

  • Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, and dynamic weighing/display hold.
  • Standard RS232 connectivity is provided; additional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O interfaces are optional.

Overall Dimensions:

23.6"W x 37.9"D x 48.6"H

Product Weight:

114.6 lb

Legal-for-trade weighing

The model is specified with NTEP certification and 500 lb × 0.10 lb certified readability.

Removable stainless steel platform

The weighing platform measures 23-5/8 × 31-1/2 × 5-1/4 inches.

Protected stainless steel indicator

The TD52XW indicator has a stainless steel construction with IP68/NEMA 4X protection.

Application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, and dynamic weighing/display hold.

Data connectivity

Standard RS232 is provided, with optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.

Construction

The scale uses a powder-coated steel base and column with an aluminum load cell silicon sealed against moisture.

Display and controls

The dot matrix LCD has a white LED backlight and 256 × 80 pixel resolution; controls use 6-function, 5-quick, and 12-alphanumeric membrane switches.

Overload and stabilization

Safe overload capacity is 150% of maximum capacity, with stabilization within 1 second.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Scale type Bench scale
Capacity 500 lb / 250 kg
Default readability 0.02 lb / 10 g
Certified readability 0.10 lb / 50 g
Legal-for-trade status Legal for trade
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Platform dimensions 23-5/8 × 31-1/2 × 5-1/4 in
Platform construction Removable stainless steel weighing platform
Column 38-5/8 in powder-coated steel
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Indicator TD52XW stainless steel
Indicator protection IP68 / NEMA 4X
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, dynamic weighing/display hold
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O
Power supply 100-240 VAC, 50/60 Hz universal power supply
Battery Optional rechargeable lithium battery; 20 hours continuous use
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 500 lb (250 kg) capacity and 0.10 lb (50 g) certified readability.
The removable stainless steel platform measures 23-5/8 × 31-1/2 × 5-1/4 inches.
Supported modes include weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, and dynamic weighing/display hold.
A standard RS232 interface is included. Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O are optional.
The overall dimensions are 23.6 inches wide, 37.9 inches deep, and 48.6 inches high.
