Penn Scale Ohaus® D52XW12WQS6 Digital Stainless Steel Washdown Bench Scale, 25 lb x 0.005 lb, Legal for Trade

SKU: D52XW12WQS6
$1,925.58
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

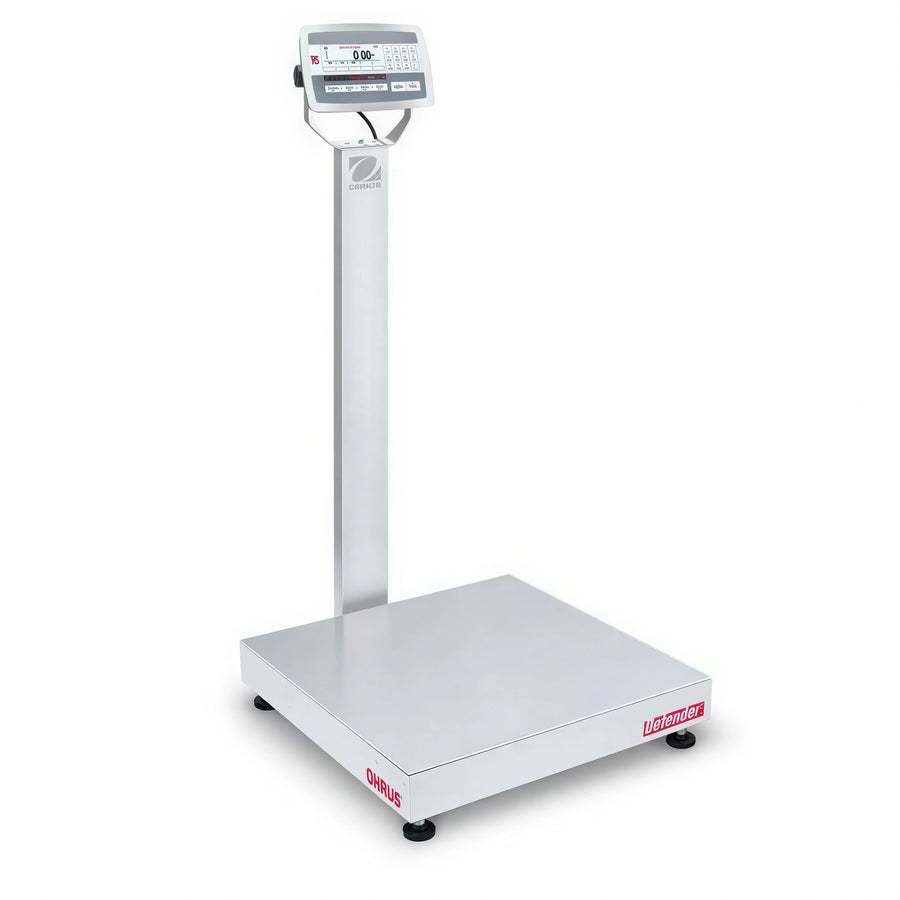

The Ohaus® Defender® 5000 D52XW12WQS6 is a 25 lb washdown bench scale with 0.005 lb readability and a stainless steel removable 10 in × 10 in weighing platform. This exact model is identified as legal for trade.

  • Durable construction: Stainless steel platform, frame, and column with a silicon-sealed IP67 stainless steel loadcell.
  • Indicator protection: TD52XW indicator with IP68/NEMA 4X protection.
  • Application modes: Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
  • Display: Dot matrix LCD with white LED backlight and 256 × 80 pixel resolution.
  • Connectivity: Standard RS232 interface.

Overall Dimensions:

10.0"W x 15.1"D x 23.6"H

Product Weight:

24.0 lb

Legal-for-trade weighing

The exact model is identified as legal for trade and is listed with NTEP certification.

Stainless steel washdown construction

The scale has a stainless steel removable weighing platform, stainless steel frame and column, an IP67 stainless steel loadcell, and an IP68/NEMA 4X indicator.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.

Backlit dot matrix display

The display is a dot matrix LCD with white LED backlight and 256 × 80 pixel resolution.

Standard RS232 interface

Provides a standard RS232 interface for data output.

Adjustable calibration

Calibration options include zero, span, or 3-point linear calibration.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Capacity 25 lb (12.5 kg; 400 oz)
Readability 0.005 lb (0.005 kg; 5 g; 0.08 oz)
Legal-for-trade Yes
Platform dimensions 10 in × 10 in × 2-15/16 in
Platform construction Stainless steel, removable
Column height 13-13/16 in stainless steel
Construction Stainless steel frame
Indicator TD52XW
Indicator protection IP68 / NEMA 4X
Loadcell protection Silicon-sealed IP67 stainless steel loadcell
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Maximum display resolution 1:25,000
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Interface Standard RS232
Power supply 100–240 VAC, 50/60 Hz
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity
Calibration Zero, span, or 3-point linear

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 25 lb capacity and 0.005 lb readability, equivalent to 12.5 kg × 5 g.
Yes. This exact model is identified as legal for trade and is listed with NTEP certification.
The stainless steel removable weighing platform measures 10 in × 10 in × 2-15/16 in.
The TD52XW indicator has IP68/NEMA 4X protection, and the silicon-sealed stainless steel loadcell has IP67 protection.
Available modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
The scale includes a standard RS232 interface.
