Penn Scale Ohaus® D52XW12RTR5 Digital Stainless Steel Legal-for-Trade Bench Receiving Scale, 25 lb Capacity, 14 x 12 in Platform

SKU: D52XW12RTR5
$1,943.12
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

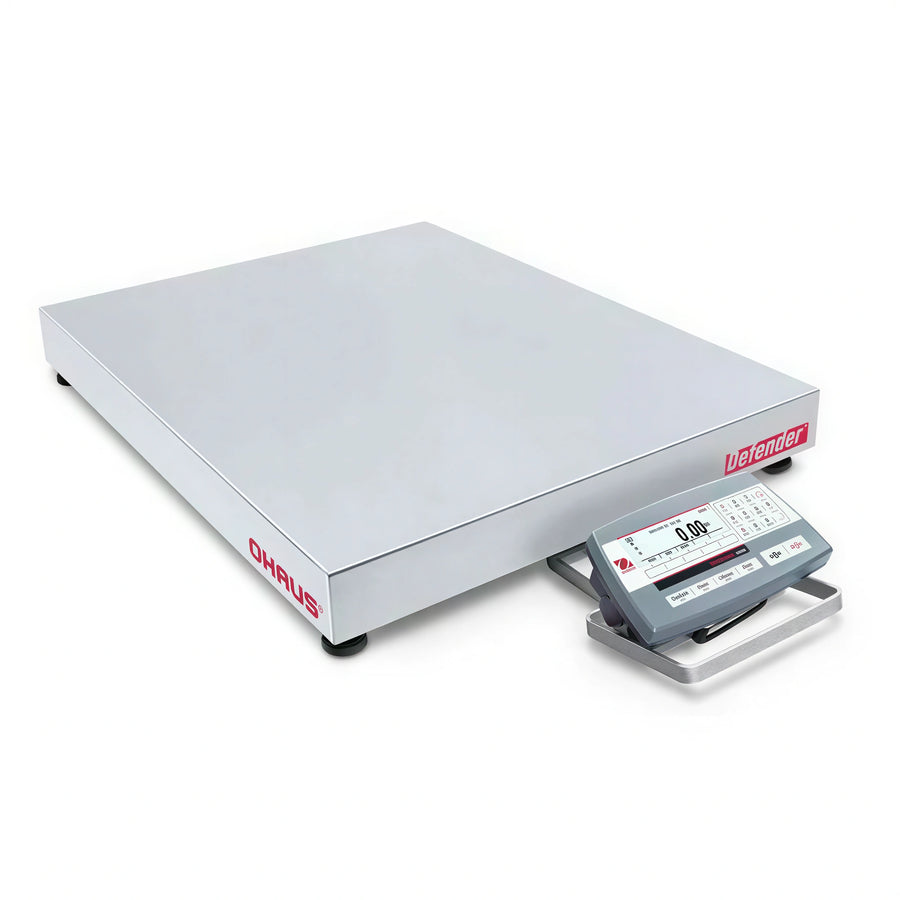

The D52XW12RTR5 is a low-profile bench receiving scale with a 25 lb capacity and a 14 x 12 in removable stainless steel weighing platform. It uses a TD52XW stainless steel indicator for legal-for-trade weighing applications.

  • Multiple weighing modes: Weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.
  • Protected indicator: The stainless steel TD52XW indicator has IP68/NEMA 4X protection and a sandblasted surface treatment.
  • Clear operation: A dot matrix LCD with white LED backlight provides a 256 x 80 pixel display, supported by membrane function, quick, and alphanumeric keys.
  • Connectivity: A standard RS232 interface supports weighing data output.

Overall Dimensions:

12.0"W x 25.1"D x 4.6"H

Product Weight:

26.5 lb

Legal-for-trade weighing

The scale is identified as legal for trade and carries NTEP certification.

Removable stainless steel platform

The 14 x 12 in weighing platform is stainless steel and removable.

Protected stainless steel indicator

The TD52XW indicator has a sandblasted surface treatment and IP68/NEMA 4X protection.

Application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.

RS232 connectivity

A standard RS232 interface is provided for data output.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Fast stabilization

The documented stabilization time is within 1 second.

Brand Ohaus®
Product series Defender® 5000
Scale type Bench, low-profile, rectangular
Capacity and readability 25 lb × 0.005 lb; 400 oz × 0.05 oz; 12.5 kg × 0.002 kg; 12,500 g × 2 g
Platform size 14 in × 12 in
Platform construction Stainless steel, removable weighing platform
Indicator TD52XW stainless steel indicator
Indicator protection IP68/NEMA 4X
Indicator mount Stainless steel front-mount bracket with handle
Base construction Powder-coated steel
Load cell Aluminum, silicon-sealed against moisture
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Standard interface RS232
Power supply 100-240 VAC, 50/60 Hz universal power supply
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity
Approximate net weight 24.3 lb
Approximate shipping weight 26.5 lb

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 25 lb capacity with 0.005 lb readability. Its metric capacity is 12.5 kg with 0.002 kg readability.
It has a 14 x 12 in removable stainless steel weighing platform.
Yes. The product is identified as legal for trade and is listed with NTEP certification.
The standard interface is RS232.
