Penn Scale Ohaus® D52XW125WQL7 Washdown Bench Scale, Stainless Steel, 250 lb x 0.05 lb, Legal-for-Trade

SKU: D52XW125WQL7
$2,937.44
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

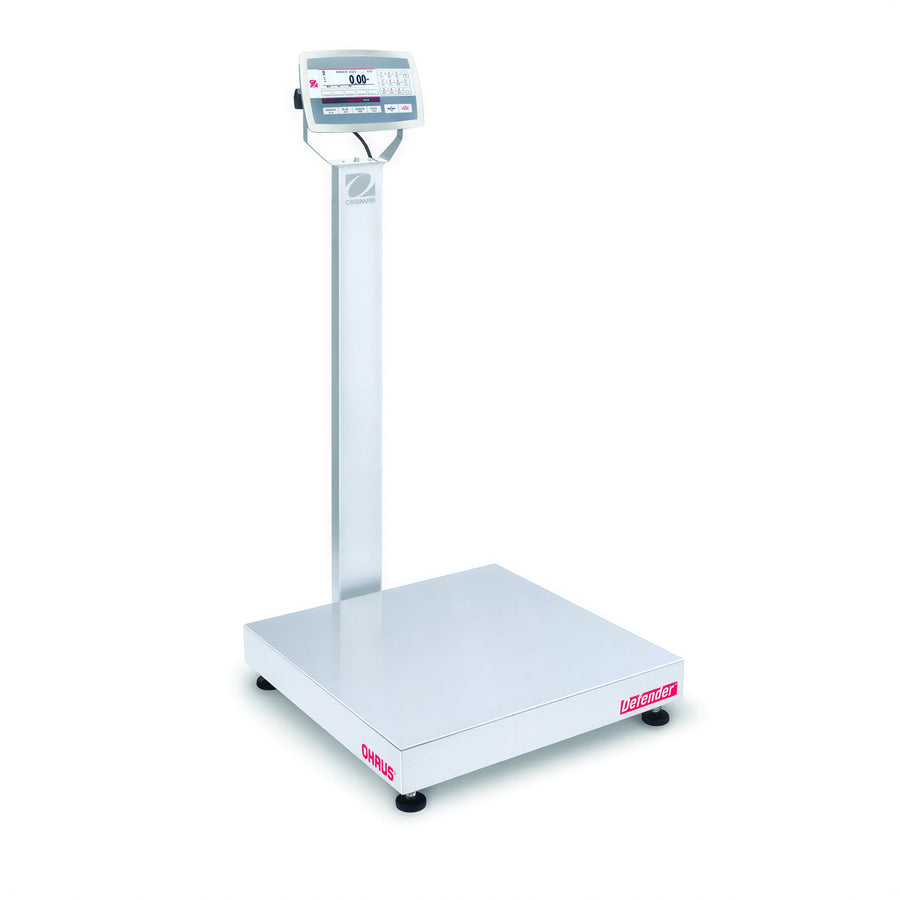

D52XW125WQL7 is an Ohaus® Defender® 5000 washdown bench scale with a 250 lb capacity, 0.01 lb general readability, and 0.05 lb certified readability for legal-for-trade weighing.

It features an 18 in x 18 in removable stainless steel weighing platform, stainless steel frame and column, a silicon-sealed IP67 stainless steel loadcell, and a TD52XW indicator with IP68/NEMA 4X protection.

  • Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.
  • NTEP-listed for legal-for-trade weighing; the counting function is not legal for trade.
  • Standard RS232 connectivity and a dot matrix LCD with white LED backlight support scale operation and data output.

Overall Dimensions:

18.0"W x 24.7"D x 36.8"H

Product Weight:

72.8 lb

Washdown construction

The scale has a stainless steel platform and frame, a silicon-sealed IP67 stainless steel loadcell, and a TD52XW indicator protected to IP68/NEMA 4X.

Legal-for-trade weighing

The exact model has a 0.05 lb certified readability and NTEP listing. The counting function is not legal for trade.

Multiple application modes

Modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.

Stainless steel platform

The removable weighing platform measures 18 in x 18 in x 4-5/16 in and is made of stainless steel.

Display and keypad

The TD52XW indicator uses a 256 x 80 pixel dot matrix LCD with white LED backlight and a membrane keyboard with 6 function, 5 quick, and 12 alphanumeric switches.

Standard connectivity

A standard RS232 interface is provided for data output.

Overload protection

The scale has a safe overload capacity of 150% of maximum capacity.

Calibration and zeroing

Calibration supports zero, span, or 3-point linear calibration; zeroing range is selectable at 2% or 100% of capacity.

Capacity 250 lb (125 kg)
General readability 0.01 lb (5 g)
Certified readability 0.05 lb (50 g; 0.050 kg)
Maximum displayed resolution 1:25,000
Internal counting resolution 1:500,000
Weighing platform 18 in x 18 in x 4-5/16 in removable stainless steel platform
Construction Stainless steel frame
Column 26-13/16 in stainless steel
Indicator TD52XW
Indicator construction 304 stainless steel with sandblasted surface treatment
Protection IP67 silicon-sealed stainless steel loadcell; IP68/NEMA 4X indicator
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, display hold
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d
Zeroing range 2% or 100% of capacity
Calibration Zero, span, or 3-point linear
Interface Standard RS232
Power supply 100-240 VAC, 50/60 Hz universal power supply
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature range 14°F to 104°F (-10°C to 40°C)

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 250 lb (125 kg) capacity and 0.05 lb (50 g; 0.050 kg) certified readability. General readability is 0.01 lb (5 g).
The exact model is listed for legal-for-trade weighing and has NTEP listing. The counting function is not legal for trade.
Overall dimensions are 18.0 in wide x 24.7 in deep x 36.8 in high. The weighing platform measures 18 in x 18 in x 4-5/16 in.
It has a silicon-sealed IP67 stainless steel loadcell and a TD52XW indicator with IP68/NEMA 4X protection.
Included modes are weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.
It uses a 100-240 VAC, 50/60 Hz universal power supply.
