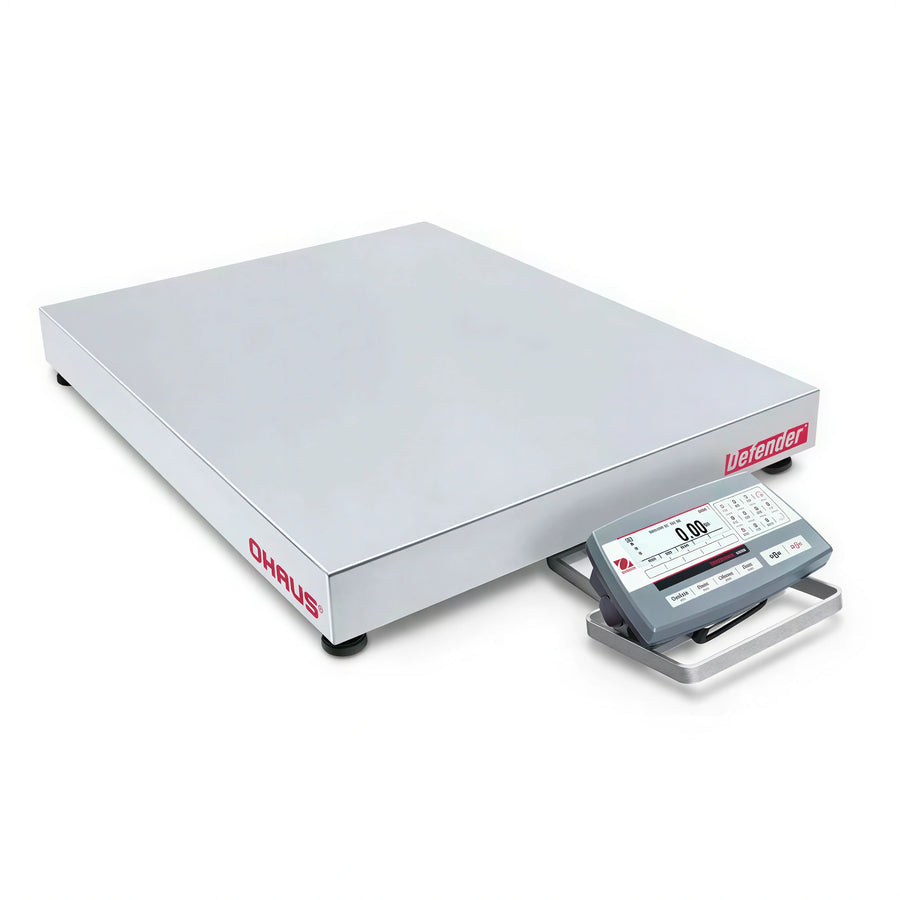

The Penn Scale D52P50RQV5 is an OHAUS Defender 5000 low-profile bench receiving scale with a 100 lb capacity, 0.02 lb readability, and a 24 × 24 in stainless steel removable weighing platform.

The TD52P ABS indicator provides a dot matrix LCD with white LED backlight, multiple weighing units, and application modes for weighing, percent weighing, piece counting, checkweighing, check counting, dynamic weighing, and display hold.

  • Stainless steel front-mount bracket with handle
  • Powder-coated steel base and aluminum loadcell sealed against moisture
  • Standard RS232 interface with optional connectivity expansions
  • 150% safe overload capacity and stabilization within 1 second

Overall Dimensions:

24.0"W x 34.6"D x 5.1"H

Product Weight:

81.6 lb

100 lb weighing capacity

The scale is specified for 100 lb × 0.02 lb, 1,600 oz × 0.32 oz, 50 kg × 0.010 kg, and 50,000 g × 10 g.

Stainless steel platform

The removable weighing platform measures 24 × 24 in and is stainless steel.

Multifunction indicator

The TD52P ABS indicator supports weighing, percent weighing, piece counting with optimized APW, checkweighing and check counting, dynamic weighing, and display hold.

Backlit LCD display

The indicator uses a dot matrix LCD with white LED backlight and 256 × 80 pixel resolution.

Connectivity

A standard RS232 interface is provided; optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.

Overload protection

The scale has a safe overload capacity of 150% of maximum capacity.

Front-mount bracket

A stainless steel front-mount bracket with handle supports the indicator.

Trade-use certifications

The product is identified as legal for trade and has NTEP, CE, and CSA certifications or listings.

Capacity and readability 100 lb × 0.02 lb; 1,600 oz × 0.32 oz; 50 kg × 0.010 kg; 50,000 g × 10 g
Platform size 24 × 24 in
Platform construction Stainless steel, removable
Indicator TD52P ABS
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/check counting, dynamic weighing/display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Interface Standard RS232; optional Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O
Power supply 100–240 VAC, 50/60 Hz universal power supply; rechargeable lithium battery optional
Calibration Zero, span, or 3-point linear
Zeroing range 2% or 100% of capacity
Auto-zero tracking Off, 0.5d, 1d, or 3d
Mount Stainless steel front-mount bracket with handle
Base construction Powder-coated steel base with aluminum loadcell silicon-sealed against moisture
Legal for trade Yes; NTEP
Certifications and listings NTEP, CE, CSA

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

It has a 100 lb capacity with 0.02 lb readability. It is also specified at 50 kg × 0.010 kg and 50,000 g × 10 g.
The removable stainless steel weighing platform measures 24 × 24 in.
The scale supports weighing, percent weighing, piece counting with optimized APW, checkweighing, check counting, dynamic weighing, and display hold.
A standard RS232 interface is included. Optional interfaces include Ethernet, Wi-Fi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O.
The product is identified as legal for trade and carries NTEP certification or listing, along with CE and CSA certifications or listings.
It uses a 100–240 VAC, 50/60 Hz universal power supply. A rechargeable lithium battery is optional.
