Penn Scale Ohaus® D52P50RQV3 Commercial Legal-for-Trade Bench Scale, Digital, Stainless Steel 24 x 24 in Platform, 100 lb x 0.02 lb

SKU: D52P50RQV3
$2,615.05

Want to speak to an expert?

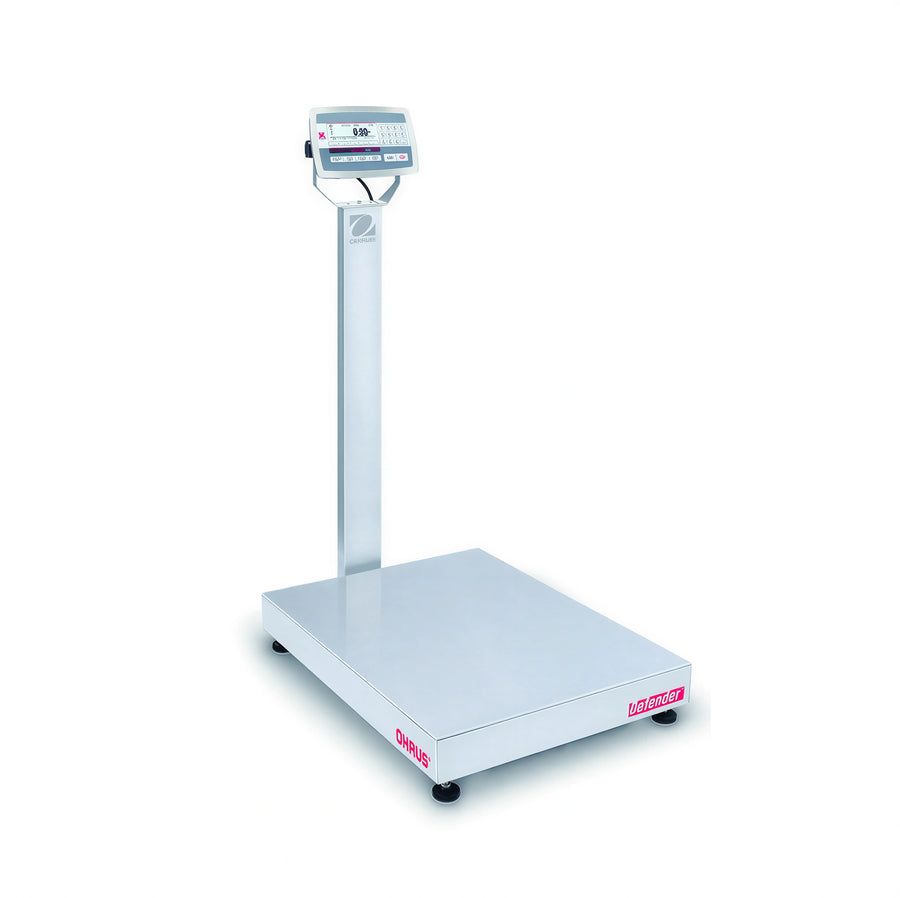

The Ohaus Defender 5000 D52P50RQV3 is a bench scale with a 100 lb (50 kg) capacity and 0.02 lb (10 g) certified readability. It features a 24 x 24 in stainless steel removable weighing platform, a 38-5/8 in powder-coated steel column, and a TD52P ABS indicator.

Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, and dynamic weighing with display hold. The scale has a dot matrix LCD with white LED backlight and standard RS232 connectivity. NTEP certification supports legal-for-trade weighing; the counting function is not legal for trade.

Overall Dimensions:

24.0"W x 30.4"D x 47.4"H

Product Weight:

94.8 lb

Legal-for-trade weighing

NTEP-certified weighing for legal-for-trade applications; the counting function is not legal for trade.

Certified weighing capacity

100 lb (50 kg) capacity with 0.02 lb (10 g) certified readability.

Stainless steel platform

24 x 24 in removable weighing platform made of stainless steel.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.

Backlit display

Dot matrix LCD with white LED backlight and 256 x 80 pixel resolution.

Connectivity

Standard RS232 interface; optional interfaces include Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Fast stabilization

Specified stabilization time is within 1 second.

Capacity 100 lb / 50 kg
Certified readability 0.02 lb / 10 g
Platform size 24 x 24 in
Platform depth 5-1/8 in
Platform construction Stainless steel, removable
Column height 38-5/8 in
Column construction Powder-coated steel
Indicator TD52P ABS
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Internal counting resolution 1:500,000
Linearity and repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Standard interface RS232
Optional interfaces Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, 2 in/4 out discrete I/O
Power supply 100-240 V, 50/60 Hz universal power supply
Battery Rechargeable lithium battery, optional
Battery life 20 hours continuous use
Calibration Zero, span, or 3-point linear
Auto-zero tracking Off, 0.5d, 1d, or 3d
Zeroing range 2% or 100% of capacity
Base construction Powder-coated steel
Loadcell Aluminum, silicon sealed against moisture

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Frequently Asked Questions

The scale has a 100 lb (50 kg) capacity and 0.02 lb (10 g) certified readability.
It is identified for legal-for-trade weighing and has NTEP certification. The counting function is not legal for trade.
The removable stainless steel weighing platform measures 24 x 24 in and is 5-1/8 in deep.
Available modes are weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.
RS232 is standard. Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O are optional.
The specified operating temperature range is 14°F to 104°F (-10°C to 40°C).
A rechargeable lithium battery is optional, with a specified battery life of 20 hours of continuous use.
