Penn Scale Ohaus® D52P500RTV3 Legal-for-Trade Digital Bench Receiving Scale, 1000 lb Capacity, Stainless Steel Platform

SKU: D52P500RTV3
$3,132.95
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment

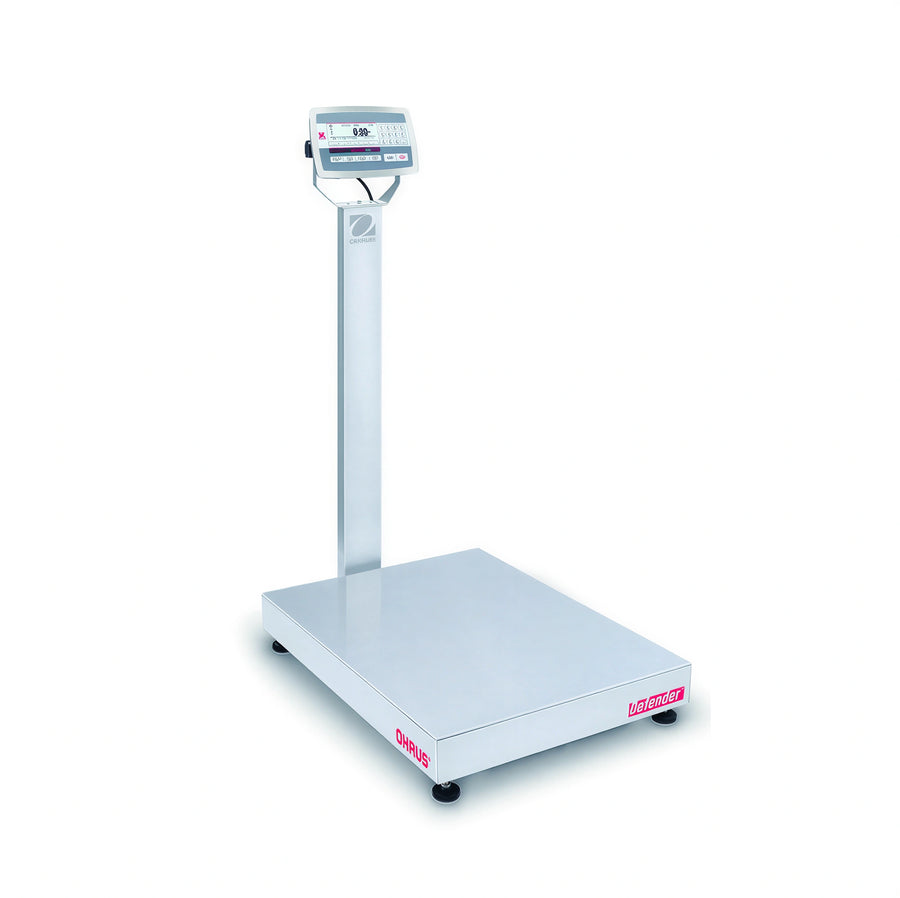

The Ohaus® Defender® 5000 D52P500RTV3 is a bench scale with a 1000 lb capacity and 0.20 lb certified readability. Its removable stainless steel platform measures 23-5/8 in × 31-1/2 in × 5-1/4 in.

The TD52P ABS indicator features a white LED-backlit dot matrix LCD, multiple weighing and checking modes, and standard RS232 connectivity. The model is identified for NTEP legal-for-trade applications; its counting function is not legal for trade.

  • Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing and checkcounting, dynamic weighing, and display hold.
  • Powder-coated steel base and column construction with an aluminum load cell silicon sealed against moisture.
  • Universal 100-240 VAC, 50/60 Hz power supply.

Overall Dimensions:

23.6"W x 37.9"D x 47.4"H

Product Weight:

112.4 lb

Legal-for-trade weighing

The product is identified as legal for trade and carries NTEP certification/listing; the counting function is not legal for trade.

1000 lb capacity

Provides 1000 lb capacity with 0.20 lb certified readability and 500 kg capacity with 100 g certified readability.

Removable stainless steel platform

The platform measures 23-5/8 in × 31-1/2 in × 5-1/4 in and is removable.

Multiple application modes

Supports weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing, and display hold.

Backlit indicator display

The TD52P ABS indicator uses a white LED-backlit dot matrix LCD with 256 × 80 pixels and a membrane keyboard.

Data connectivity

Includes standard RS232 connectivity; Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and discrete I/O are optional interface choices.

Overload protection

The safe overload capacity is 150% of maximum capacity.

Fast stabilization

Stabilization time is within 1 second.

Capacity 1000 lb / 500 kg
Certified readability 0.20 lb / 100 g
Default readability 0.05 lb / 20 g
Platform dimensions 23-5/8 in × 31-1/2 in × 5-1/4 in
Platform construction Stainless steel, removable
Indicator TD52P ABS
Display Dot matrix LCD with white LED backlight, 256 × 80 pixels
Keyboard 6-function, 5-quick, 12-alphanumeric membrane switches
Column 38-5/8 in / 980 mm powder-coated steel
Base construction Powder-coated steel
Load cell Aluminum, silicon sealed against moisture
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Maximum display resolution 1:25,000
Internal counting resolution 1:500,000
Linearity/repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F / -10°C to 40°C
Interfaces Standard RS232; optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O
Power supply 100-240 VAC / 50/60 Hz universal power supply
Calibration Zero, span, or 3-point linear
Zeroing range 2% or 100% of capacity
Auto-zero tracking Off, 0.5 d, 1 d, or 3 d

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 1000 lb capacity with 0.20 lb certified readability. The metric capacity and certified readability are 500 kg and 100 g.
The product is identified as legal for trade and has NTEP certification/listing for weighing applications. Its counting function is not legal for trade.
The listed overall dimensions are 23.6 in wide × 37.9 in deep × 47.4 in high.
Standard connectivity is RS232. Optional interfaces include Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2 in/4 out discrete I/O.
