Penn Scale Ohaus® D52P250RTX5 Digital Legal-for-Trade Bench Receiving Scale, 500 lb, 18 x 24 in Stainless Steel Platform

SKU: D52P250RTX5
$2,086.76
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

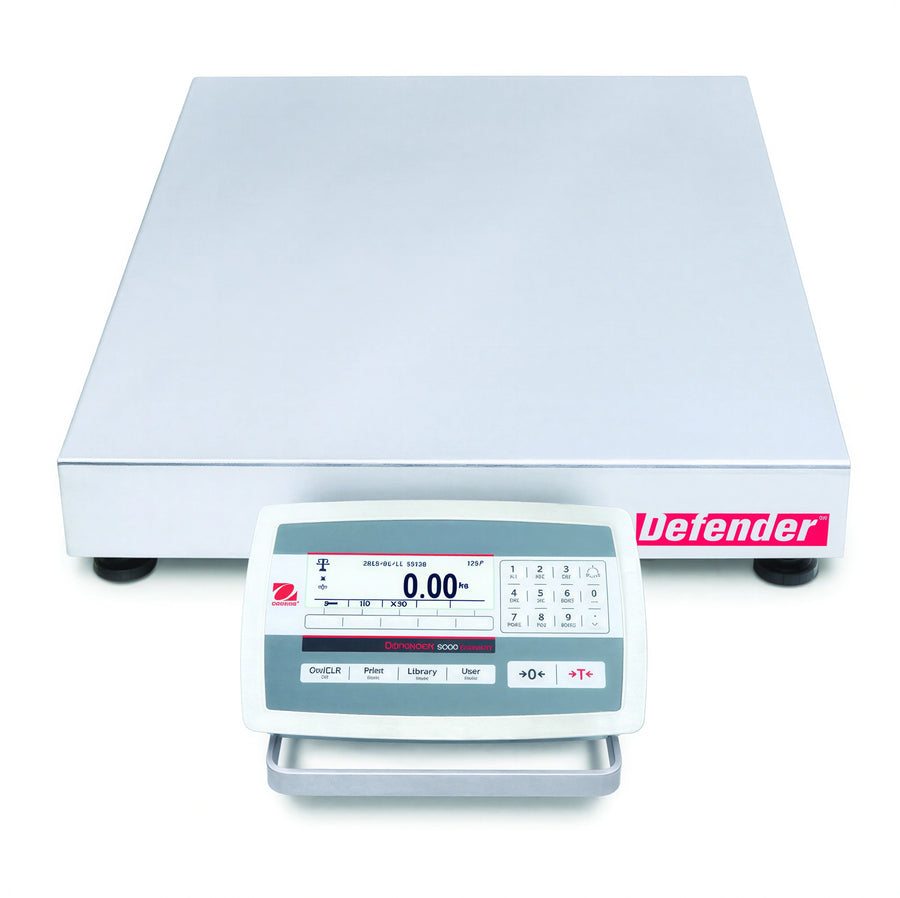

The Penn Scale Ohaus® Defender® 5000 D52P250RTX5 is a low-profile bench receiving scale with a 500 lb capacity and a removable stainless steel platform measuring 24 x 18 in.

It uses a TD52P ABS indicator with a backlit dot matrix LCD, standard RS232 connectivity, and weighing, percent weighing, piece counting, checkweighing, checkcounting, dynamic weighing, and display-hold modes. The scale provides 500 lb x 0.10 lb certified readability for legal-for-trade weighing; the counting function is not legal for trade.

  • Stainless steel platform and front-mount bracket with handle
  • Powder-coated steel base with moisture-sealed aluminum load cell
  • 100–240 V, 50/60 Hz power supply
  • NTEP, CE, and CSA certifications

Overall Dimensions:

18.0"W x 34.9"D x 5.1"H

Product Weight:

59.5 lb

Legal-for-trade weighing

Provides 500 lb x 0.10 lb certified readability and NTEP certification; the counting function is not legal for trade.

Removable stainless steel platform

The low-profile platform measures 24 x 18 x 5-1/8 in and is removable for cleaning or handling.

Multifunction weighing

Application modes include weighing, percent weighing, piece counting with optimized APW, checkweighing, checkcounting, dynamic weighing, and display hold.

TD52P ABS indicator

The indicator has a dot matrix LCD with white LED backlight, 6 function keys, 5 quick keys, and 12 alphanumeric membrane switches.

Connectivity

Standard RS232 is included; Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O are optional.

Overload protection

Safe overload capacity is 150% of maximum capacity.

Moisture-sealed load cell

The aluminum load cell is silicon-sealed against moisture.

Related Searches

Best Sellers Commercial Food Scale Commercial Food Scales Equipment Food Prep Equipment Food Preparation Equipment New Arrivals Penn Scale Receiving Scale Receiving Scales Restaurant Equipment
Capacity 500 lb / 250 kg
Readability 0.02 lb / 10 g
Certified readability 0.10 lb / 50 g
Platform size 24 x 18 x 5-1/8 in
Indicator TD52P ABS
Display Dot matrix LCD with white LED backlight, 256 x 80 pixels
Weighing units lb, oz, lb:oz, kg, g, metric tonnes, short ton, custom unit
Application modes Weighing, percent weighing, piece counting with optimized APW, checkweighing/checkcounting, dynamic weighing/display hold
Internal counting resolution 1:500,000
Maximum display resolution 1:25,000
Linearity/repeatability ±2d
Safe overload capacity 150% of maximum capacity
Stabilization time Within 1 second
Operating temperature 14°F to 104°F (-10°C to 40°C)
Construction Stainless steel removable platform, powder-coated steel base, aluminum load cell
Calibration Zero, span, or 3-point linear
Interface Standard RS232; optional Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, 2-in/4-out discrete I/O
Power supply 100–240 V / 50/60 Hz
Battery Optional rechargeable lithium battery
Battery life 20 hours continuous use
Legal-for-trade resolution 500 lb x 0.10 lb / 250 kg x 50 g
Scale dimensions 34.9 x 18 x 5.1 in
Weight 59.5 lb

Certifications & Compliance

Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The scale has a 500 lb / 250 kg capacity.
The removable stainless steel platform measures 24 x 18 x 5-1/8 in.
It provides NTEP-certified legal-for-trade weighing at 500 lb x 0.10 lb; the counting function is not legal for trade.
A standard RS232 interface is included. Ethernet, WiFi/Bluetooth, RS232/RS485/USB, analog output, and 2-in/4-out discrete I/O are optional.
It uses a 100–240 V, 50/60 Hz power supply.
