Pacific Stainless Products

Pacific Stainless Products WT10230S16CO 16-Gauge 304 Stainless Steel Work Table, Cantilever Overshelf, 6" Backsplash, 102"W x 30"D

SKU: WT10230S16CO
$3,225.60
/each
Enter ZIP for a shipping estimate
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Beverage Equipment Beverage Equipment Cocktail Stations Commercial Work Tables Equipment Ice Machines & Beverage Equipment New Arrivals Pacific Stainless Products Restaurant Equipment Stainless Steel Prep Tables Tables & Workstations Underbar Equipment Work Tables & Fabrication

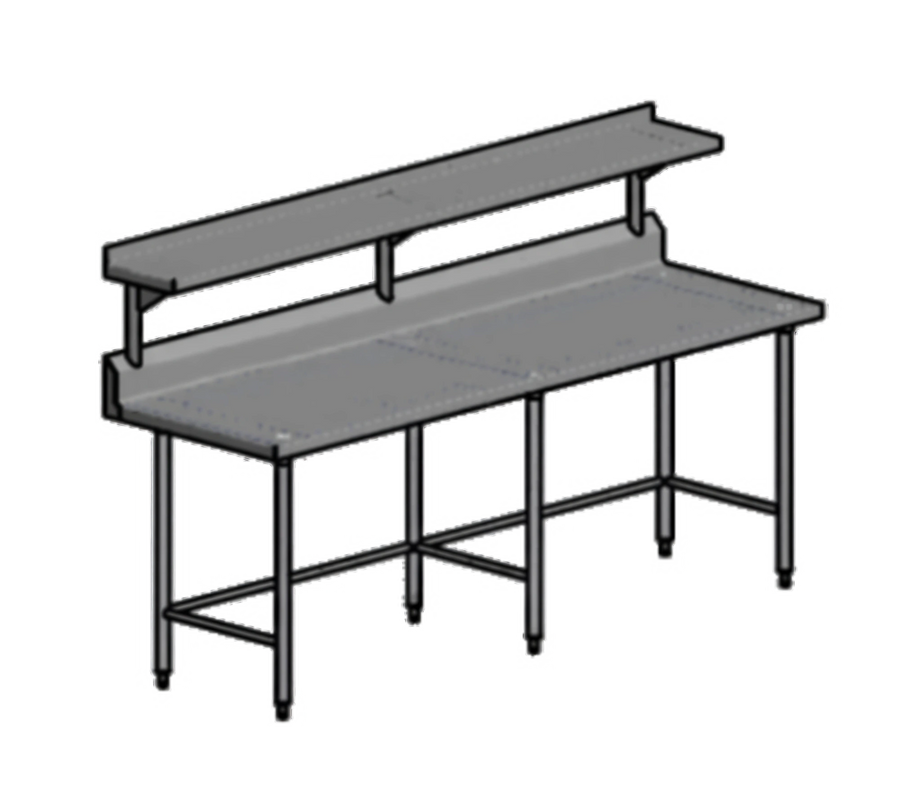

The WT10230S16CO is a 102-inch-wide, 30-inch-deep stainless steel work table with a single 16-inch cantilever overshelf and 6-inch backsplash.

  • Work surface: 16-gauge Type 304 stainless steel with a #4 satin finish.
  • Support: Six 1-5/8-inch stainless steel tube legs with stainless adjustable feet, stainless tube stretchers, and a 14-gauge galvanized U-channel understructure.
  • Assembly: Fully assembled and made in the USA.

Overall Dimensions:

102.0"W x 30.0"D x 54.0"H

Product Weight:

297.5 lb

Type 304 stainless steel top

The work surface is 16-gauge Type 304 stainless steel with a #4 satin finish.

Cantilever overshelf

Includes one 16-inch-wide, 18-gauge stainless steel cantilever overshelf.

Backsplash

Includes a 6-inch backsplash specified as 2 inches by 6 inches.

Six-leg support

Six 1-5/8-inch stainless steel tube legs include stainless adjustable feet.

Galvanized understructure

The understructure uses 14-gauge galvanized U-channels.

Stainless tube stretchers

Includes 1-inch stainless steel round tube stretchers.

Rounded edge

The table edge is identified as rounded, rolled, or bullnose.

Fully assembled

The work table is supplied fully assembled.

Product type Work table with cantilever overshelf
Series C Series
Top material Type 304 stainless steel
Top gauge 16 gauge
Top finish #4 satin finish
Overshelf type Single cantilever overshelf
Overshelf width 16 in
Overshelf gauge 18 gauge stainless steel
Backsplash 2 in x 6 in; 6 in high
Base type Open with side and rear crossrails
Understructure 14-gauge galvanized U-channels
Legs Six 1-5/8 in stainless steel tube legs
Feet Stainless adjustable feet
Stretchers 1 in stainless steel round tube
Assembly Fully assembled
Origin Made in USA

Certifications & Compliance

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The table is 102 inches wide, 30 inches deep, and 54 inches high.
The work surface is 16-gauge Type 304 stainless steel with a #4 satin finish.
Yes. It includes one 16-inch-wide, 18-gauge stainless steel cantilever overshelf.
Yes. It includes a 6-inch backsplash specified as 2 inches by 6 inches.
The table has six 1-5/8-inch stainless steel tube legs with stainless adjustable feet.
Yes. The product is specified as fully assembled.
It is made in the USA.
