Oscartek

Oscartek Rosa ROSA RMA90C Red Meat 90° Curved Refrigerated Showcase, 78", Extra-Clear Glass, Front Air Baffle

SKU: ROSA RMA90C
$26,476.04
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

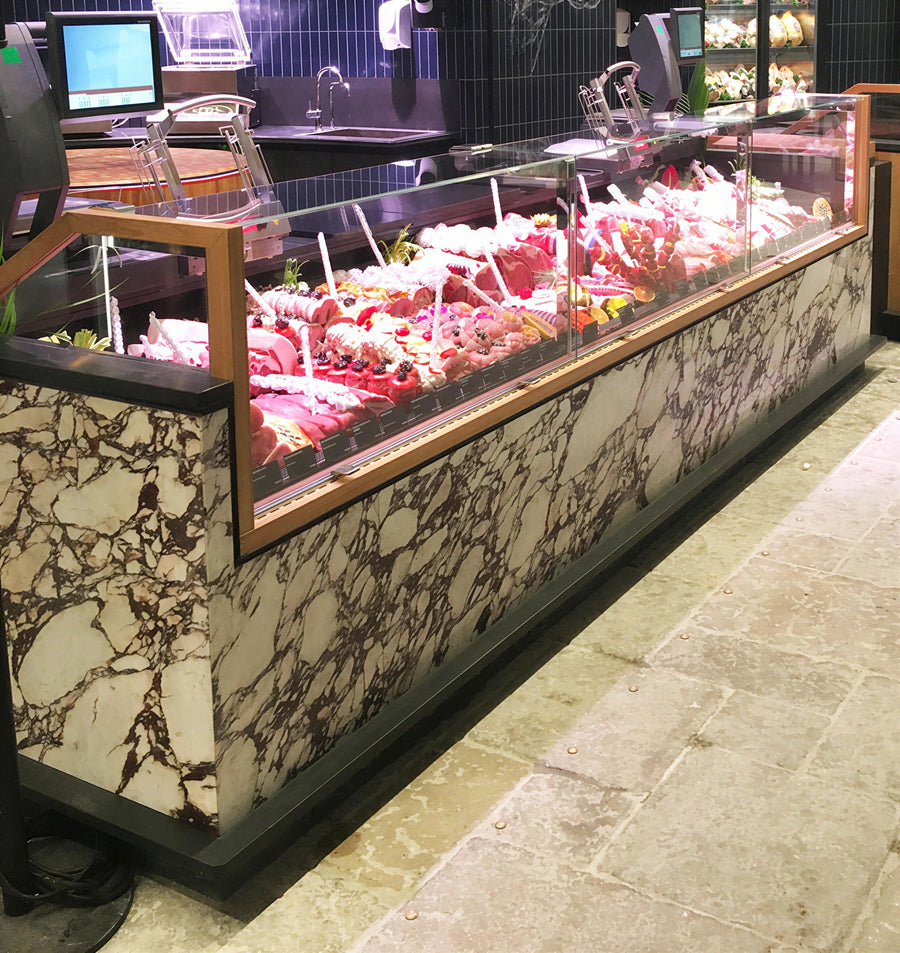

The ROSA RMA90C is a 78-inch 90° open curved refrigerated showcase for red meat display. It features extra-clear front and top glass with a front air baffle, heated glass sides, and diffused 3000°K LED lighting.

  • Sliding acrylic back doors and a stainless steel lower interior foam tub.
  • Galvanized chassis structure and tempered glass construction.
  • Standard case finish includes an unfinished front and stainless steel sides.

Overall Dimensions:

78.13"W x 32.31"D x 47.25"H

Product Weight:

990.0 lb

90° curved format

Open curved configuration for red meat display.

Extra-clear glass

Extra-clear front and top glass with a front air baffle.

Heated glass sides

Glass sides are heated.

Diffused LED lighting

Diffused LED lighting rated at 3000°K.

Sliding acrylic back doors

Operator-side access uses sliding acrylic back doors.

Interior construction

Stainless steel lower interior foam tub.

Refrigeration

Self-contained, fan-ventilated refrigeration with a deck display area and a 38°F to 41°F operating temperature.

Standard case finish

Unfinished front with stainless steel sides.

Electrical configuration

115 V / 1 ph / 60 Hz supply with 1500 W / 14.2 A power consumption.

Related Searches

Best Sellers Commercial Deep Fryers Display Refrigeration New Arrivals Oscartek Refrigerated Deli, Bakery & Sushi Cases Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment
Display format 90° open curved
Application Red meat showcase/display
External dimensions 78.13 W x 32.31 D x 47.25 H in
Refrigeration Self-contained, fan ventilated
Refrigeration display area Deck
Operating temperature 38°F to 41°F
Compressor 1 / Hermetic
BTU rating 5400 BTU at +14°F evaporator temperature
Electrical supply 115 V / 1 ph / 60 Hz
Power consumption 1500 W / 14.2 A
Defrost Automatic
Climatic class 75°F / 55% RH
Refrigerant gas R404A / R452A
Pipe size 5/8 in suction, 5/16 in liquid
Glass construction All tempered glass; extra-clear front and top glass
Side glass Heated glass sides
Lighting Diffused LED, 3000°K
Back doors Sliding acrylic
Interior finish Stainless steel lower interior foam tub
Chassis structure Galvanized
Standard case finish Unfinished front with stainless steel sides
Service type Full service
Net weight 380 lb
Crated weight 990 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

The external dimensions are 78.13 inches wide, 32.31 inches deep, and 47.25 inches high.
The specified operating temperature is 38°F to 41°F.
It uses 115 V, single-phase, 60 Hz electrical service and is rated at 1500 W and 14.2 A.
It has self-contained, fan-ventilated refrigeration with a deck display area.
It has extra-clear front and top glass, heated glass sides, all tempered glass construction, and diffused 3000°K LED lighting.
The showcase has sliding acrylic back doors.
The specified refrigerant gas is R404A / R452A.
The net weight is 380 lb and the crated weight is 990 lb.
