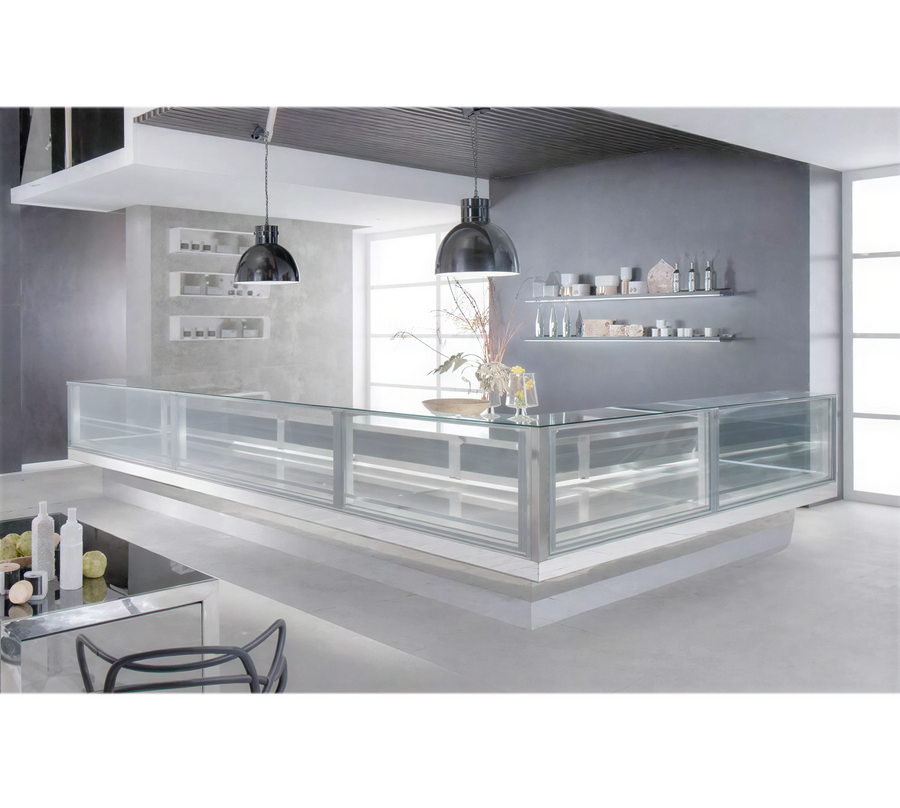

Oscartek La Crosse LA CROSSE CA90 Self-Contained Refrigerated Chocolate Display Showcase, 63" Customer-Side, 90° Square, Double-Pane Glass
SKU: LA CROSSE CA90
$35,753.63
The La Crosse CA90 is a self-contained refrigerated chocolate display showcase with a 63.0 in customer-side length and 90° square configuration.
- Double-pane lift-up front glass and double-pane glass side ends
- Lift-up deck and evaporator for cleaning the tank
- Diffused LED lighting, plexiglass sliding doors, internal condensing unit, and humidity control
- Case ships standard unfinished
Overall Dimensions:
63.0"W x 45.38"D x 45.25"HProduct Weight:
1179.0 lbSelf-contained refrigeration
The showcase uses a self-contained ventilated refrigeration system with an internal condensing unit.
Double-pane glass
The front glass is lift-up, and the side ends use double-pane glass.
Cleaning access
The deck and evaporator lift up to allow cleaning of the tank.
Humidity control
Humidity control is specified at 35%–70%.
LED lighting
Diffused LED lighting is specified at 3000 K.
Plexiglass sliding doors
Plexiglass sliding doors are included as a standard feature.
Chocolate display configuration
The unit is a 90° square chocolate display/showcase.
Standard unfinished case
Cases ship standard unfinished.
Product type
Refrigerated chocolate display/showcase
Configuration
90° square
Customer-side length
63 in
Front glass
Straight, double-pane lift-up glass
Side glass
Double-pane glass ends
Refrigeration
Self-contained, ventilated
Display area
Deck
Operating temperature
14°C / 58°F
Humidity control
35%–70%
Lighting
Diffused LED, 3000 K
Doors
Plexiglass sliding doors
Condensing unit
Internal
Refrigerant
R404A
Electrical supply
208–220 V / 60 Hz / 1 phase
Current draw
6 A
Power consumption
1,050 W
Compressor
1 hermetic compressor
Defrost
Electric
Cooling output
2,600 BTU at +35°F evaporator temperature
Climatic class
3 / 25°C / 77°F / 60% relative humidity
Case finish
Standard unfinished
Product dimensions
63.0 in W × 45.38 in D × 45.25 in H
Shipping dimensions
63 in W × 46 in D × 46 in H
Weight
1,179 lb
Certifications & Compliance
Documents
Frequently Asked Questions
It uses self-contained, ventilated refrigeration with an internal condensing unit.
The specified electrical supply is 208–220 V, 60 Hz, single phase, with a 6 A draw.
The listed dimensions are 63.0 in wide, 45.38 in deep, and 45.25 in high.
Yes. It has double-pane lift-up front glass, and the deck and evaporator also lift for tank cleaning.
Cases ship standard unfinished.
