Oscartek Gem R4 GEM R4 COMBI M1 1300 Refrigerated See-Through Floor Display Case, 2 Shelves, Stainless Steel Ends, 51-5/16"W

SKU: GEM R4 COMBI M1 1300
$22,735.40

Want to speak to an expert?

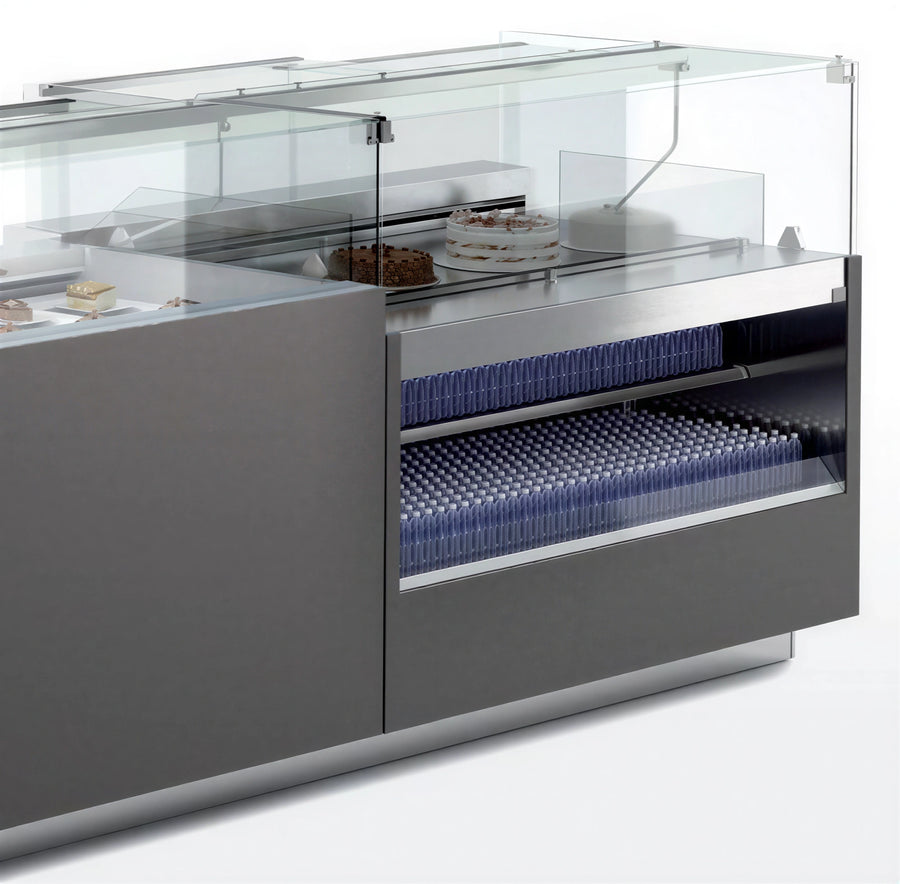

The Oscartek GEM R4 COMBI M1 1300 is a refrigerated top-and-bottom see-through floor display case with front and top glass, a front air baffle, heated glass sides, and two shelves.

  • All tempered glass with diffused 3000°K LED lighting
  • Sliding acrylic back doors
  • High-polished stainless steel interior and stainless steel lower interior foam tub
  • Galvanized chassis structure with rear ventilation
  • Ships standard with an unfinished front and polished stainless steel skin sides

Overall Dimensions:

51.31"W x 32.31"D x 47.25"H

Product Weight:

450.0 lb

Refrigerated top and bottom

Provides refrigerated display areas in both the top and bottom sections.

See-through glass display

Uses front and top glass with a front air baffle.

Tempered glass construction

All glass is tempered, and the glass sides are heated.

LED lighting

Includes diffused 3000°K LED lighting.

Sliding acrylic back doors

Provides rear access through sliding acrylic doors.

Stainless steel interior

Includes a high-polished stainless steel interior and stainless steel lower interior foam tub.

Case construction

Uses a galvanized chassis structure and rear ventilation.

Standard exterior finish

Cases ship standard with an unfinished front and polished stainless steel skin sides.

Case type Refrigerated see-through floor display case
Refrigerated sections Top and bottom
Shelf quantity 2
Ends Stainless steel
Mounting Floor mount
Service type Full service/self-service
Width 51.31 in
Depth 32.31 in
Height 47.25 in
Refrigeration type Fan ventilated
Display area Top and bottom display
Operating temperature 39°F
Compressor 1 / hermetic
BTU capacity at +10°F evaporator temperature 4,700 BTU
Electrical supply 208-220 V / 1 ph / 60 Hz
Power consumption 1,550 W / 7.5 A
Defrost Electric
Climatic class 75°F / 55% RH
Refrigerant R404A / R452A
Glass All tempered glass
Lighting Diffused 3000°K LED
Back doors Sliding acrylic
Glass sides Heated
Interior High-polished stainless steel
Lower interior Stainless steel foam tub
Chassis Galvanized
Ventilation Rear
Weight 450.0 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Frequently Asked Questions

Yes. The GEM R4 COMBI M1 1300 has refrigerated top and bottom display areas.
It has two shelves.
The case is 51.31 in wide, 32.31 in deep, and 47.25 in high.
It requires 208-220 V, 1 phase, 60 Hz service and is rated at 1,550 W and 7.5 A.
The operating temperature is 39°F.
It uses sliding acrylic back doors.
