Oscartek Gem R4 GEM R4 COMBI H2 2000 Self-Contained Refrigerated See-Through Display Case, Top & Bottom, 3 Shelves, 78-7/8"W

SKU: GEM R4 COMBI H2 2000
$23,037.49
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

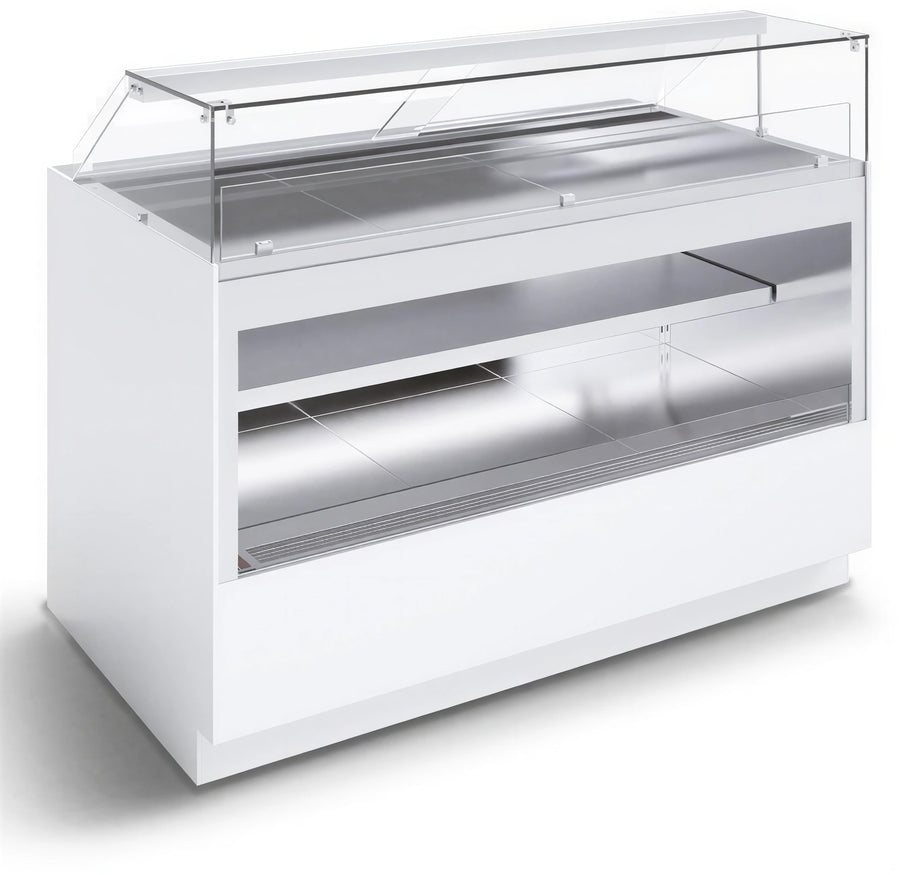

The GEM R4 COMBI H2 2000 is a floor-mounted, self-contained refrigerated see-through display case with refrigerated top and bottom sections. It measures 78-7/8 inches wide and includes three shelves, front and top tempered glass with a front air baffle, heated glass sides, and sliding acrylic back doors.

  • Diffused 3000°K LED lighting
  • High polished stainless steel interior with a stainless steel lower interior foam tub
  • Galvanized chassis structure and rear ventilation
  • 208-220V, single-phase, 60Hz electrical supply with 2,000W power consumption

Overall Dimensions:

78.87"W x 32.31"D x 55.06"H

Product Weight:

600.0 lb

Refrigerated top and bottom

Both the top and bottom display sections are refrigerated.

Self-contained refrigeration

The unit uses self-contained refrigeration with fan-ventilated refrigeration.

See-through glass display

Front and top glass provide the see-through display configuration, with a front air baffle.

Tempered glass construction

All glass is tempered, and the side glass is heated.

LED lighting

Diffused LED lighting is rated at 3000°K.

Sliding acrylic back doors

Sliding acrylic doors provide access from the back.

Stainless steel interior

The interior is high polished stainless steel and includes a stainless steel lower interior foam tub.

Electrical configuration

The model uses 208-220V, single-phase, 60Hz electrical service and consumes 2,000W at 10.5A.

Related Searches

Best Sellers Display Refrigeration Food Displays & Merchandisers General Refrigerated Display Cases New Arrivals Oscartek Refrigerated Display Case Equipment Refrigeration & Ice Restaurant Equipment
Product Type See-through display case
Refrigeration Self-contained refrigeration
Display Configuration Refrigerated top and bottom
Display Area Top and bottom display
Refrigeration Type Fan ventilated
Shelf Quantity 3
Service Type Full service/self-service
Mounting Floor mount
Ends Stainless steel
External Width 78.87 in
External Depth 32.31 in
External Height 55.06 in
Operating Temperature 39°F
Compressor 1 / Hermetic
Cooling Capacity 6,000 BTU at +14°F evaporator temperature
Electrical Supply 208-220V, 1-phase, 60Hz
Power Consumption 2,000W / 10.5A
Defrost Electric
Refrigerant R404A / R452A
Lighting Diffused LED, 3000°K
Glass Front and top glass with front air baffle; heated glass sides; all tempered glass
Back Doors Sliding acrylic
Interior High polished stainless steel with stainless steel lower interior foam tub
Chassis Galvanized
Ventilation Rear ventilation
Front Finish Unfinished front
Side Finish Polished stainless steel skin sides
Net Weight 550 lb
Crated Weight 600 lb

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Documents

PDF Cutsheet PDF Download

Frequently Asked Questions

Yes. The GEM R4 COMBI H2 2000 has refrigerated top and bottom display sections.
Yes. This model uses self-contained refrigeration.
It has three shelves.
The product measures 78.87 inches wide by 32.31 inches deep by 55.06 inches high.
It requires 208-220V, single-phase, 60Hz electrical service and consumes 2,000W at 10.5A.
It uses all tempered glass, with front and top glass, a front air baffle, and heated glass sides.
The case has diffused LED lighting rated at 3000°K.
The listed operating temperature is 39°F.
