Oscartek Gem R4 GEM R4 COMBI 1500NT Combination Display Case, Ambient Top/Refrigerated Bottom, Straight Glass, Stainless Steel Interior

SKU: GEM R4 COMBI 1500NT
$19,427.76

Want to speak to an expert?

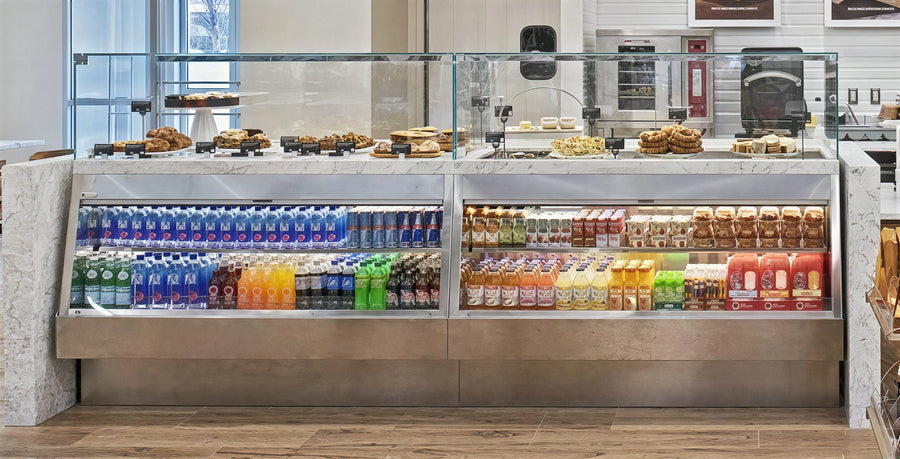

The GEM R4 COMBI 1500NT combines an ambient top display with a refrigerated bottom display in a straight-glass case.

  • Tempered glass front, top, and sides
  • Tempered glass shelf with diffused 3000°K LED lighting
  • Sliding acrylic back doors
  • High-polished stainless steel interior and stainless steel lower interior foam tub
  • Standard unfinished front with polished stainless steel skin sides

Overall Dimensions:

59.19"W x 38.94"D x 48.0"H

Product Weight:

490.0 lb

Ambient and refrigerated sections

The top section is ambient, while the bottom display section is refrigerated.

Straight tempered glass

Tempered glass is used for the front, top, and sides in a straight-glass configuration.

LED display lighting

Diffused 3000°K LED lighting illuminates the display.

Sliding back doors

Sliding acrylic back doors provide operator-side access.

Stainless steel interior

The interior has a high-polished stainless steel finish and a stainless steel lower interior foam tub.

Fan-ventilated refrigeration

The bottom display uses fan-ventilated refrigeration and is listed at 39°F operating temperature.

Standard exterior finish

Cases ship standard with an unfinished front and polished stainless steel skin sides.

Display configuration Ambient top; refrigerated bottom
External dimensions 59 3/16 in W × 38 15/16 in D × 48 in H
Glass Tempered glass front, top, and sides
Shelf Tempered glass
Lighting Diffused 3000°K LED
Back access Sliding acrylic back doors
Interior finish High-polished stainless steel
Lower interior Stainless steel lower interior foam tub
Chassis structure Galvanized
Ventilation Rear ventilation
Refrigeration type Fan ventilated
Refrigerated display area Bottom display
Operating temperature 39°F
Compressor 1 hermetic compressor
BTU rating 5,100 BTU @ +14°F evaporator temperature
Electrical supply 208–220 V / 1 ph / 60 Hz
Power consumption 1,750 W / 8.8 A
Defrost Electric
Climatic class 75°F / 55% RH
Refrigerant gas R404A / R452A
Pipe size Suction 5/8 in; liquid 5/16 in
Net weight 440 lb
Crated weight 490 lb
Standard exterior finish Unfinished front with polished stainless steel skin sides

Certifications & Compliance

Certified badge of ETL Listed
ETL Listed

Frequently Asked Questions

No. The top section is ambient, while the bottom display section is refrigerated.
It uses tempered glass for the straight front, top, sides, and shelf.
The refrigerated bottom display is listed at 39°F.
The case uses 208–220 V, single-phase, 60 Hz electrical service and is rated at 1,750 W and 8.8 A.
The listed certifications are CE, ETL-Sanitation, and cETLus.
