Description

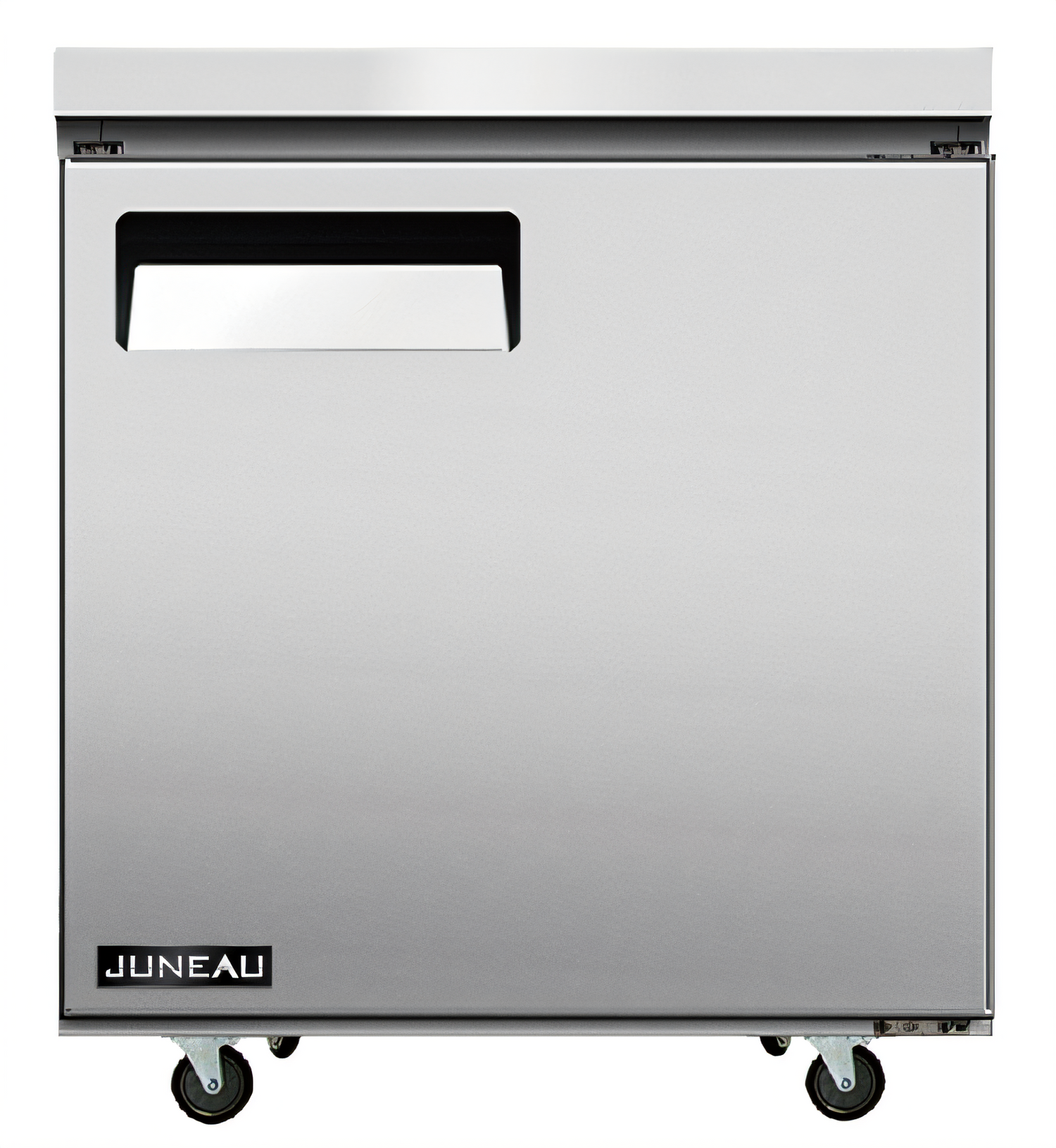

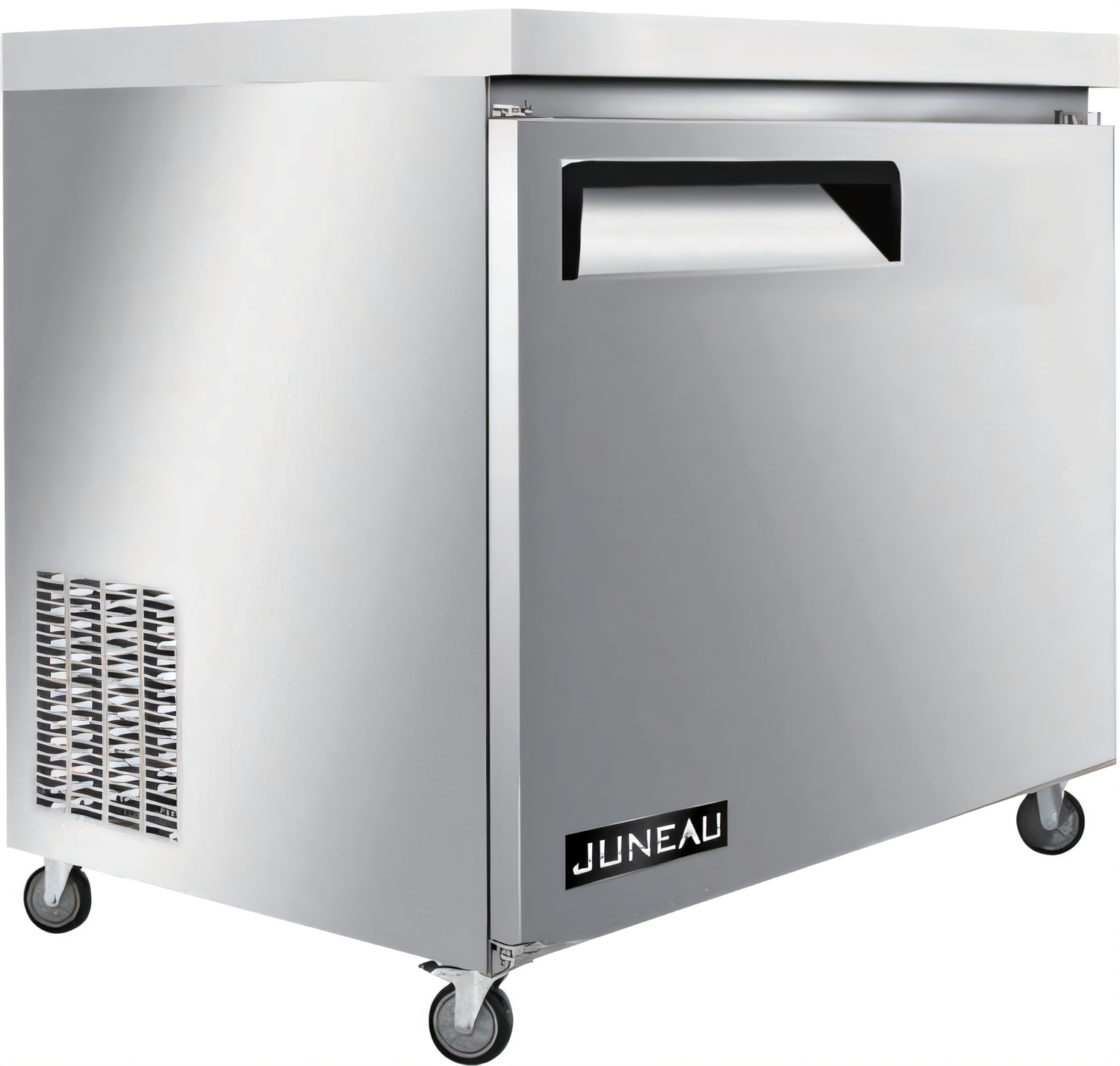

Juneau 27" Undercounter Freezer – 3.4 cu ft

Model FR-TH-0686-HC | Item 58011 | cETLus & ETL-Sanitation

Put powerful frozen storage exactly where you need it. Omcan’s Juneau undercounter freezer slips beneath a standard 36" counter yet delivers rock-solid -8 °F performance, all-stainless durability, and energy-saving R290 refrigeration—perfect for busy kitchens, bars, cafés and food trucks.

Key Features & Benefits

  • -8 °F to 0 °F (-22 °C – -18 °C) holding range for ice cream, fries and backup proteins.
  • Elitech digital controller lets you dial-in temps and toggle °F/°C with a single button.

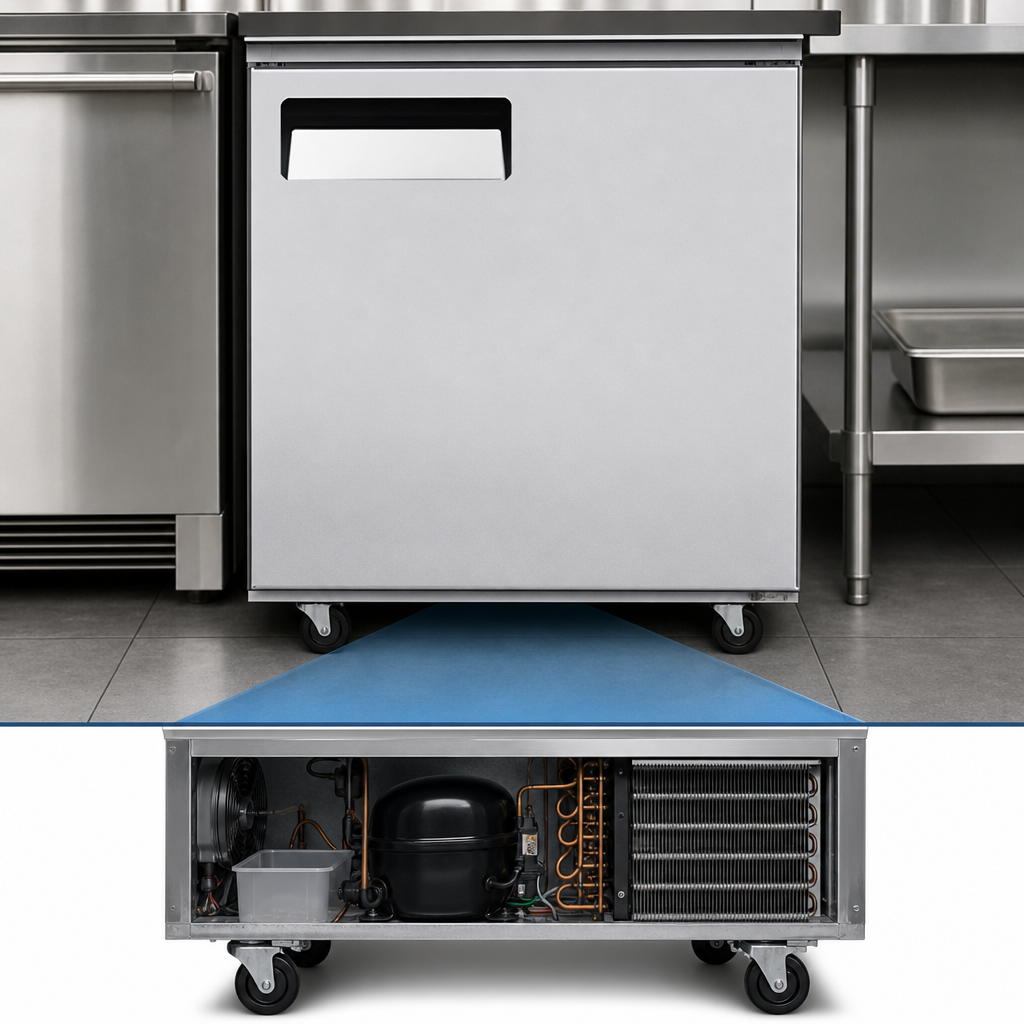

  • Bottom-mounted, self-contained compressor slides out from the front for fast service.
  • High-efficiency, CFC-free R290 hydrocarbon refrigerant cuts energy use and speeds recovery.
  • 304 stainless-steel interior & exterior with sanitary rounded corners wipes clean in seconds.
  • Heavy-duty, PVC-coated shelf adjusts to maximize usable space.
  • Pre-installed 4" swivel casters—two locking—for effortless mobility and easy floor care.

Technical Specifications

Capacity 3.4 cu ft / 95 L
Door Style 1 solid right-hinged door
Shelves 1 adjustable, PVC-coated wire
Temperature Range -8 °F to 0 °F (-22 °C to -18 °C)
Controller Digital Elitech display & keypad
Refrigeration System Bottom-mount, fan-cooled, self-contained
Refrigerant R290 Hydrocarbon
Electrical 115 V / 60 Hz / 1-Ph • 780 W • NEMA 5-15P
Exterior Dimensions (W × D × H) 27.6" × 30.1" × 35.9" (702 × 765 × 913 mm)
Casters 4 × 4" swivel (2 locking)
Construction 304 stainless steel inside & out
Certifications cETLus, ETL-Sanitation
Warranty 2 Years Parts & Labour • 5 Years Compressor

Perfect For

  • Undercounter work-stations & prep lines
  • Bars, cafés, juice shops & coffee kiosks
  • Food trucks and concession stands
  • Backup storage for desserts, sides & cocktail ice

What’s Included

  • Omcan Juneau Undercounter Freezer (FR-TH-0686-HC)
  • 1 adjustable shelf
  • Factory-installed casters & brake kit
  • 6 ft power cord (NEMA 5-15P)
  • Owner’s manual
IMPORTANT: Unit ships on a pallet. Inspect for freight damage before signing and allow the freezer to stand upright for 24 hours prior to initial start-up.

Need a larger size? Ask about Juneau models up to 72" wide.

Features & Specs

Manufacturer

Omcan USA

Brand_name

Juneau

Certifications

cETLus, ETL-Sanitation

Height

35.9in

Width

27.6in

Depth

30.1in

Refrigeration

self-contained, rear mounted

Doors

solid door(s)

Width

24" - 32"

Access Type

doors

Size

1 section

Exterior Finish

all stainless steel exterior

Specifications

(FR-TH-0686-HC) Juneau Undercounter Freezer, reach in, one-section, 27"W, 3.4 cu. ft., bottom mount self-contained refrigeration, -8°F to 0°F (-22°C to 18°C) temperature range, solid hinged door, adjustable shelves, digital temperature controller, stainless steel interior & exterior, (4) casters (2 with brakes), R290 Hydrocarbon refrigerant, 780 watts, 115v/60/1-ph, cETLus, ETL-Sanitation
