Description

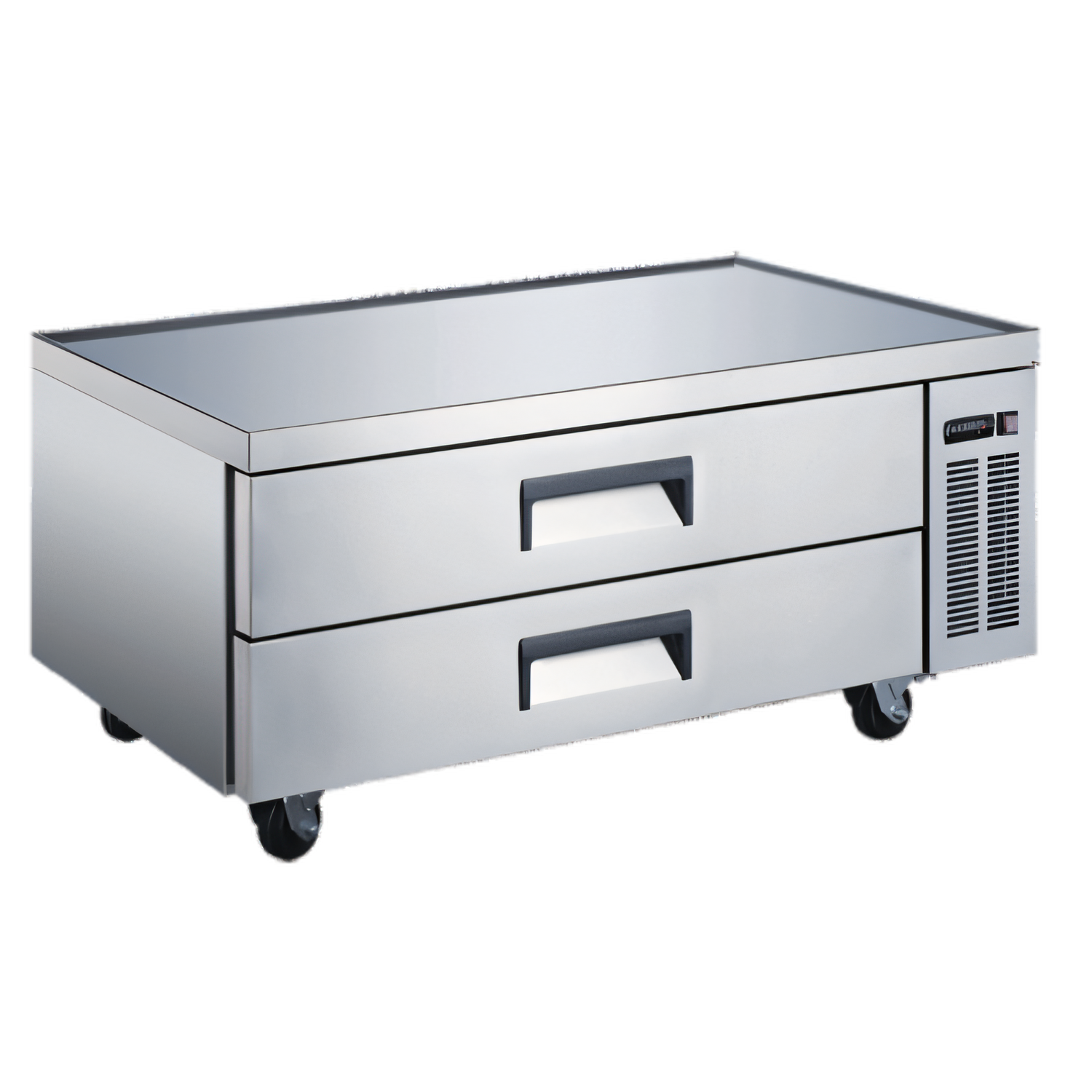

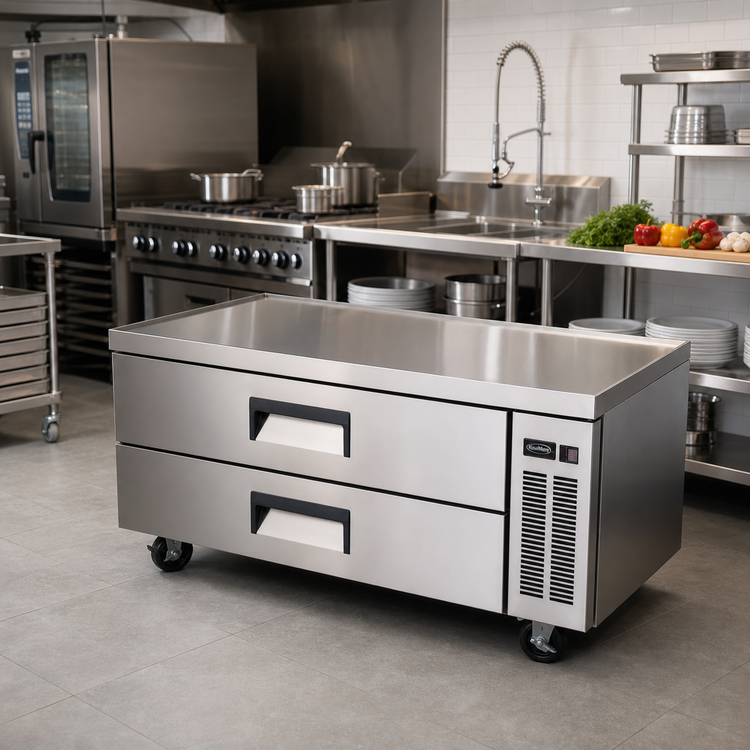

Omcan RE-CN-0052-C Refrigerated Chef Base & Equipment Stand

52" wide • 2-drawer • 33-41 °F holding range

Keep your most-used ingredients ice-cold and right where the action is. The RE-CN-0052-C combines dependable refrigeration with a heavy-duty equipment stand, so you can stage countertop griddles, charbroilers, or induction ranges on top while storing chilled foods in the drawers below. Fewer steps, faster ticket times, and a cleaner line—exactly what a busy kitchen needs.

Why you’ll love it

  • Full 304 stainless-steel interior & exterior with an aluminum-finished back—built for daily commercial abuse.
  • Reinforced top with drip-resistant “V” edge prevents grease and liquid run-off onto the floor.

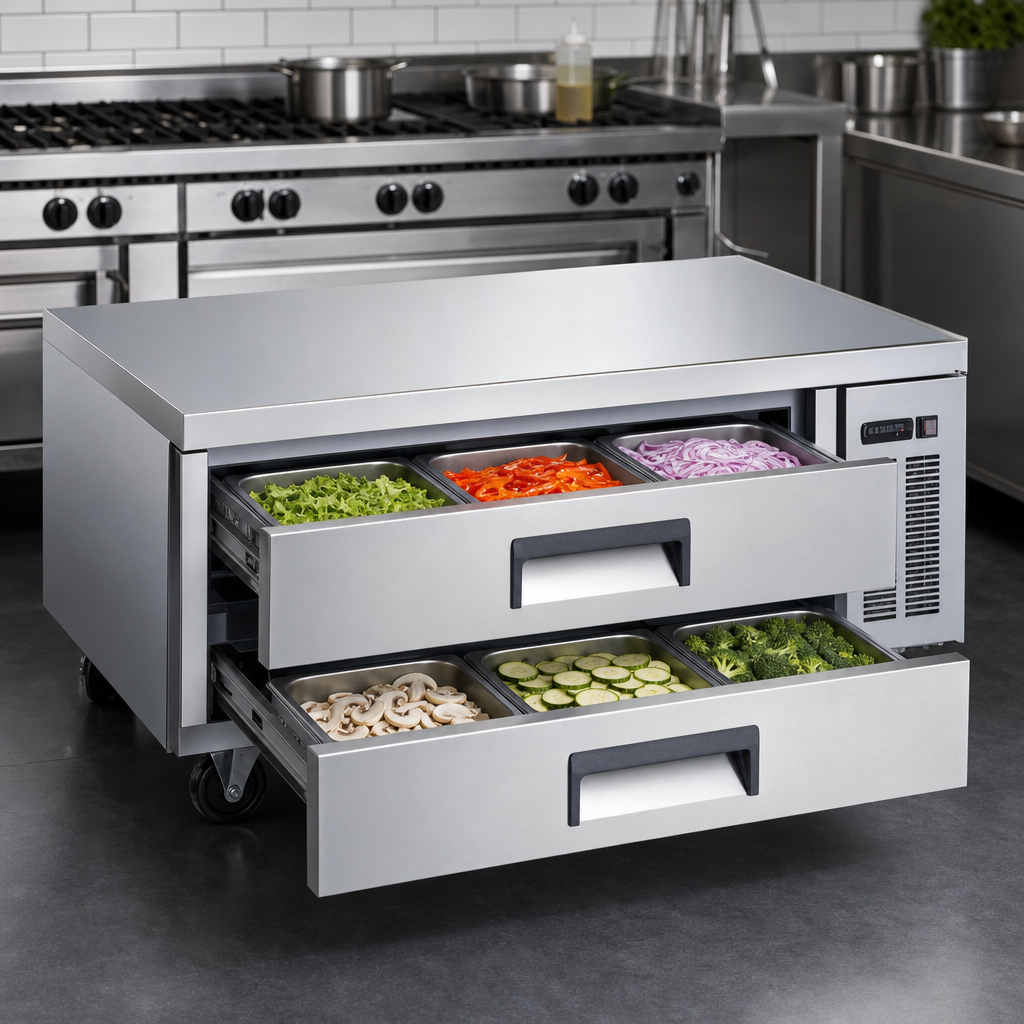

  • Two smooth-glide drawers, each holding 3 full-size 12 × 20 × 4" pans (pans not included).
  • Side-mounted, self-contained refrigeration system maintains 33 – 41 °F  (0.5 – 5 °C) for safe cold-food holding.
  • Intuitive electronic controller for precise temperature & automatic defrost scheduling.
  • Heavy-duty casters (front locking) make line cleaning and service access effortless.
  • Environmentally friendly R290 hydrocarbon refrigerant meets the latest efficiency standards.
  • cETLus & ETL-Sanitation listed for electrical & food safety compliance in North America.
  • Backed by a 2-year parts & labour warranty plus 5-year compressor coverage.

Technical specifications

Model / Item # RE-CN-0052-C / 50071
External dimensions (W × D × H) 52" × 32" × 25" (1318 × 816 × 644 mm)
Storage capacity 9.1 cu.ft. (258 L)
Number of drawers 2
Pan capacity (each drawer) 3 full-size GN 1/1 pans, 4" deep
Temperature range 33 – 41 °F (0.5 – 5 °C)
Refrigerant / Compressor R290 / 1⁄4 HP
Electrical 110 V, 60 Hz, 1-phase, 2.9 A, NEMA 5-15P plug (cord included)
Casters (4) heavy-duty swivel, front locking
Net weight 209 lb (95 kg)
Certifications cETLus, ETL-Sanitation
Shipping Ships on a pallet, freight class 92.5
R290 notice: This unit uses hydrocarbon refrigerant. Handle and service only in well-ventilated areas and keep away from open flames.

Capacity based on standard 4"-deep pans, which are not included.
Specifications and design are subject to change without notice.

Features & Specs

Manufacturer

Omcan USA

Certifications

cETLus, ETL-Sanitation

Height

25.0in

Width

52.0in

Depth

32.0in

Shipping Weight

253.5lbs

Compressor HP

1/4 HP

Top Finish

stainless steel top

Refrigeration

self-contained, side mounted

Drawer Qty

2 drawers

Exterior Finish

stainless steel & aluminum exterior

Width

49" - 60" wide

Specifications

(RE-CN-0052-C) Refrigerated Chef Base/Equipment Stand, 52" W, 34 cu. ft. (960L), (2) drawers - each holds (3) full size pans, side mount self-contained refrigeration, 33°F to 41°F (0.5°C to 5°C) temperature range, heavy duty casters, 304 stainless steel interior & exterior with aluminum finished back, 1/4 Hp, R290 Hydrocarbon refrigerant, cord, NEMA 5-15P, 2.9 amps, 110v/60/1-ph, cETLus, ETL-Sanitation (shipped on pallet)
