Description

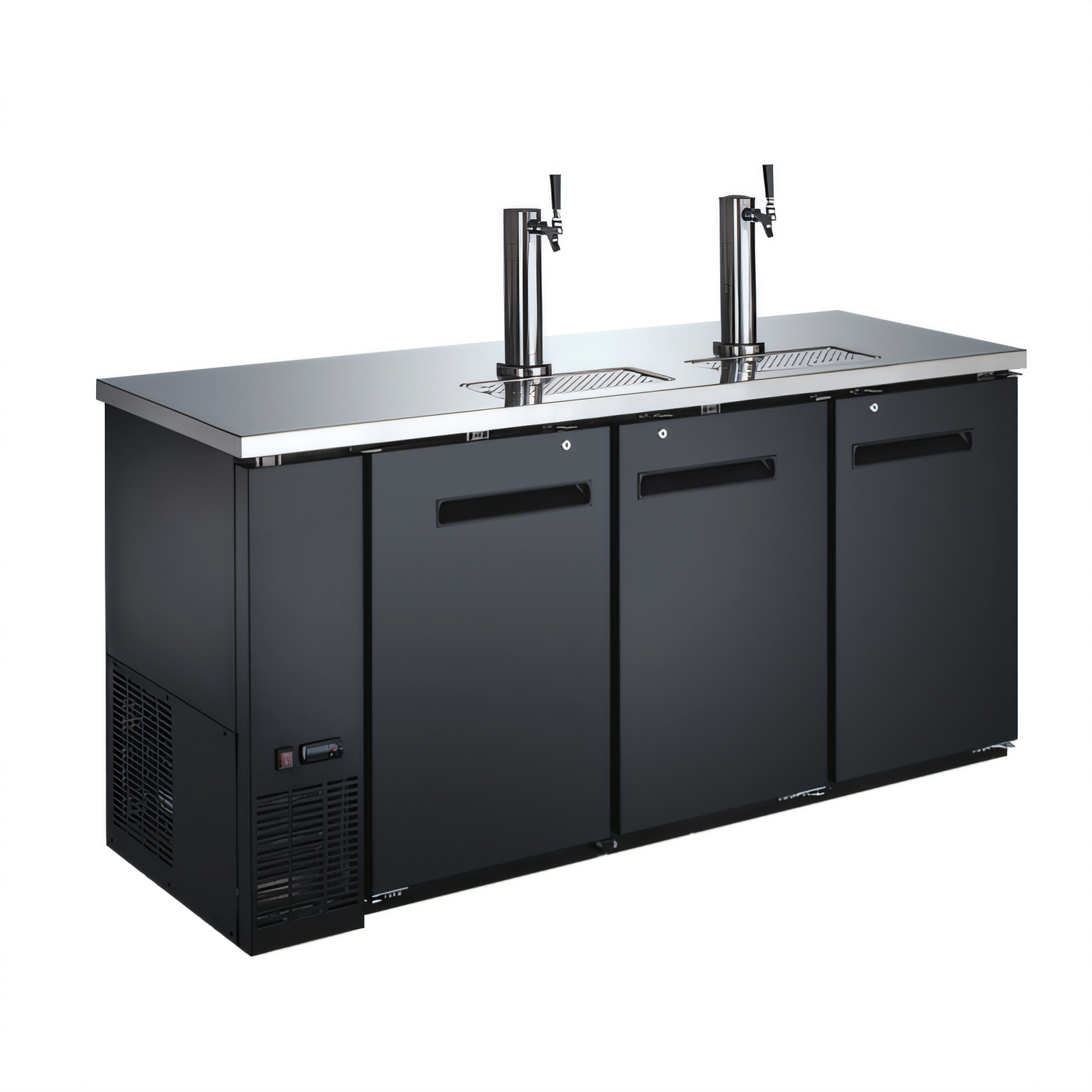

Omcan BB-CN-0020-DH Draft Beer Cooler / Kegerator

73" wide • 2-tap tower • 3-door • 19.6 cu.ft. (556 L)

Pour perfect pints every time with Omcan’s three-section BB-CN-0020-DH kegerator. Engineered for bars, taprooms, clubs, and catered events, it chills up to three half-barrel kegs between 33 °F and 41 °F (0.5 °C – 5 °C) while the twin draft tower keeps the beer flowing fast.

Performance & Convenience

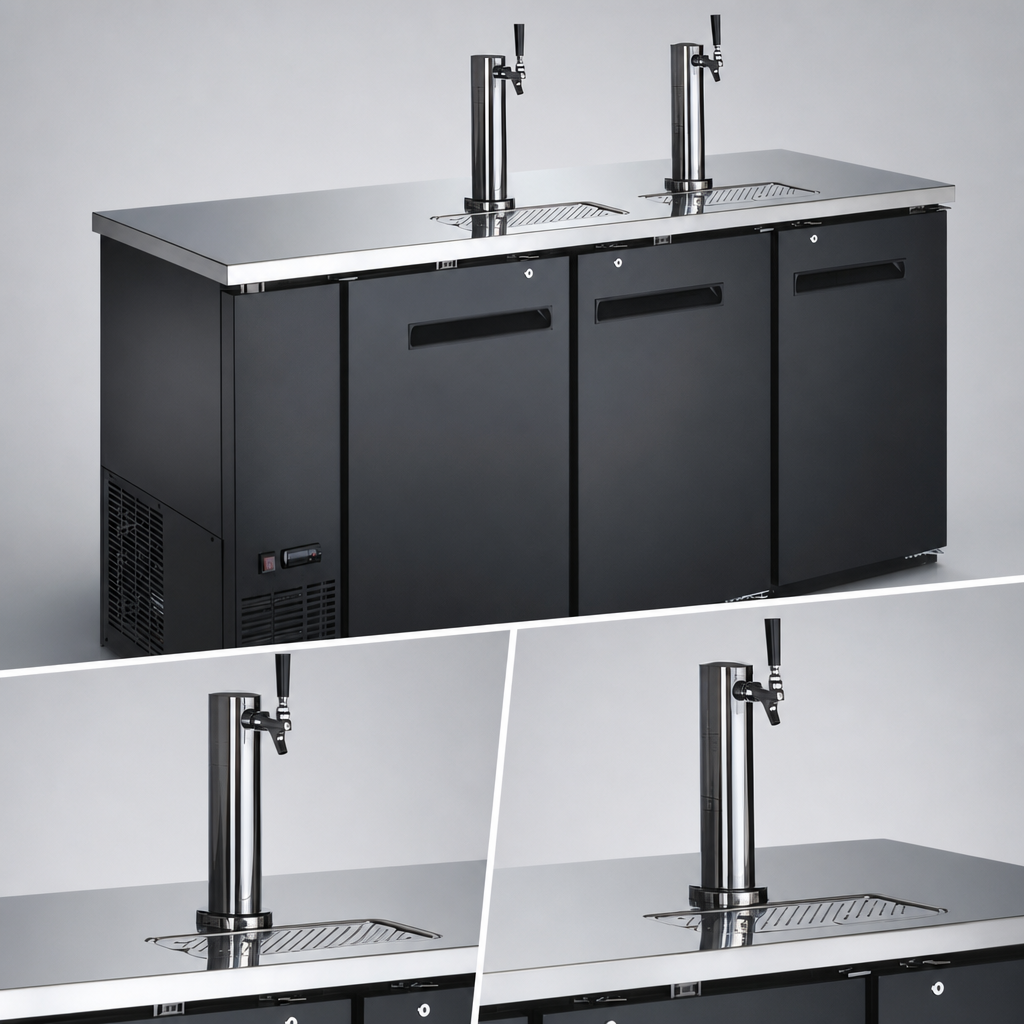

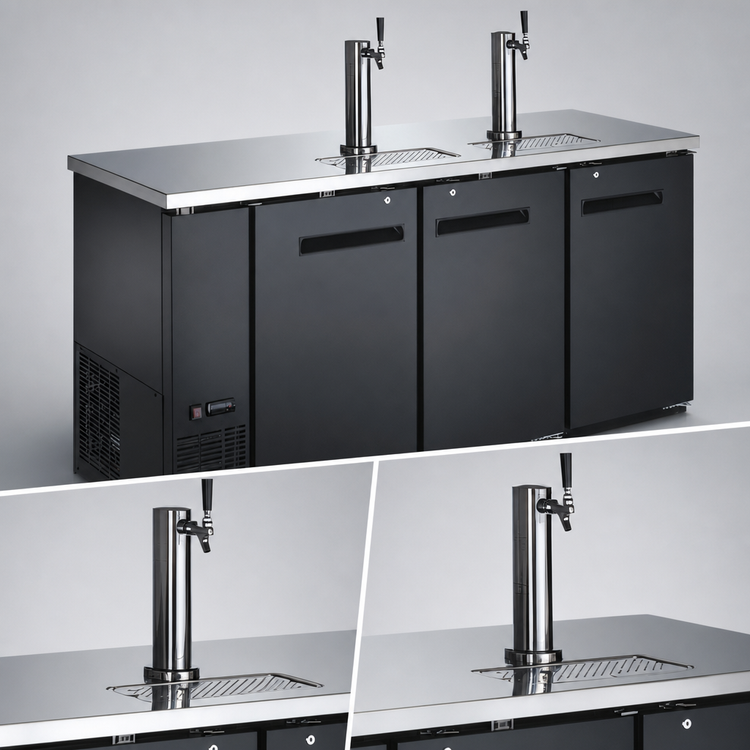

  • Two 3" Ø stainless steel draft dispensers for simultaneous service
  • 1/4 HP forced-air refrigeration with energy-saving R290 hydrocarbon refrigerant
  • Mechanical thermostat holds product safely between 33 °F – 41 °F
  • LED interior lighting showcases kegs and bottled product without added heat
  • Removable rear installation board for quick condenser access during cleaning or service
Built to Last
  • Heavy-duty wear-resistant black vinyl-coated steel exterior
  • All-stainless countertop, interior walls, ceiling & coved floor
  • Three self-closing solid doors with built-in locks to secure inventory
  • Six height-adjustable PVC-coated shelves for mixed storage when kegs are not in use
Technical Specifications
Model / Item # BB-CN-0020-DH / 50065

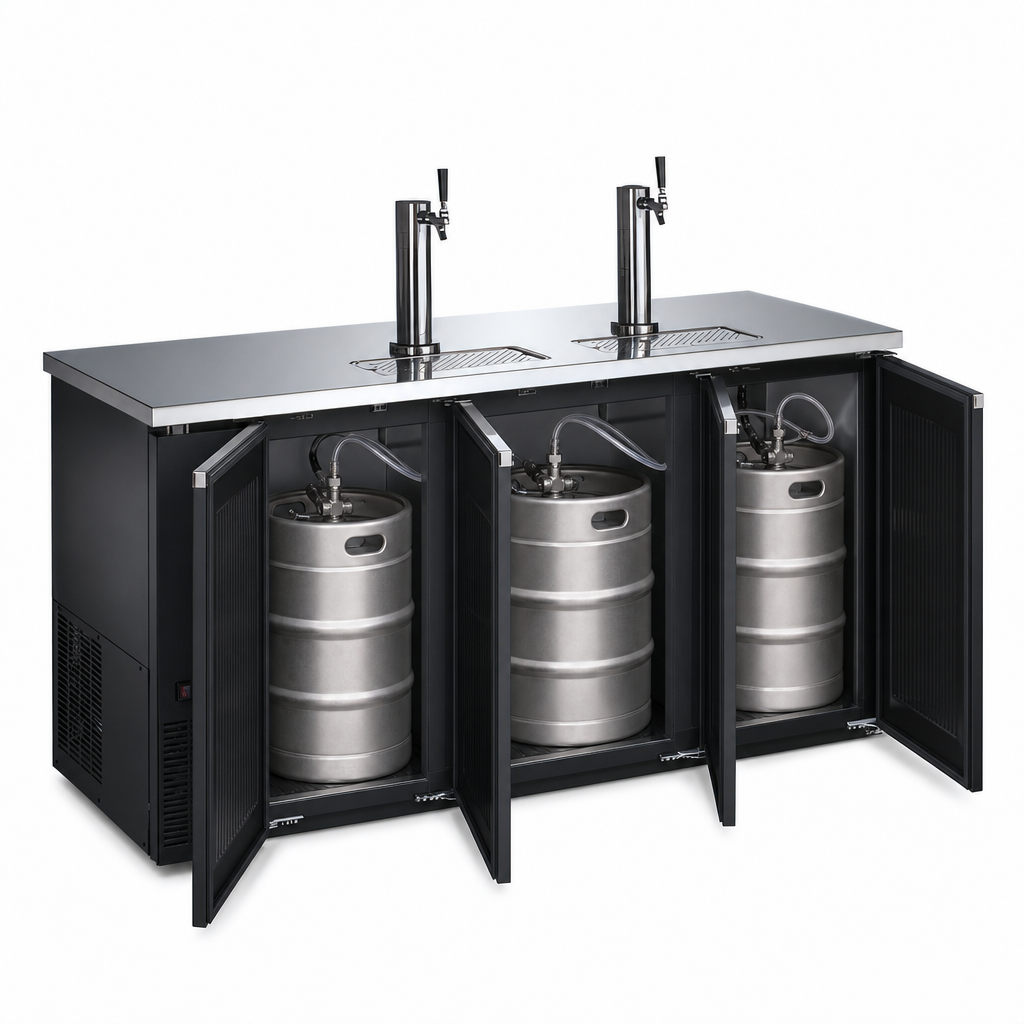

Capacity 19.6 cu.ft. (556 L) – holds (3) ½-barrel kegs
Tap Tower 2 dispensers, 3" Ø stainless steel
Temperature Range 33 °F – 41 °F (0.5 °C – 5 °C)
Doors / Shelves (3) self-closing doors with locks | (6) adjustable shelves
Refrigerant Eco-friendly R290
Compressor 1/4 HP, forced air
Electrical 115 V / 60 Hz / 1-Ph, 4.0 A, NEMA 5-15P cord & plug
Interior (W×D×H) 60.2" × 18.5" × 29" (1529 × 467 × 737 mm)
Overall (W×D×H) 72.8" × 24" × 51.5" (1849 × 610 × 1308 mm)
Net / Ship Weight 331 lb (150 kg) | 385 lb (175 kg)
Certifications cETLus, ETL-Sanitation, NSF
Warranty

Backed by Omcan’s 2-year parts & labour warranty plus 5-year compressor coverage for total peace of mind.

CO2 tank, regulator, keg couplers, and tap handles sold separately.

Freight notice: Unit ships on a pallet. Inspect for external and concealed damage before signing the delivery receipt.

Features & Specs

Manufacturer

Omcan USA

Certifications

NSF, cETLus, ETL-Sanitation

Height

51.5in

Width

72.8in

Depth

24.4in

Shipping Weight

330.0lbs

Top Style

flat top

Keg Capacity

3 - 4 kegs

Exterior Finish

all black exterior

Width

60" - 72"

Barrel Style

1/2 barrel (full keg)

Faucet Qty

1 faucet per column

Column Qty

2 columns / towers

Specifications

(BB-CN-0020-DH) Draft Beer Cooler/Kegerator, with (2) dispensers, three-section, 73"W, 19.6 cu. ft. (556 liters), (3) 1/2 kegs capacity, 33°F to 41°F (0.5°C to 5°C) temperature range, LED lights, removable installation board, (3) self-closing solid doors with lock & key, (6) adjustable PVC coated shelves, stainless steel countertop, interior floor & walls, heavy-duty wear-resistant black coating paint exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 196kW, 115v/60/1-ph, 4.0 amps, cord, NEMA 5-15P, cETLus, ETL-Sanitation, NSF (shipped on pallet)
